Lunatone sensor DALI-2 CS Integration THP AQ, PIR 12m, RAL9016 traffic white – 86457786-INT-AQ-W16
Shipping in 14 day(s)
€121.73
Prices incl. VAT plus shipping costs net €102.29
Product information "Lunatone sensor DALI-2 CS Integration THP AQ, PIR 12m, RAL9016 traffic white – 86457786-INT-AQ-W16"
DALI-2 motion sensor 12m, constant light control, temperature, humidity, air pressure, air quality, for Integration with central control units, RAL9016, standard mounting holes
DALI-2 CS Integration THP-AQ
for integration in systems with central control units sensor for motion, light, temperature, relative humidity, air pressure and air quality
Compact sensor module for DALI-2 systems with motion detection (PIR), light intensity, temperature, relative humidity, air pressure and air quality measurement. The module gathers measurements for the building management system (instance mode) – (DALI-2 CS Master, WAGO, Beckhoff, etc.). The measured values can either be queried or they can automatically trigger events. This functionality is implemented via DALI-2 instances. The DALI-2 CS Integration can be set accordingly in the DALI Cockpit Software.
Multiple sensors within one group will synchronise automatically. The device is powered directly by the DALI bus.

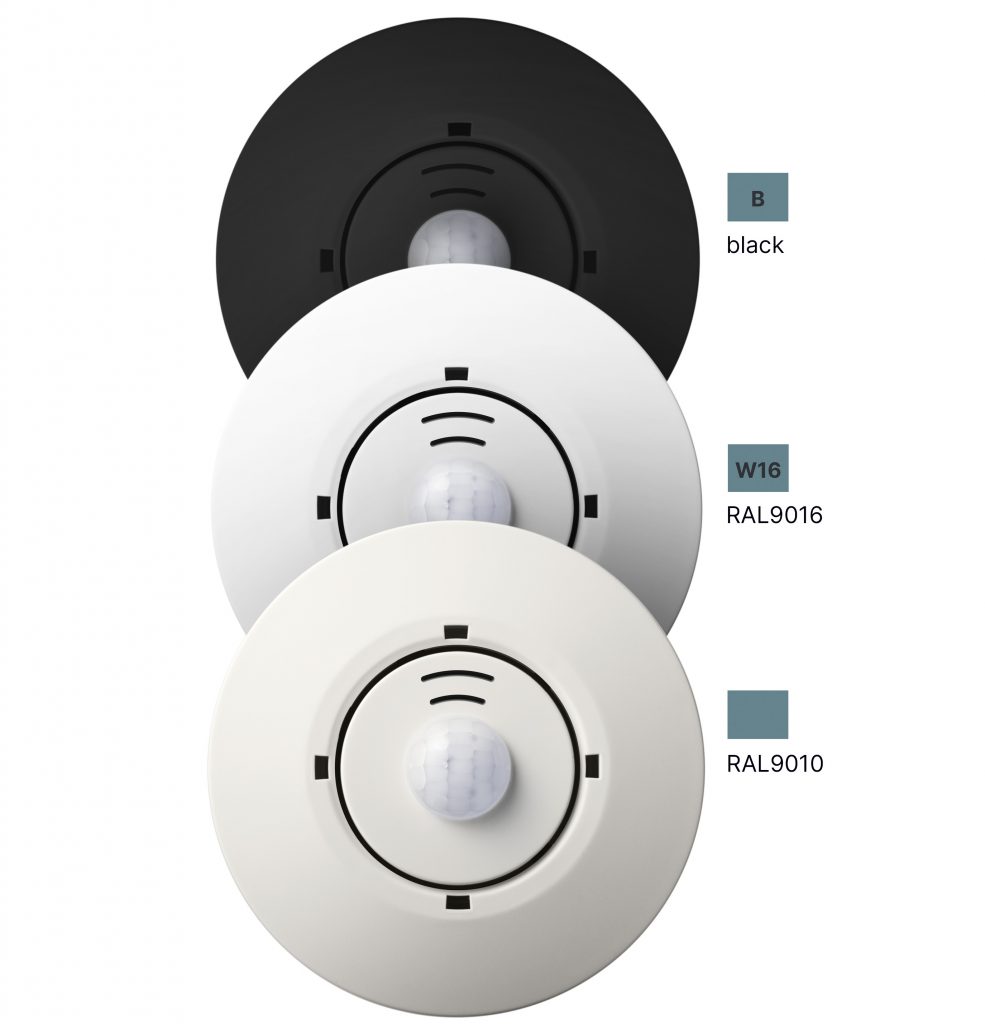

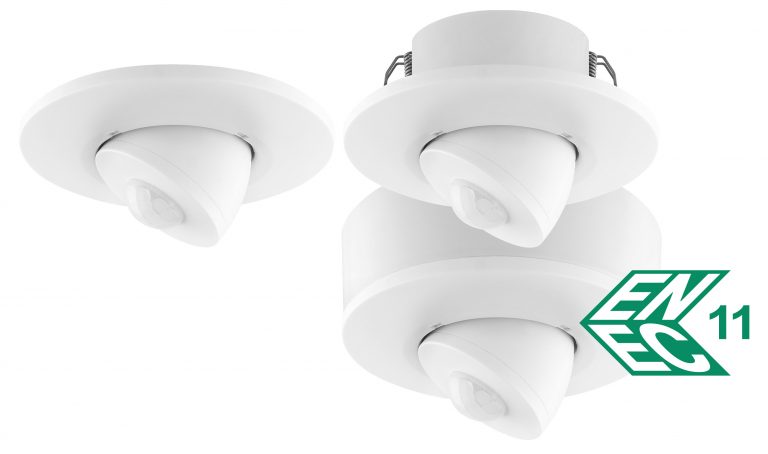

DALI-2 CS Integration THP-AQ is available in three different housings: for direct mounting on cavity walls or installation boxes (standard), for suspended ceilings (with spring), or for surface mounting (with backbox). The alignment of the sensor head is very simple using the turning and swivel head. Available housing colours are pure white RAL 9010, traffic white RAL 9016 (-W16) or black (-B). Factory setting: On delivery all instance events are active. Usage with a DALI-2 CS is possible without further configuration by assigning the devices to the DALI-2 CS Master.
Downloads & Documents
Electrical data
conformity: | CE |
---|
Casing
ballproof: | no |
---|---|
fire protection: | no |
form type: | round |
protection type: | IP20 |
material: | plastic |
mounting: | mounting holes |
protection class: | II |
environment temperature from: | -20 °C |
environment temperature to: | 60 °C |
Photometric data
sensor: | yes |
---|---|
color: | white |
interface: | DALI-2 |
sensor type: | passive infrared |
solar panel: | no |
Dimensions & packaging
EAN | 9010342013546 |
---|---|
Length | 98 mm |
Width | 98 mm |
Height | 18 mm |
Weight | 67 g |
