Lunatone sensor DALI-2 CS Mini – 86457244
Product information "Lunatone sensor DALI-2 CS Mini – 86457244"

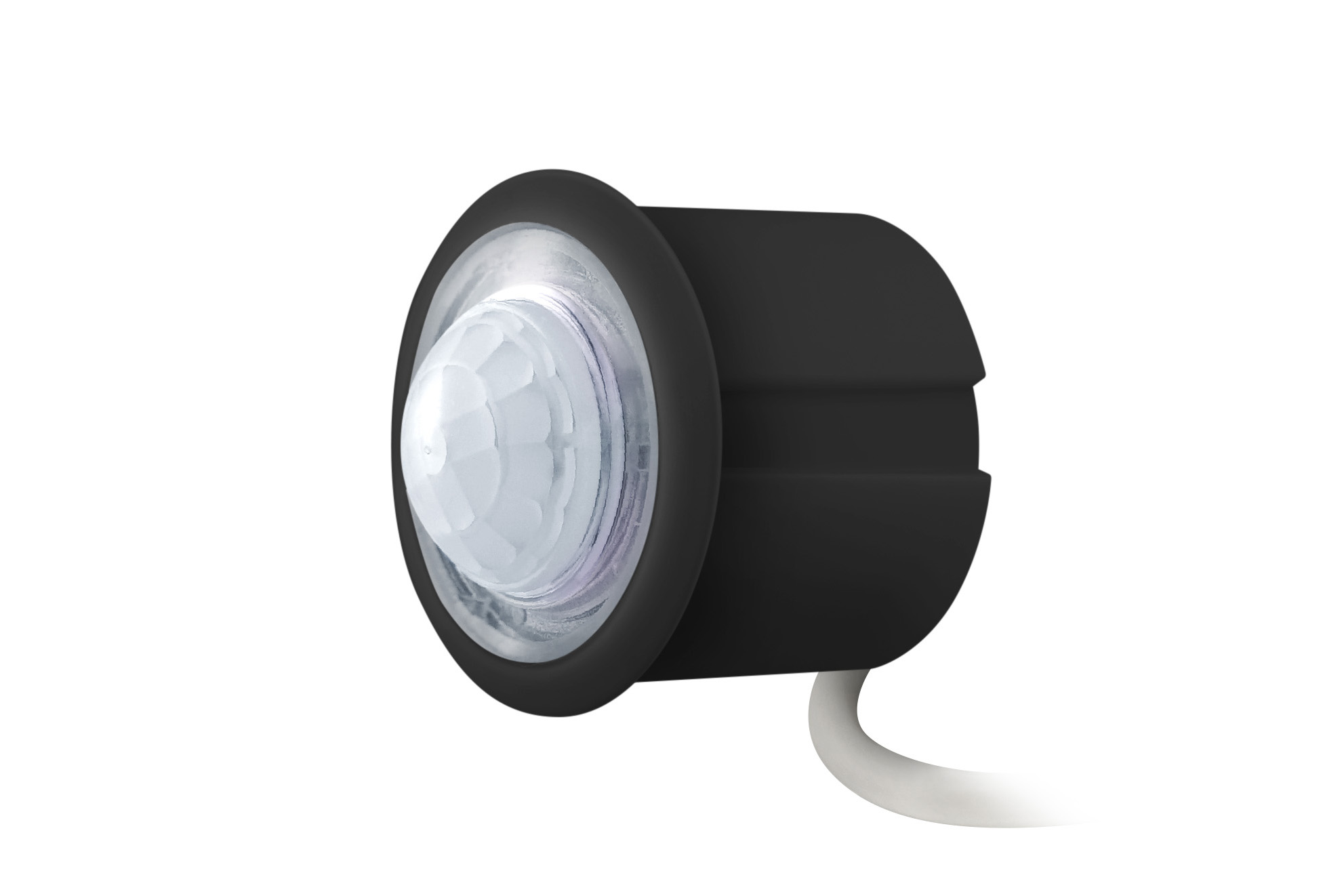

Compact sensor module with integrated motion detection (PIR), light intensity measurement and light control unit.In addition to the standard detection in the outer area, DALI-2 CS Mini has a more sensitive inner detection area for the detection of minor movements.DALI-2 CS Mini can be configured with the DALI Cockpit Software to send various DALI commands upon motion detection to either the entire DALI system, groups or individual addresses.The module also contains a light sensor to deactivate motion detection when there is sufficient lighting. Activating the integrated light control unit enables DALI constant light control in a simple manner.Several sensors can be used in a group; the sensors are synchronised automatically.The device is powered directly by the DALI bus.It is available in two different versions: for indoor and outdoor use (IP65), as well as two different colors: black and white (RAL9016)
Downloads & Documents
Login
Electrical data
| conformity: | CE |
|---|
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | round |
| material: | plastic |
| mounting: | mounting holes |
| environment temperature from: | -20 °C |
| environment temperature to: | 60 °C |
Photometric data
| sensor: | yes |
|---|---|
| color: | black |
| interface: | DALI |
| sensor type: | passive infrared |
| solar panel: | no |
Dimensions & packaging
| EAN | 9010342013546 |
|---|---|
| Length | 283 mm |
| Width | 283 mm |
| Height | 27 mm |
| Weight | 67 g |
