Adels Contact Plug Socket AC 164 BUF/5 white - 147455
Immediately available
€3.31
Prices incl. VAT plus shipping costs net €2.78
Product information "Adels Contact Plug Socket AC 164 BUF/5 white - 147455"
Connector for 5-pin connection wires

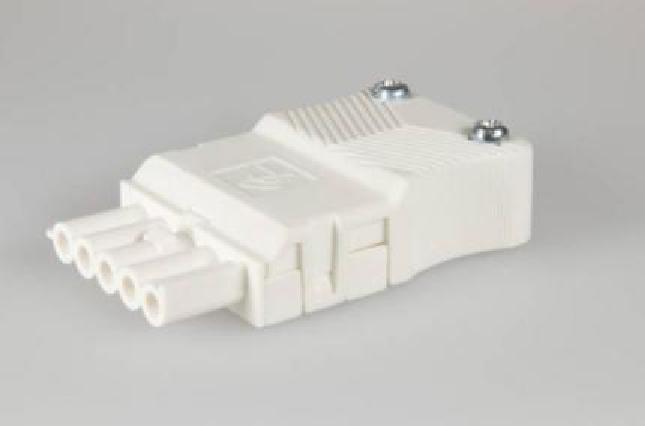

The white contact socket plug for 5-pin connection wires from Adels serves as socket version for screw mounting. It has a nominal cross-section of 1.5 mm2 and a cable diameter of 6.5 mm (min.) / 11.5 mm (max.). The nominal voltage is 240/400 V; the nominal current 16.0 A.
IP20 / IP40 protection

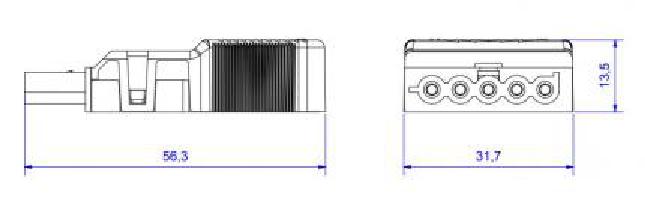

The flat connector has the dimensions 56 x 32 x 14 mm. It has IP20 protection and, when plugged in, IP40 protection.
Downloads & Documents
Konformitaetserklaerung-Adels-Contact-Steckerbuchse-AC-164-BUF-5-weiss-147455_1592158621_2
Montageanleitung-Adels-Contact-Steckerbuchse-AC-164-BUF-5-weiss-147455_1592158621_4
Certificate-VDE-Adels-Contact-Plug-Socket-AC-164-BUF-5-white-147455_1592158621_5
Certificate-UL-Adels-Contact-Plug-Socket-AC-164-BUF-5-white-147455_1592158621_6
Installation-instructions-Adels-Contact-Plug-Socket-AC-164-BUF-5-white-147455_1592158621_7
Zertifikat-UL-Adels-Contact-Steckerbuchse-AC-164-BUF-5-weiss-147455_1592158621_8
Datasheet-Adels-Contact-Plug-Socket-AC-164-BUF-5-white-147455_1592158621_9
Login
Electrical data
| operating frequency: | 0/50-60 Hz |
|---|---|
| rated voltage: | 240/400 V |
| terminal type: | screw terminal |
Casing
| ballproof: | no |
|---|---|
| fire protection: | V2 |
| form type: | linear |
| max housing temperature (tc-max): | 70 °C |
| protection type: | IP20/40 |
| material: | brass |
| mounting: | universal mounting |
| environment temperature to: | 70 °C |
Photometric data
| sensor: | no |
|---|---|
| dimmable: | no |
| color: | white |
| inclusive lamp: | no |
| sensor type: | no |
Logistic data
| item category: | installation materials |
|---|
Dimensions & packaging
| EAN | 4028012117291 |
|---|---|
| Length | 56 mm |
| Width | 32 mm |
| Height | 14 mm |
