BAG EVG BCD39.1F-01/220-240/1-10V - 10097246
Immediately available
€36.44
(34% saved)
€23.80
Content:
1 Stück
Prices incl. VAT plus shipping costs net €20.00
Product information "BAG EVG BCD39.1F-01/220-240/1-10V - 10097246"

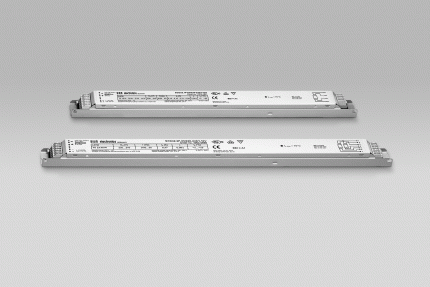

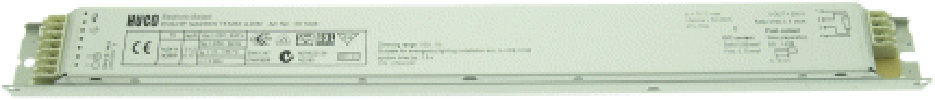

Electronic control gears ECG for fluorescent lamps
- Dimming interface: 1–10 V
- Dimming range 1...100% luminous flux
- Energy controlled, electrode preserving lamp warm start for maximum lamp life irrespective of switching frequency; starting time < 1,5 s
- Cut-Off technology at 100% luminous flux: minimised heat current through electrodes during operation, for optimum light output and reduced power loss.
- Automatic restart after lamp replacement
- Safety switch-off in case of abnormal lamp operation, e. g. defective electrode and end of lamp life; tested acc. to EN 61347-2-3
- Suitable for direct current operation and emergency lighting installations; complies with requirements for emergency lighting according to EN 61347- 2-3/J
- Energy efficiency index EEI=A1
- Nominal service life: 50.000 h with failure rate of ≤ 10% and operation at tc=tc,max
Downloads & Documents
Login
Electrical data
| number of channels: | 1 |
|---|---|
| energy efficiency index: | A1 |
| rated voltage: | 220-240 V |
| lifetime: | 50000 h |
Casing
| form type: | linear |
|---|---|
| max housing temperature (tc-max): | 75 °C |
| protection type: | IP20 |
| environment temperature from: | 5 °C |
| environment temperature to: | 55 °C |
Photometric data
| interface: | 1-10 V |
|---|
Logistic data
| item category: | light management |
|---|
Dimensions & packaging
| Length | 360 mm |
|---|---|
| Width | 30 mm |
| Height | 21 mm |
| Weight | 246 g |
