Brumberg LED converter 350mA, Casambi Dimmbar – 17672010 – 425143926696 - 17672010
Brumberg LED converter 350mA, Casambi Dimmbar – 17672010 – 425143926696 - 17672010
Shipping in 7 day(s)
€167.00
Prices incl. VAT plus shipping costs net €140.34
Product information "Brumberg LED converter 350mA, Casambi Dimmbar – 17672010 – 425143926696 - 17672010"

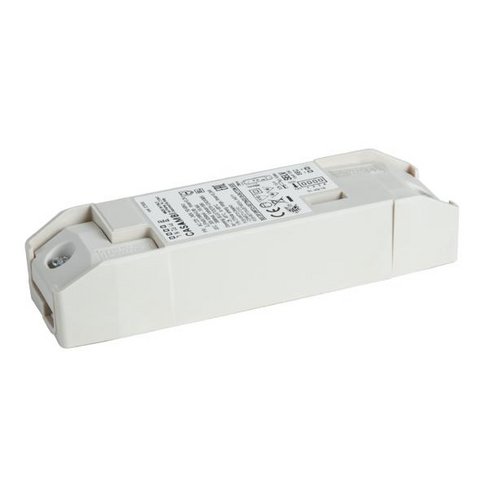

LED converter 350mA, Casambi dimmable
This control gear meets the requirements for safety lighting systems according to DIN EN 50172 VDE 0108-100:2005-01.This converter is protected by fuses against overvoltage and short circuit as well as thermal and electrical overload. The input and output terminals are suitable for cables with a cross-section of up to 1.5 mm². Material: plastic, protection class: according to DIN EN 60529: IP20, protection class: (EN 61140) II, voltage: 230V AC 50Hz, power: 18W, dimmable: yes, type of dimming: Casambi.
Downloads & Documents
Electrical data
| operating frequency: | 50-60 Hz |
|---|---|
| through wiring: | no |
| rated voltage: | 220-240 V |
| conformity: | CE |
| system power: | 18 |
Casing
| ballproof: | no |
|---|---|
| form type: | linear |
| max housing temperature (tc-max): | 80 °C |
| protection type: | IP20 |
| material: | plastic |
| mounting: | universal mounting |
| protection class: | II |
| environment temperature from: | -25 °C |
| environment temperature to: | 45 °C |
Photometric data
| sensor: | no |
|---|---|
| dimmable: | yes |
| color: | white |
| lamp type: | LED |
| inclusive lamp: | no |
| interface: | Casambi |
| solar panel: | no |
Dimensions & packaging
| Length | 30 mm |
|---|---|
| Width | 44 mm |
| Height | 30 mm |
| Weight | 198 g |
