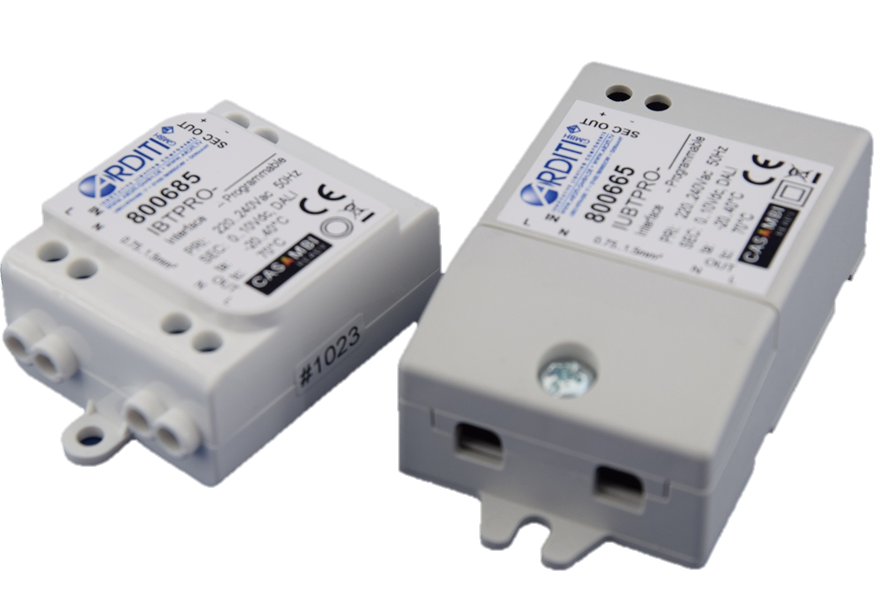

Casambi interface IUBTPRO ASD SK2 - 800665
Product information "Casambi interface IUBTPRO ASD SK2 - 800665"
- Interface for convenient control of LED power supplies with DALI or 0-10 V signal input using a tablet or smartphone (Apple, Android) with the CASAMBI app
- Sends DALI broadcast (1 CH), to DALI address 0..3 (multi-channel) and 0..10 Vdc at SEC OUT
- Configuration of the other interface types possible before coupling to the network: Change profile
- Use of the switched mains output depending on the selected profile. The use of the switched mains output is only permitted with relays!
- 0-10V: Total shutdown via relay

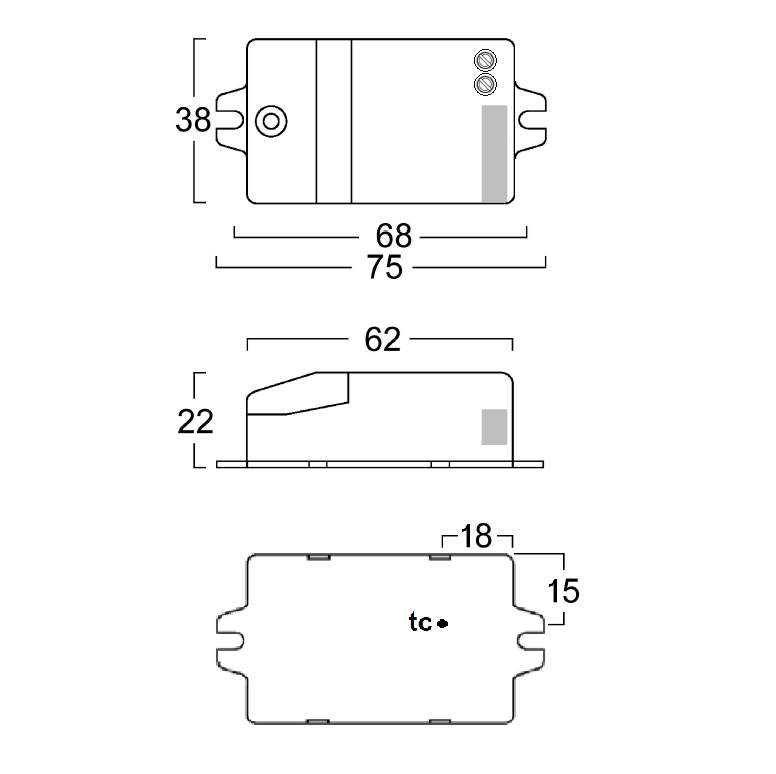

- Integrated antenna (drawing: gray area, do not cover with metal housing)
- In installation housing or SK2 housing
Downloads & Documents
Login
Electrical data
| rated voltage: | 200-240 V |
|---|
Casing
| form type: | rectangular |
|---|---|
| max housing temperature (tc-max): | 70 °C |
| environment temperature from: | -20 °C |
| environment temperature to: | 40 °C |
Photometric data
| color: | white |
|---|
Dimensions & packaging
| Length | 75 mm |
|---|---|
| Width | 38 mm |
| Height | 22 mm |
