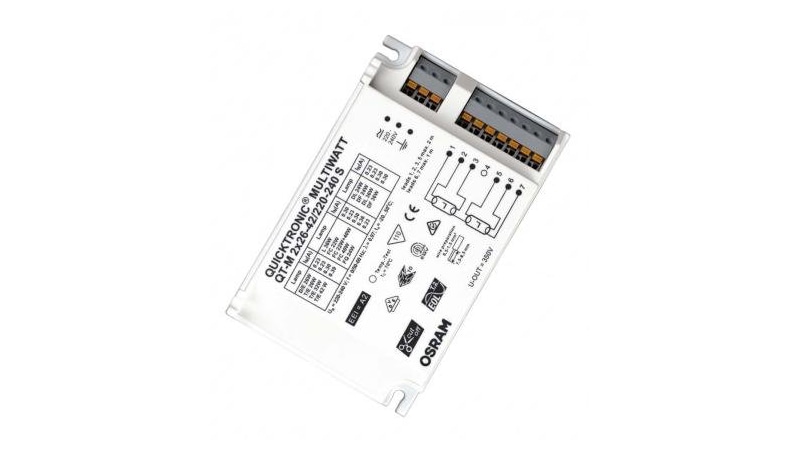

ECG-FL OSRAM QT-M 2X26-42/220-240 S - 4008321110022
ECG-FL OSRAM QT-M 2X26-42/220-240 S - 4008321110022
Immediately available
Alternative Products
Shipping in 28 day(s)
€55.37
Prices incl. VAT plus shipping costs net €46.53
Product information "ECG-FL OSRAM QT-M 2X26-42/220-240 S - 4008321110022"
Product advantages
- Long lamp life
- High switching stability
- Automatic restart after lamp replacement
- Perfect lamp warm start for motion detector applications
- Independent installations due to optional cable clamp for K2 and K3 housings
- VDE/VDE EMC certified system
- Supply voltage: 220...240 V
- Mains voltage: 198...264 V
- Mains frequency: 0 Hz | 50 Hz | 60 Hz
- Lamp start with optimal filament preheating
- Energy efficiency index EEI: A2
- Automatic safety shutdown in case of lamp failure and at lamp end of life (EoL T.2)
- Lamp operation: according to EN 60929
- Safety: according to EN 61347-2-3
- Emergency lighting systems according to EN 50172 / DIN VDE
- 0108-100
- Public buildings
- Sports halls and factories
- Suitable for luminaires of protection class I
Downloads & Documents
Login
Electrical data
| operating voltage: | 220-240 V |
|---|---|
| energy efficiency index: | A2 |
| rated voltage: | 220-240 V |
| lifetime: | 50000 h |
Casing
| form type: | rectangular |
|---|---|
| protection type: | IP20 |
| mounting: | Installation |
| protection class: | I/II |
| environment temperature from: | -20 °C |
| environment temperature to: | 50 °C |
Photometric data
| dimmable: | no |
|---|---|
| color: | white |
Logistic data
| item category: | electronic ballasts |
|---|
Dimensions & packaging
| EAN | 4008321110022 |
|---|---|
| Length | 123 mm |
| Width | 79 mm |
| Height | 33 mm |
| Weight | 280 g |
