Electro Terminal Connecting terminal SDKF 5 TR-AN - 900567
Electro Terminal GmbH & Co. KG
Electro Terminal Connecting terminal SDKF 5 TR-AN - 900567
Product number:
900567
Immediately available
€0.52
(23% saved)
€0.40
Content:
1 Stück
Prices incl. VAT plus shipping costs net €0.34
Product information "Electro Terminal Connecting terminal SDKF 5 TR-AN - 900567"
The perfect all-round terminal for professional electrical use. The all-round terminal SDKF5 made by Electro-Terminal (previously Tridonic) resembles the classic, the connection terminal WAGO 222-415, very much, but better it:
You don't have to stretch the small terminals with the even smaller clamp on the wobbly ledder, to arrange the cable in the right open channel and latch it in the end, in the hope that you chose the right clamp before any longer (where nearly everybody pinches the finger very painful by latching).
Electro Terminal proves with the all-round terminal SDKF5: it is possible to do it faster and without pain. Just put the cable in. Done. No stretching of the clamp, no latching, no finger pinches. Just put it in.
If you want to unlock the cable (pulling only isn't enough): stretch the clamp. But don't be afraid: You won't pinch your fingers by latching.
Also the technical features of the all-round terminal SDKF5 is nothing to sneeze it:
You would like to check with an charge indocator if there is power? No problem. Compared with the terminal WAGO 222 the charge indicator don't get stuck in the Electro Terminal SDKF5.
You don't have to stretch the small terminals with the even smaller clamp on the wobbly ledder, to arrange the cable in the right open channel and latch it in the end, in the hope that you chose the right clamp before any longer (where nearly everybody pinches the finger very painful by latching).
Electro Terminal proves with the all-round terminal SDKF5: it is possible to do it faster and without pain. Just put the cable in. Done. No stretching of the clamp, no latching, no finger pinches. Just put it in.
If you want to unlock the cable (pulling only isn't enough): stretch the clamp. But don't be afraid: You won't pinch your fingers by latching.
Also the technical features of the all-round terminal SDKF5 is nothing to sneeze it:
- Range of terminal: 0,2 mm² – 2,5 mm² for rigid, multi-wired and flexible conductors.
- Several wire cross-sections are compartible in one terminal.
- High pull forces.
- Rigid conductors pluggable without opening the clamp..
- Observation Window for checking the fixing point results in a hight level of safety by mounting.
You would like to check with an charge indocator if there is power? No problem. Compared with the terminal WAGO 222 the charge indicator don't get stuck in the Electro Terminal SDKF5.
Downloads & Documents
Login
Electrical data
| through wiring: | no |
|---|---|
| rated voltage: | 220-240 V |
| conformity: | CE |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | rectangular |
| protection type: | IP20 |
| mounting: | surface mounting |
| environment temperature to: | 90 °C |
Photometric data
| sensor: | no |
|---|---|
| dimmable: | no |
| color: | transparent |
| inclusive lamp: | no |
| sensor type: | no |
| solar panel: | no |
Logistic data
| item category: | installation materials |
|---|

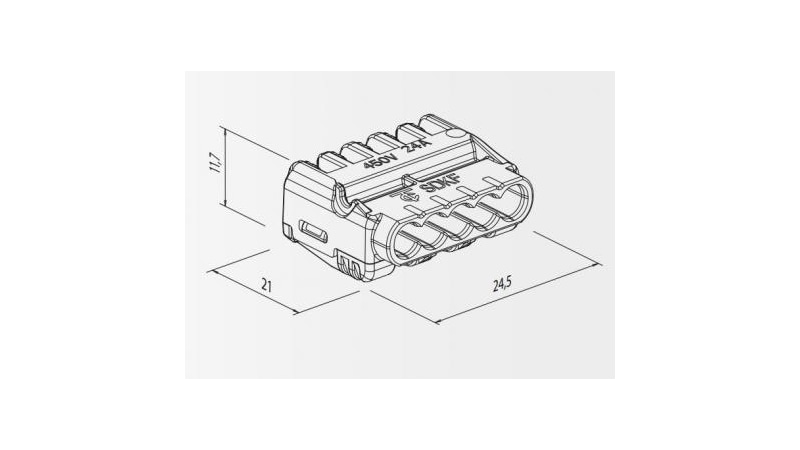

Dimensions & packaging
| EAN | 8713678005674 |
|---|---|
| Length | 21 mm |
| Width | 25 mm |
| Height | 12 mm |
| Weight | 4 g |
