Frisch-Licht LED downlight recessed closed EDL 2223A.1383 - EDL 2223A. 1383DK
FRISCH-Licht
Frisch-Licht LED downlight recessed closed EDL 2223A.1383 - EDL 2223A. 1383DK
Product number:
EDL 2223A. 1383DK
Shipping in 28 day(s)
€56.74
Content:
1 Stück
Prices incl. VAT plus shipping costs net €47.68
Product information "Frisch-Licht LED downlight recessed closed EDL 2223A.1383 - EDL 2223A. 1383DK"

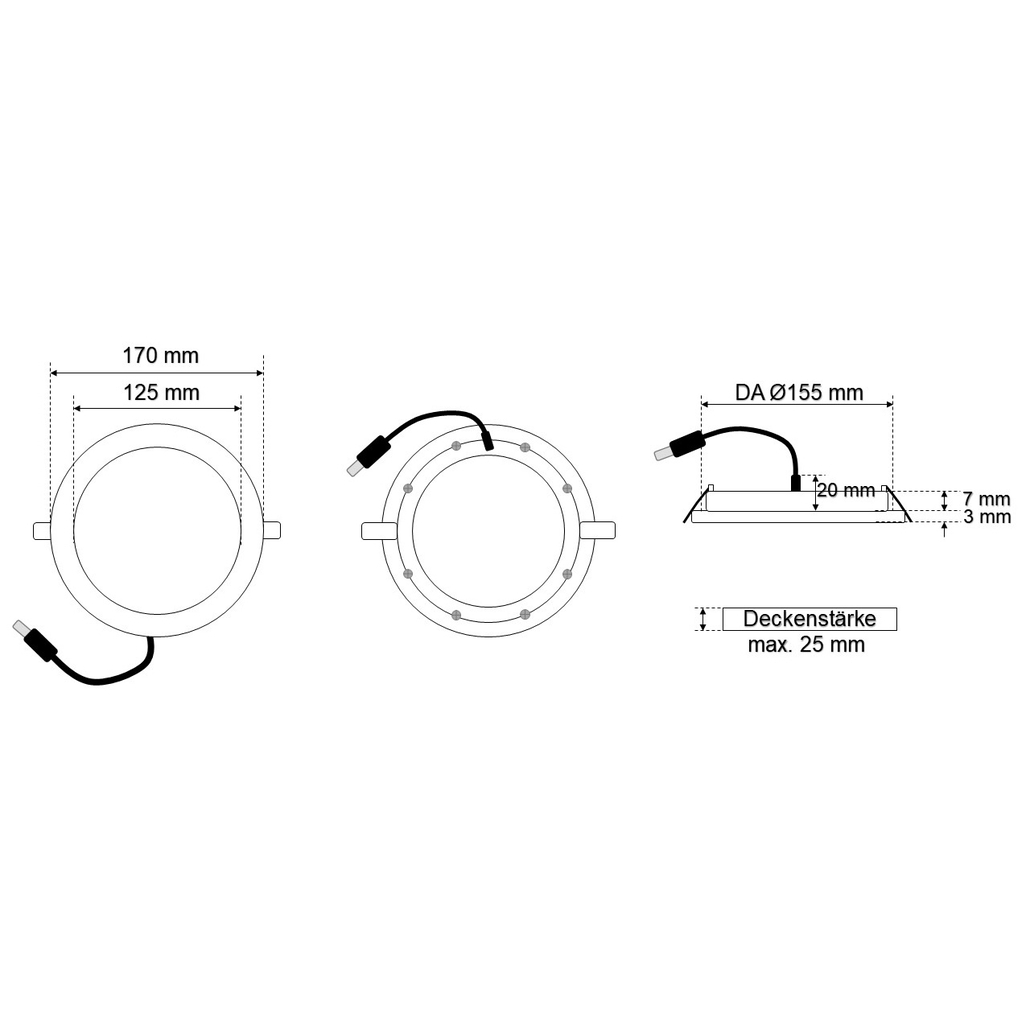

Recessed downlight, very flat LED equipped 13 watt, 1300 lumen, light color 830, 3000 Kelvin, Ra 80, OD 155 mm, D 170 mm, ET 20 mm opal cover made of PMMA, aluminum housing painted white with aluminum cooling profiles, dimmable via standard leading edge and trailing edge phase dimmers, ready for connection incl. power supply unit, protection class IP 44 on room side
Downloads & Documents
Login
Electrical data
| operating frequency: | 50-60 Hz |
|---|---|
| through wiring: | no |
| rated voltage: | 220-240 V |
| conformity: | CE |
| lifetime: | 50000 h |
| system power: | 13 |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | round |
| protection type: | IP44 |
| material: | aluminum, PMMA |
| mounting: | ceiling mounting, Installation |
| impact resist: | IK05 |
| protection class: | II |
| environment temperature from: | -20 °C |
| environment temperature to: | 35 °C |

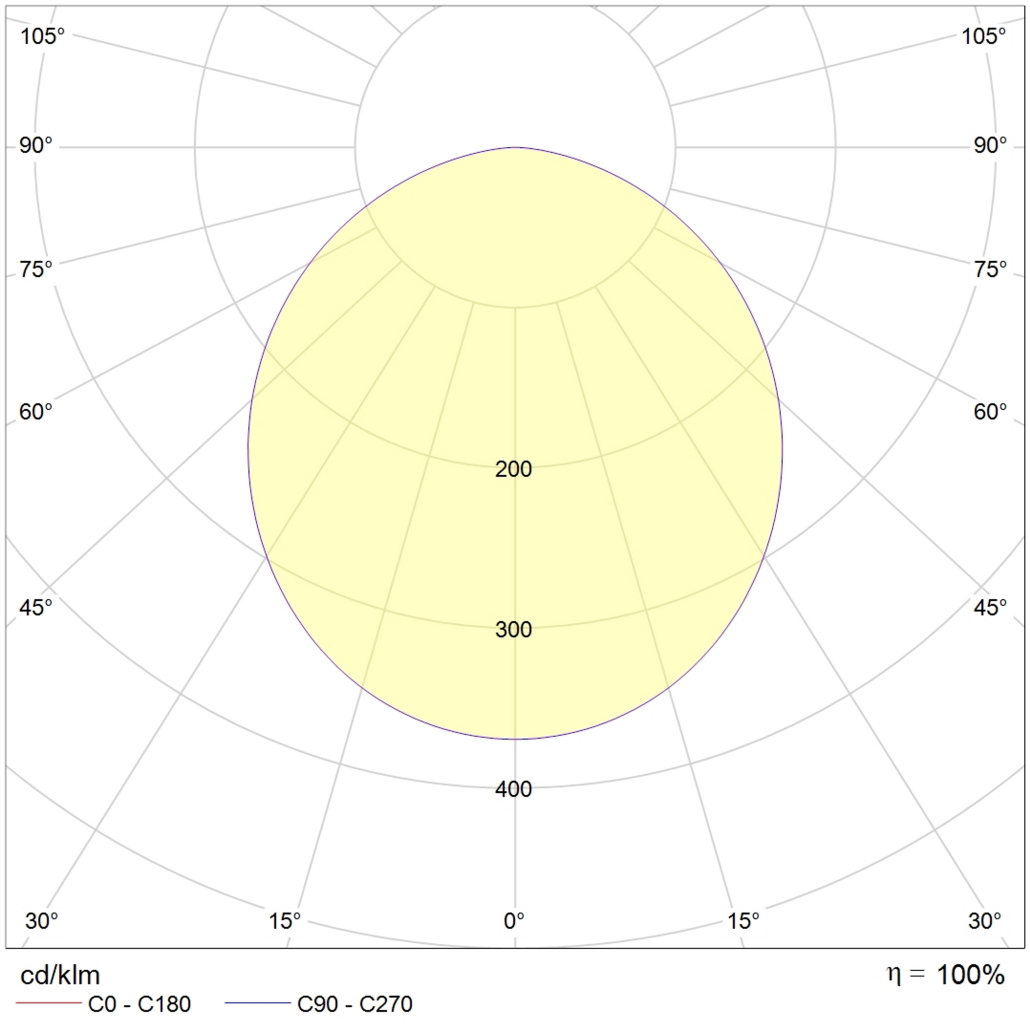

Photometric data
| sensor: | no |
|---|---|
| dimmable: | no |
| color code: | 830 |
| color: | white |
| color temperature [Kelvin]: | 3000 |
| color rendering index [CRI]: | >80 |
| lamp efficiency: | 100 lm/W |
| inclusive lamp: | yes |
| sensor type: | no |
| solar panel: | no |
| lum flux: | 1300 lm |
Dimensions & packaging
| Length | 1790 mm |
|---|---|
| Width | 170 mm |
| Height | 20 mm |
| Weight | 350 g |
