Harvard LED ECG CL450D2-240-C
Product information "Harvard LED ECG CL450D2-240-C"
The dimmable DALI constant current LED driver CL450D2-240-C from the CoolLED series from Harvard Technology provides a high performance solution for powering high-brightness LEDs from a mains supply.
The power factor corrected protection class II SELV driver delivers up to 21,6 W of power.
Thanks to DALI technology, you benefit from full dimming capabilities: the driver can be dimmed from 100% to 1% output current and completely turned off.
In addition, you have ability to control individual LED luminaries and simultaneous control of all or specified groups.
The high efficiency system of the constant current LED driver ensures low operating temperatures and a long service life. There is an extra benefit of a very low off power. The compact enclosure is available in remote mount version featuring screwless cable clamps. The driver can be assembled fast.
Downloads & Documents
Login
Electrical data
| number of channels: | 1 |
|---|---|
| operating mode: | constant current |
| rated voltage: | 220-240 V |
| terminal type: | Push-in CAGE CLAMP® |
Casing
| max housing temperature (tc-max): | 85 °C |
|---|---|
| protection type: | IP40 |
| mounting: | Installation |
| environment temperature from: | -25 °C |
| environment temperature to: | 60 °C |
Photometric data
| dimmable: | yes |
|---|---|
| dimming range to: | 100 % |
| dimming range from: | 1 % |
| interface: | DALI |
Logistic data
| item category: | LED drivers |
|---|

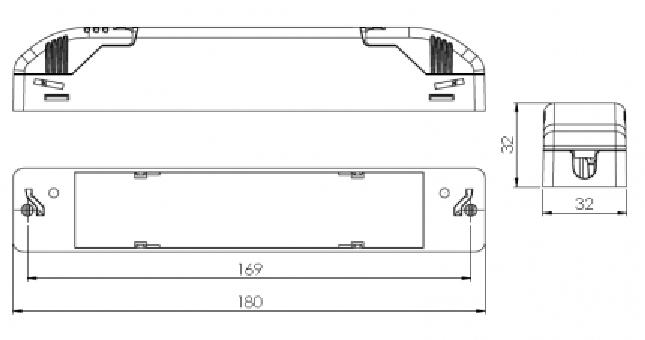

Dimensions & packaging
| Length | 180 mm |
|---|---|
| Width | 32 mm |
| Height | 32 mm |
| Weight | 120 g |
