Helvar FL-ECG EL2X58sc 220-240V 50-60 - 4946000

Helvar Oy AB

Helvar FL-ECG EL2X58sc 220-240V 50-60 - 4946000

Product number: 4946000

Immediately available

€68.76


Content: 1 Stück

Prices incl. VAT plus shipping costs net €57.78

Product information "Helvar FL-ECG EL2X58sc 220-240V 50-60 - 4946000"

1-10V dimmable 2-flame 58W FL ECG for T8

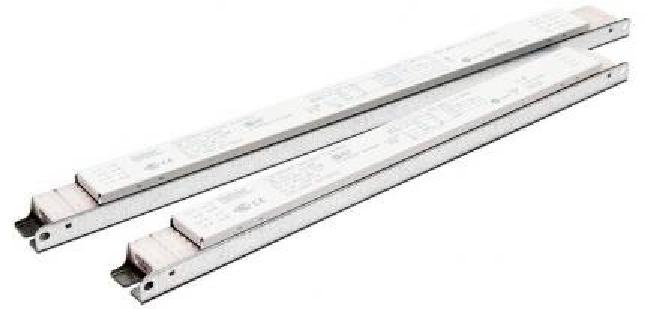

The 1-10 V dimmable 2-flame electronic ballast EL2X58sc for T8 fluorescent lamps from Helvar is suitable for luminaire installation. It has a nominal power of 58 watts and convinces with a stabilized, flicker-free light output and a very low standby power. The dimming range is between 1 and 100%.

The FL ECG only has a height of 21 mm and offers standard as well as sidemount options. In addition, it is very user-friendly thanks to a quick-release connector.

Microprocessor for energy savings and quality

The controllable Helvar ballasts are controlled by state-of-the-art microprocessors that ensure energy savings, quality and lighting comfort. The OCC technology ensures the highest possible energy class EEI = A1BAT.

The EL-sc series has a multi-control function, which makes dimming possible via an analog 1-10 VDC signal or via contact closure (switch control). The method is unique in that both dimming methods are used which allows a high degree of flexibility in the lighting design.

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Electrical data
number of channels: 2
energy efficiency index: A1
rated voltage: 220-240 V
lifetime: 50000 h
system power: 58
Casing
form type: linear
max housing temperature (tc-max): 80 °C
mounting: Installation
environment temperature from: 10 °C
environment temperature to: 50 °C
Photometric data
dimmable: yes
dimming range to: 100 %
dimming range from: 1 %
color: white
lamp type: T8
interface: 1-10 V
Logistic data
item category: electronic ballasts

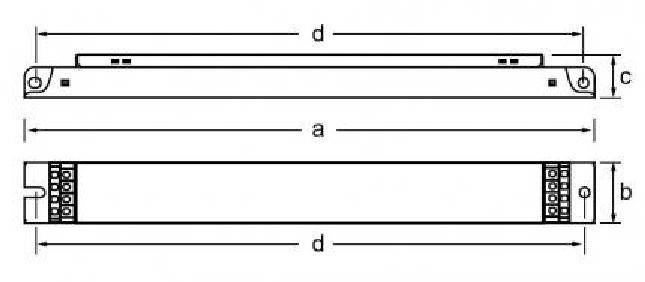

Dimensions & packaging
EAN 6410040208351
Length 430 mm
Width 30 mm
Height 21 mm
Weight 330 g
