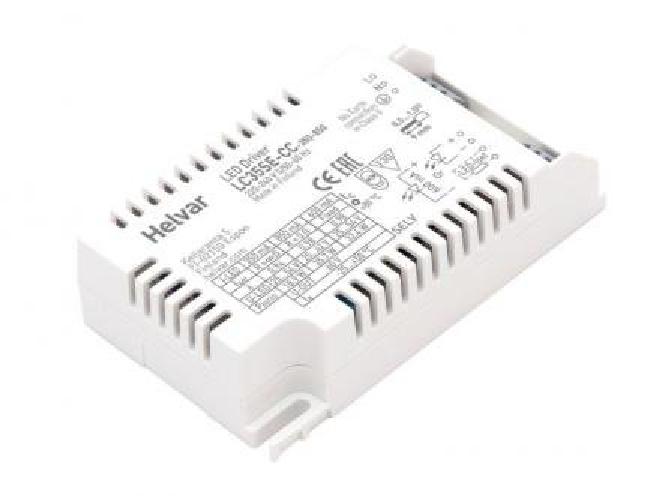

Helvar LED-Driver LC35SE-CC-350-850 - 5732001
Product information "Helvar LED-Driver LC35SE-CC-350-850 - 5732001"
Compact 35 W constant current LED ECG
The compact constant current LED driver LC35SE-CC-350-850 by Helvar is ideal for installation in Class I and II luminaires. The nominal power is up to 35 watts. It is suitable for DC operation.
Output current adjustable
The LED ECG has a very low current ripple according to IEEE 1789 standard. SELV output protection ensures safety and flexibility in luminaires. The output current can be set between 350 mA and 850 mA. The long lifetime of the Helvar LED driver is 100,000 hours.
Downloads & Documents
Login
Electrical data
| number of channels: | 1 |
|---|---|
| operating mode: | constant current |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | rectangular |
| protection type: | IP20 |
| mounting: | Installation |
| protection class: | I |
Photometric data
| sensor: | no |
|---|---|
| color: | white |
| solar panel: | no |
Logistic data
| item category: | LED drivers |
|---|
Dimensions & packaging
| EAN | 6418488573208 |
|---|
