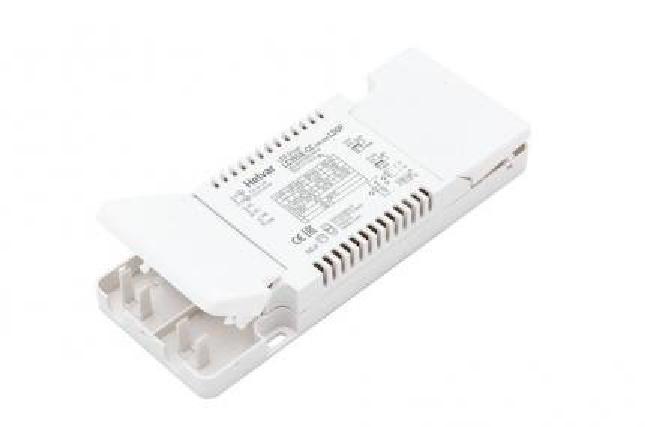

Helvar LED-Driver LC35SE-CC-350-850-LOOP - 5748000
Product information "Helvar LED-Driver LC35SE-CC-350-850-LOOP - 5748000"
Constant current LED driver with up to 35 W
The constant current LED driver LC35SE-CC-350-850-LOOP by Helvar is ideal for installation in Class I and II luminaires. The nominal power is up to 35 watts. It is suitable for DC operation.
Output current adjustable
The LED ECG has a very low current ripple according to IEEE 1789 standard. SELV output protection ensures safety and flexibility in luminaires. The output current can be set between 350 mA and 850 mA.
The LED driver has an optimized mechanism for independent applications. Integrated, spacious strain reliefs with screwless clamps ensure a quick and simple installation process. Double input terminals allow looping through the mains cable.
The long lifetime of the Helvar LED driver is 100,000 hours.
Downloads & Documents
Login
Electrical data
| number of channels: | 1 |
|---|---|
| operating mode: | constant current |
| rated voltage: | 220-240 V |
| lifetime: | 60000 h |
Casing
| form type: | rectangular |
|---|---|
| max housing temperature (tc-max): | 85 °C |
| protection type: | IP20 |
| mounting: | Installation |
| environment temperature from: | -25 °C |
| environment temperature to: | 45 °C |
Photometric data
| color: | white |
|---|
Logistic data
| item category: | LED drivers |
|---|

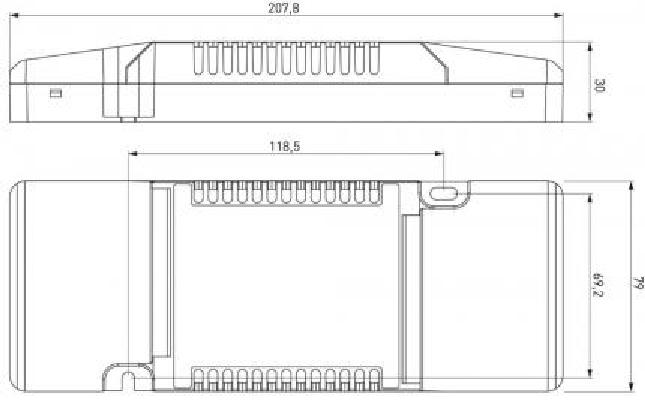

Dimensions & packaging
| Length | 208 mm |
|---|---|
| Width | 79 mm |
| Height | 30 mm |
