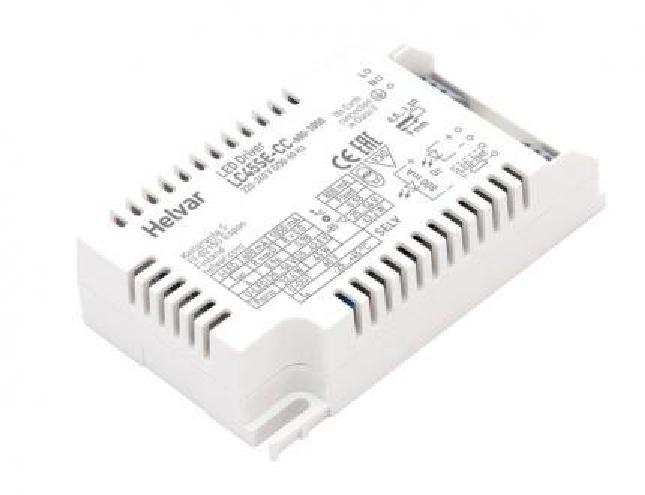

Helvar LED-Driver LC45SE-CC-600-1050 - 5731001
Product information "Helvar LED-Driver LC45SE-CC-600-1050 - 5731001"
Compact 45 W constant current LED ECG
The compact constant current LED driver LC45SE-CC-600-1050 by Helvar is ideal for installation in Class I and II luminaires. The nominal power is up to 45 watts. It is suitable for DC operation.
Output current adjustable
The LED ECG has a very low current ripple according to IEEE 1789 standard. SELV output protection ensures safety and flexibility in luminaires. The output current can be set between 600 mA and 1050 mA. The long lifetime of the Helvar LED driver is 100,000 hours.
Downloads & Documents
Login
Electrical data
| number of channels: | 1 |
|---|---|
| operating mode: | constant current |
| rated voltage: | 220-240 V |
| lifetime: | 55000 h |
Casing
| form type: | rectangular |
|---|---|
| max housing temperature (tc-max): | 85 °C |
| protection type: | IP20 |
| mounting: | Installation |
| protection class: | I |
| environment temperature from: | -25 °C |
| environment temperature to: | 45 °C |
Photometric data
| color: | white |
|---|
Logistic data
| item category: | LED drivers |
|---|
Dimensions & packaging
| Length | 115 mm |
|---|---|
| Width | 67 mm |
| Height | 30 mm |
