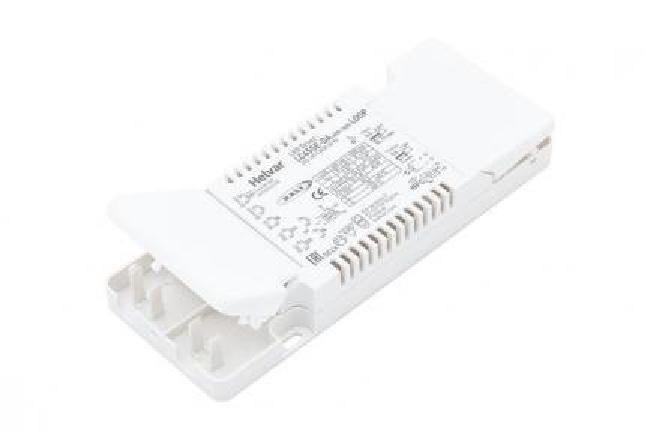

Helvar LED-Driver LC45SE-DA-600-1050-LOOP - 5743001
Product information "Helvar LED-Driver LC45SE-DA-600-1050-LOOP - 5743001"
DALI-2 LED ECG with up to 45W
The DALI-2 dimmable constant current LED driver LC45SE-DA-600-1050-LOOP is ideal for Class I, II and III luminaires. It is suitable for both luminaire installation and independent installation. The rated power is up to 45 watts. The driver is suitable for DC operation.
The LED ECG can be dimmed in a range of 1-100% via its DALI-2 interface. Amplitude dimming ensures the highest light output. The integrated NFC technology enables wireless programming. The latest Switch Control 2 functionality provides easy-to-use intensity control. In addition, the LED driver offers the possibility to monitor power consumption (real time), running hours (accumulative) and energy management (accumulative).
The LED ECG has a constant lumen output (CLO), up to 100 000 h (default: deactivated). It has a full load recognition with automatic recovery, no-load and short-circuit protection. In addition, it has the special Helvar Driver Configurator support and a memory bank for OEM customer data.
Output current adjustable
The LED ECG has a very low current ripple according to IEEE 1789 standard. Thus, it is for example suitable for flicker-free camera recording applications. SELV output protection ensures safety and flexibility in luminaire selection. The output current can be set between 600 mA and 1050 mA.
The LED driver has an optimized mechanism for independent applications. Integrated, spacious strain reliefs with screwless clamps ensure quick and easy installation. Double input terminals allow looping through the mains cables. The long lifetime of the Helvar LED ECG is 60,000 hours.
Downloads & Documents
Login
Electrical data
| number of channels: | 1 |
|---|---|
| operating mode: | constant current |
| rated voltage: | 220-240 V |
| lifetime: | 60000 h |
Casing
| form type: | rectangular |
|---|---|
| max housing temperature (tc-max): | 85 °C |
| protection type: | IP20 |
| mounting: | with strain relief |
| environment temperature from: | -25 °C |
| environment temperature to: | 45 °C |
Photometric data
| dimmable: | yes |
|---|---|
| dimming range to: | 100 % |
| dimming range from: | 1 % |
| color: | white |
| interface: | DALI |
Logistic data
| item category: | LED drivers |
|---|

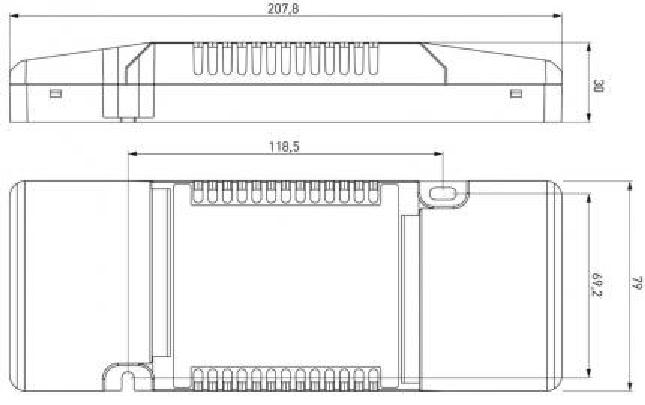

Dimensions & packaging
| Length | 208 mm |
|---|---|
| Width | 79 mm |
| Height | 30 mm |
