Ledvance LED DRIVER 1-10 V DIM OUTDOOR PERFORMANCE -20/220-240/24/P - 4058075239951
LEDVANCE
Ledvance LED DRIVER 1-10 V DIM OUTDOOR PERFORMANCE -20/220-240/24/P - 4058075239951
Product number:
4058075239951
Immediately available
€30.86
Content:
1 Stück
Prices incl. VAT plus shipping costs net €25.93
Product information "Ledvance LED DRIVER 1-10 V DIM OUTDOOR PERFORMANCE -20/220-240/24/P - 4058075239951"
Constant voltage LED drivers for the outdoor area with 1-10 V-Dimm interface. Product properties: Available in 20 W, 40 W, 60 W, 100 W, 150 W and 250 W. Dimmable over 1 ... 10 V-DimM control. Dimmable of 10 ... 100 %. Lifespan: up to 50,000 hours (at max. TC temperature). Protection class: IP66. Operating temperature range at TA: -40 ... 50 ° C. Supply voltage: 220 ... 240 V. Operating frequency: 50/60 Hz. Overvoltage protection: up to 6 kV (L-n), 6 kv (l/n-PE). Short-circuit and overload protection. Product advantages: Optimized for operation with 24 V flexible LED light band. 5 years of guarantee. Very stable output power. Quick and easy installation through pre -wiring. High efficiency and reliability. Installation in very cold and hot environments. Areas of application: Suitable for installations indoors and outdoors. Facade and building lighting. Particularly suitable for lighting public spaces. Baths, kitchens and outdoor areas. Offices, shopping centers, hospitals, restaurants, hotels.
Downloads & Documents
Login
Electrical data
| operating frequency: | 0/50-60 Hz |
|---|---|
| rated voltage: | 220-240 V |
| system power: | 20 |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | linear |
| protection type: | IP66 |
| material: | metal |
| protection class: | II |
Photometric data
| dimmable: | yes |
|---|---|
| color: | aluminium |
| lamp type: | LED |
| interface: | 1-10 V |
| solar panel: | no |
Logistic data
| item category: | LED drivers |
|---|---|
| country of origin: | China |

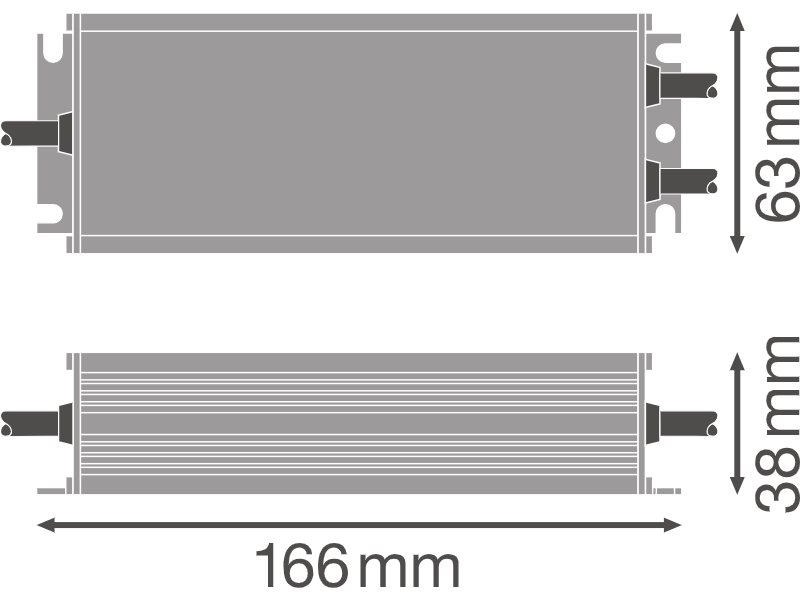

Dimensions & packaging
| EAN | 4058075239951 |
|---|---|
| Length | 166 mm |
| Width | 63 mm |
| Height | 38 mm |
| Weight | 645 g |
