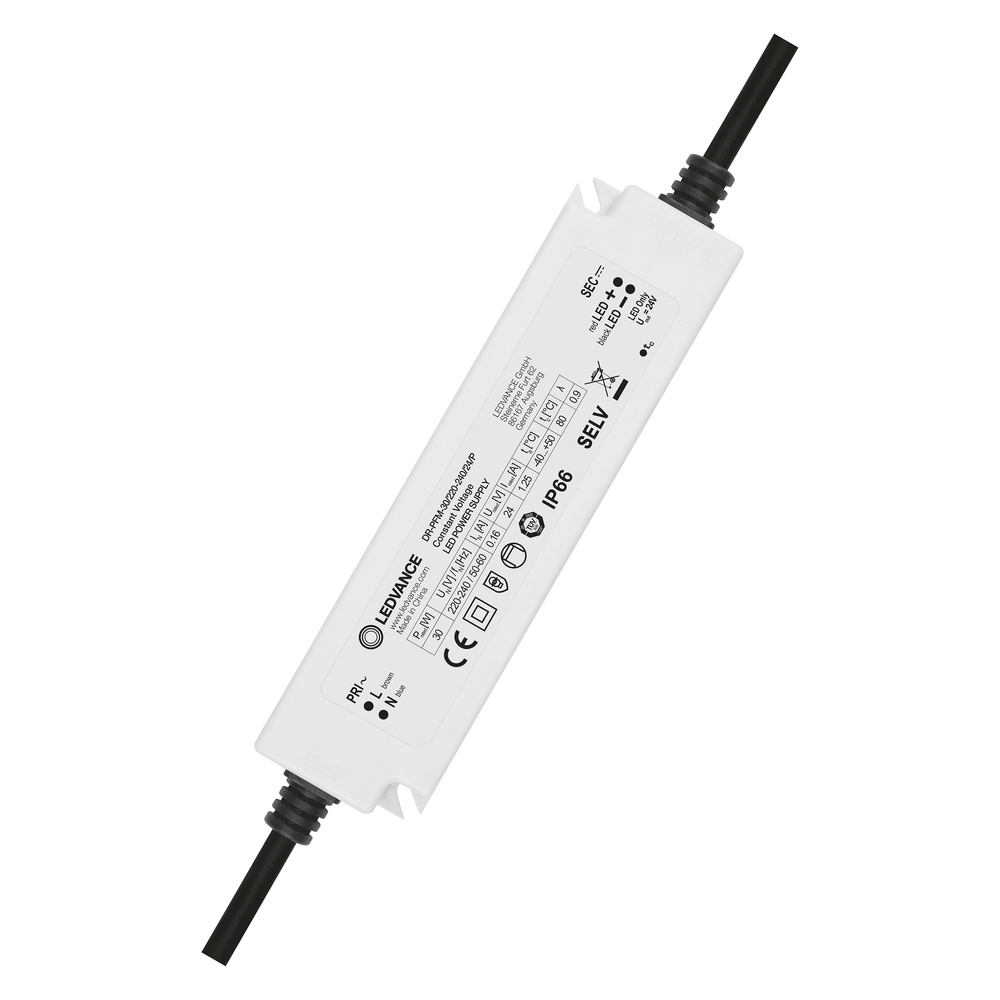

Ledvance LED DRIVER OUTDOOR PERFORMANCE -30/220-240/24/P - 4058075239890
LEDVANCE
Ledvance LED DRIVER OUTDOOR PERFORMANCE -30/220-240/24/P - 4058075239890
Product number:
4058075239890
Immediately available
€23.15
Content:
1 Stück
Prices incl. VAT plus shipping costs net €19.45
Product information "Ledvance LED DRIVER OUTDOOR PERFORMANCE -30/220-240/24/P - 4058075239890"
Constant voltage LED drivers for outdoor use. Product properties: available in 30 W, 60 W, 100 W, 150 W and 250 W. Lifespan: up to 50,000 h (at max. TC temperature). Protection class: IP66. Operating temperature range at TA: -40 ... 50 ° C. Supply voltage: 220 ... 240 V. Operating frequency: 50/60 Hz. Overvoltage protection: up to 4 kv (L-n) for 30W/60W, 6 kv (L-n)/6 kv (l/n-PE) for 100W/150W/ 250W. Short-circuit and overload protection. Product advantages: Optimized for operation with 24 V flexible LED light band. 5 years of guarantee. Very stable output power. Quick and easy installation through pre -wiring. High efficiency and reliability. Installation in very cold and hot environments. Areas of application: Suitable for installations indoors and outdoors. Facade and building lighting. Particularly suitable for lighting public spaces. Baths, kitchens and outdoor areas. Offices, shopping centers, hospitals, restaurants, hotels.
Downloads & Documents
Login
Electrical data
| rated voltage: | 220-240 V |
|---|---|
| system power: | 30 |
Casing
| form type: | linear |
|---|---|
| protection type: | IP66 |
| material: | plastic |
| protection class: | II |
Photometric data
| dimmable: | no |
|---|---|
| color: | white |
Logistic data
| item category: | LED drivers |
|---|---|
| country of origin: | China |

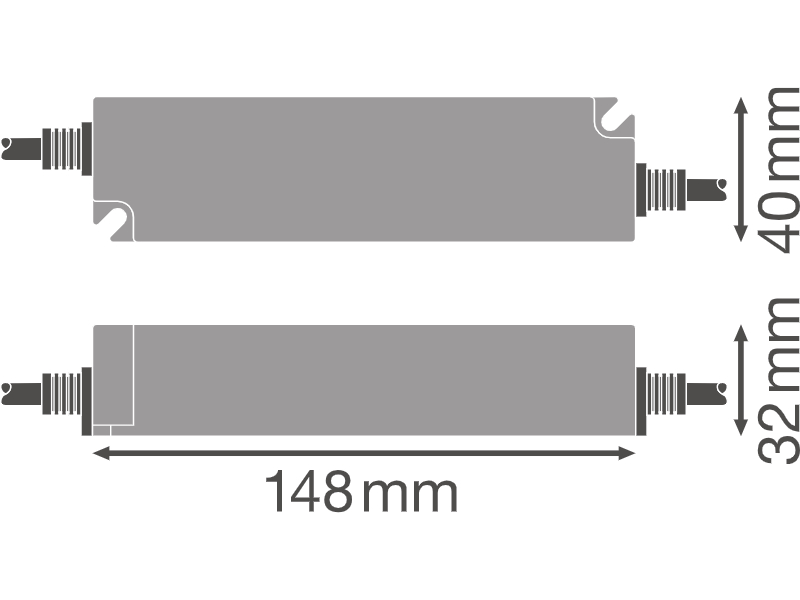

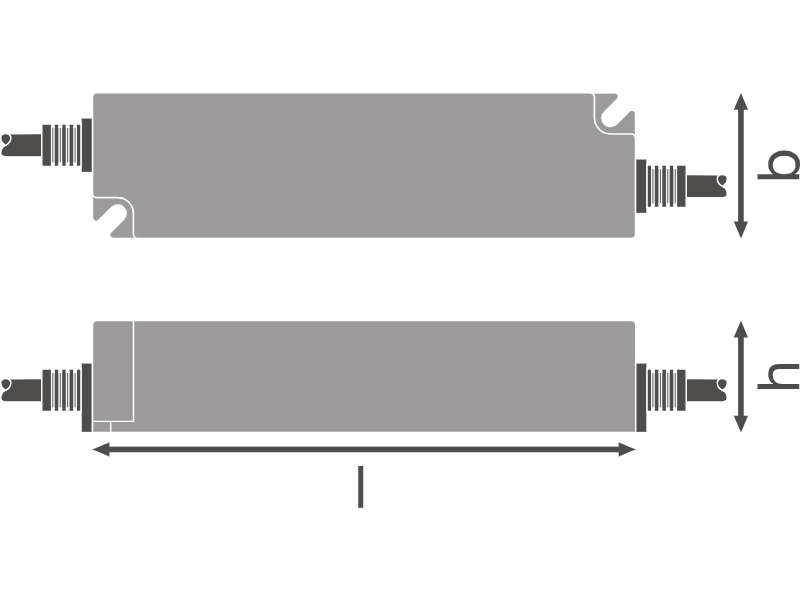

Dimensions & packaging
| EAN | 4058075239890 |
|---|---|
| Length | 148 mm |
| Width | 40 mm |
| Height | 32 mm |
| Weight | 330 g |
