Ledvance LED DRIVER PHASE-CUT PERFORMANCE -35/220-240/700 - 4058075239876
LEDVANCE
Ledvance LED DRIVER PHASE-CUT PERFORMANCE -35/220-240/700 - 4058075239876
Product number:
4058075239876
Immediately available
€24.20
Content:
1 Stück
Prices incl. VAT plus shipping costs net €20.34
Product information "Ledvance LED DRIVER PHASE-CUT PERFORMANCE -35/220-240/700 - 4058075239876"
Constant flow LED drivers with a DIMM interface for phase intersection. Product properties: Available in 13 W, 18 W, 25 W and 35 W. Independent installation with optional cable clamp kit. Dimmable via phase section and phase section. Dimmable of 10 ... 100 %. Lifespan: up to 50,000 hours (at max. TC temperature). Protection class: IP20. Constant output current. Low rippling current <5%. Supply voltage: 220 ... 240 V. Operating frequency: 50/60 Hz. Operation with less than 60 V: safety small voltage (SELV). Reverse over-temperature, overload, short-circuit and work current protection. Product advantages: enables installation with frequently used phase-cutting and sectional dimmers. 5 years of guarantee. Slim housing for narrow installations. High efficiency and reliability. Areas of application: Suitable for LED lights and LED modules. Suitable for luminaires of protection class I and II. For SELV installations indoors. Offices, shopping centers, hospitals, restaurants, hotels. Technical equipment: cable terminal kit for optimized tract relief
Downloads & Documents
Login
Electrical data
| operating frequency: | 0/50-60 Hz |
|---|---|
| rated voltage: | 220-240 V |
| system power: | 35 |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | linear |
| protection type: | IP20 |
| material: | plastic |
| protection class: | II |
Photometric data
| dimmable: | yes |
|---|---|
| color: | white |
| lamp type: | LED |
| interface: | Phase gating |
| solar panel: | no |
Logistic data
| item category: | LED drivers |
|---|---|
| country of origin: | China |

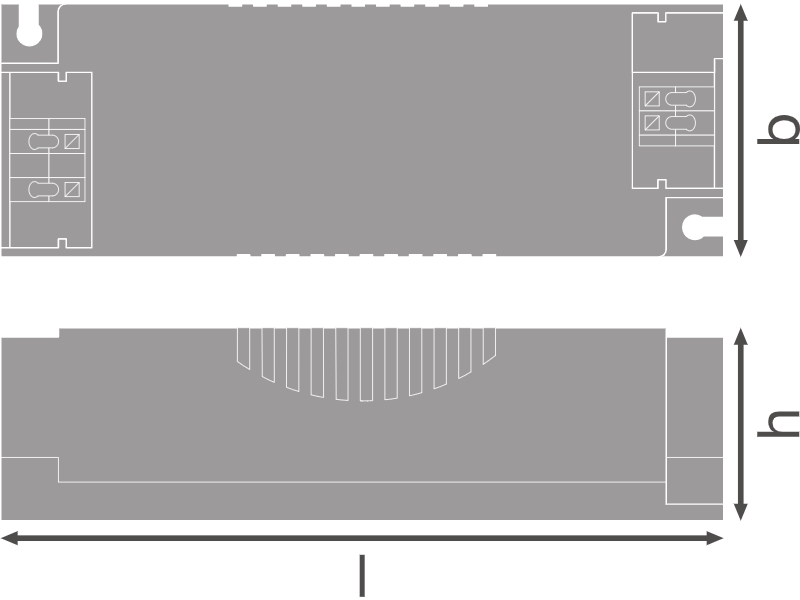

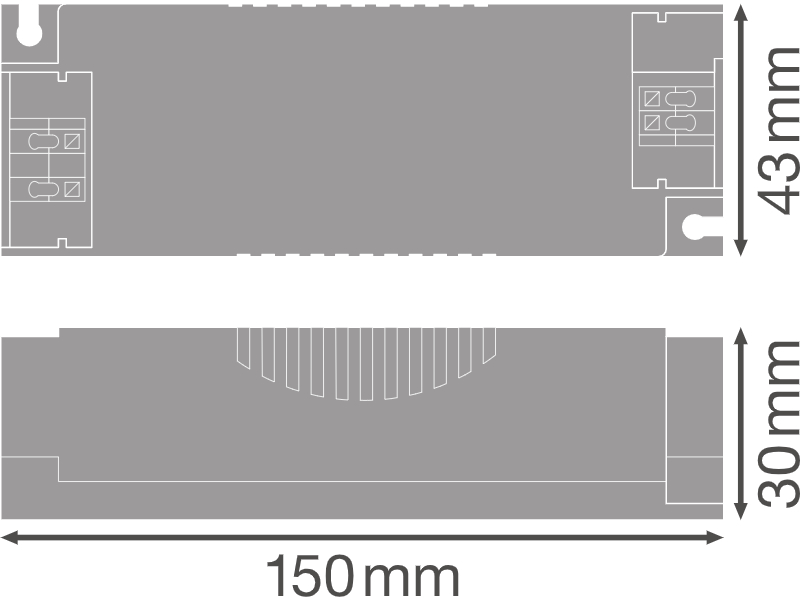

Dimensions & packaging
| EAN | 4058075239876 |
|---|---|
| Length | 150 mm |
| Width | 43 mm |
| Height | 30 mm |
| Weight | 158 g |
