Ledvance LED floodlight FLOODLIGHT MAX 600W LUMINAIRE HEAD 757 SYM 30 WAL - 4058075580596
LEDVANCE
Ledvance LED floodlight FLOODLIGHT MAX 600W LUMINAIRE HEAD 757 SYM 30 WAL - 4058075580596
Product number:
4058075580596
Shipping in 14 day(s)
€1,168.07
Content:
1 Stück
Prices incl. VAT plus shipping costs net €981.57
Product information "Ledvance LED floodlight FLOODLIGHT MAX 600W LUMINAIRE HEAD 757 SYM 30 WAL - 4058075580596"
High-performance headlights for the large area and sports facility lighting, up to 82 klm. Product properties: Modular high -performance headlights with up to 135 lm/w. Joint or separate installation with Floodlight Max power supply. Available with 10 °, 30 ° and 60 ° symmetrical lighting, as well as 50 ° x110 ° asymmetrical radiation characteristics. Assembly bracket with a rotary range of up to 180 °. Cover disc made of highly transparent, hardened glass. Product advantages: extremely bright, robust and durable. Up to 45 % energy savings compared to lights that use conventional discharge lamps. Simple dimming to 50% by wiring. No light exit in the upper half area (Ulor 0%) at 0 °. Optimized product logistics, lighting heads and power supplies are packed separately. Flicker light. 5 years of guarantee. Areas of application: external application (IP66). Large area lighting. Sports facilities. Construction sites. Direct replacement for lights that use HID lamps. Technical equipment: power supply not included in the scope of delivery of the light head. Operation only with an official 600 W power supply gtin (EAN) 4058075580718. Target help in preparation. Dilation to limit the front beam angle in preparation
Downloads & Documents
Login
Electrical data
| rated voltage: | 180 V |
|---|---|
| lifetime: | 100000 h |
| system power: | 600 |
| switching cycles: | 100000 |
Casing
| protection type: | IP66 |
|---|---|
| material: | aluminum |
| impact resist: | IK08 |
| protection class: | II |
| environment temperature from: | -30 °C |
| environment temperature to: | 50 °C |

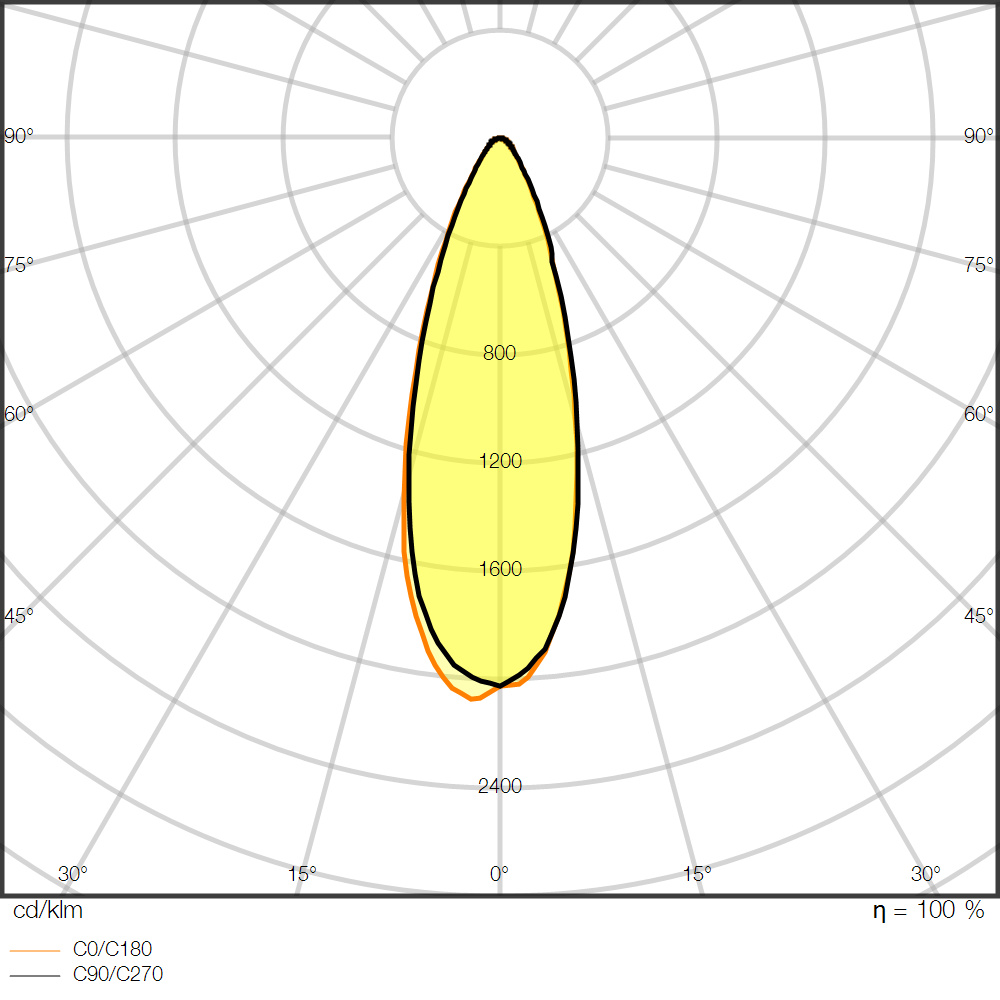

Photometric data
| radiation angle: | 30 ° |
|---|---|
| dimmable: | no |
| color: | silver |
| color temperature [Kelvin]: | 5700 |
| color rendering index [CRI]: | >70 |
| lamp efficiency: | 135 lm/W |
| start time: | 0,5 s |
| lum flux: | 81000 lm |
Logistic data
| item category: | outdoor luminaires |
|---|---|
| country of origin: | China |
Dimensions & packaging
| EAN | 4058075580596 |
|---|---|
| Length | 472 mm |
| Width | 591 mm |
| Height | 279 mm |
| Weight | 15800 g |
