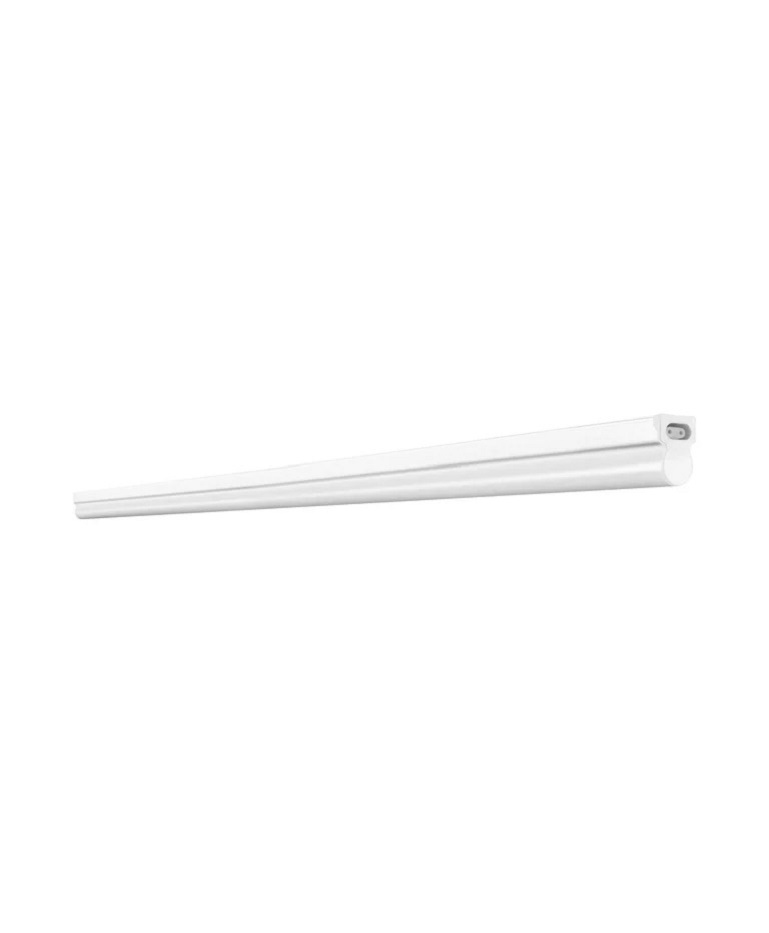

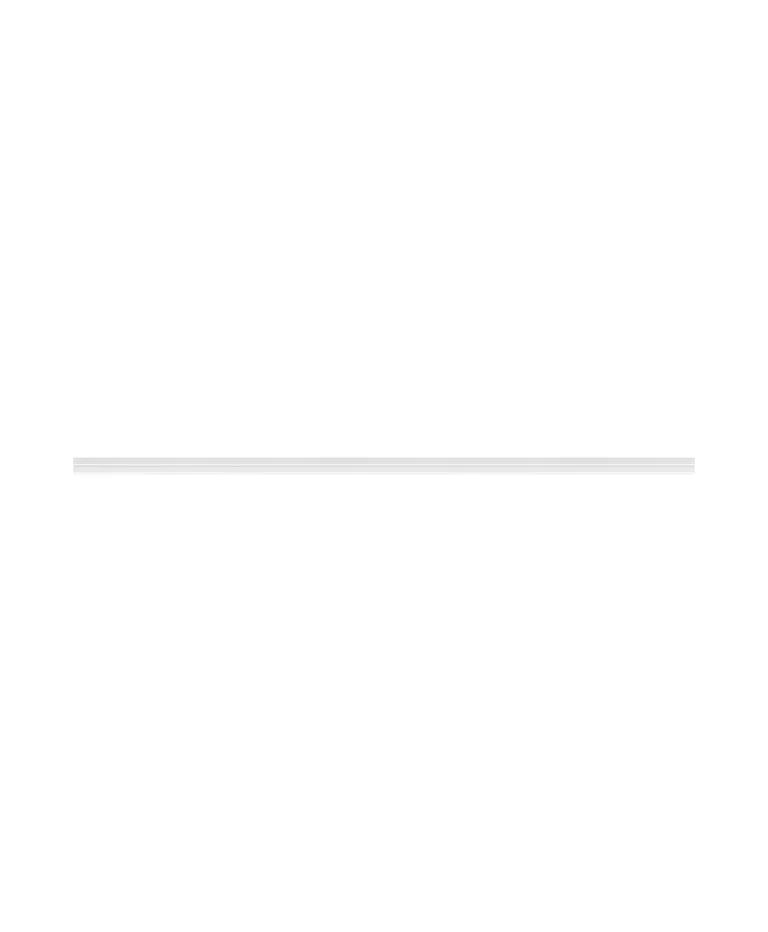

Ledvance LED linear luminaire LINEAR COMPACT BATTEN 1500 25 W 4000 K - 4058075099791
LEDVANCE
Ledvance LED linear luminaire LINEAR COMPACT BATTEN 1500 25 W 4000 K - 4058075099791
Product number:
4058075099791
Shipping in 6 day(s)
€38.13
Content:
1 Stück
Prices incl. VAT plus shipping costs net €32.04
Product information "Ledvance LED linear luminaire LINEAR COMPACT BATTEN 1500 25 W 4000 K - 4058075099791"
Compact lights with wiring on the back. Product properties: replacement for conventional T8 lights. Wiring on the back of the lamp. Transparent end caps. Can be connected at the beginning of the light tape with a compact high-output light. Versions with a luminous flux 1000 ... 2500 LM available. 3 different lengths available. High light output: up to 100 lm/w. Low wire test according to IEC 60695-2-12: 850 ° C. Product advantages: compact dimensions. Need little space thanks to the compact dimensions. Seamless connection without visible cables when combined with linear compact high output. High luminous flux up to 2500 lm. Flexible application through a wide range of available lengths from 600 to 1500 mm. Flicker light thanks to special electronic ballast. 5 years of guarantee. Areas of application: Direct replacement for lights with fluorescent lamps. Interior applications. Corridore, entrance areas, stairwells, living room, basement. Accent lighting. Uefental space. Voute lighting. Shelves, furniture integration or substructure. Seamless light strips. Technical equipment: assembly clips are included
Downloads & Documents
Login
Electrical data
| operating frequency: | 50-60 Hz |
|---|---|
| operating voltage: | 220-240 V |
| rated voltage: | 220-240 V |
| lifetime: | 50000 h |
| system power: | 25 |
| switching cycles: | 100000 |
Casing
| form type: | linear |
|---|---|
| protection type: | IP20 |
| material: | polycarbonate |
| impact resist: | IK03 |
| protection class: | II |
| environment temperature from: | -20 °C |
| environment temperature to: | 40 °C |

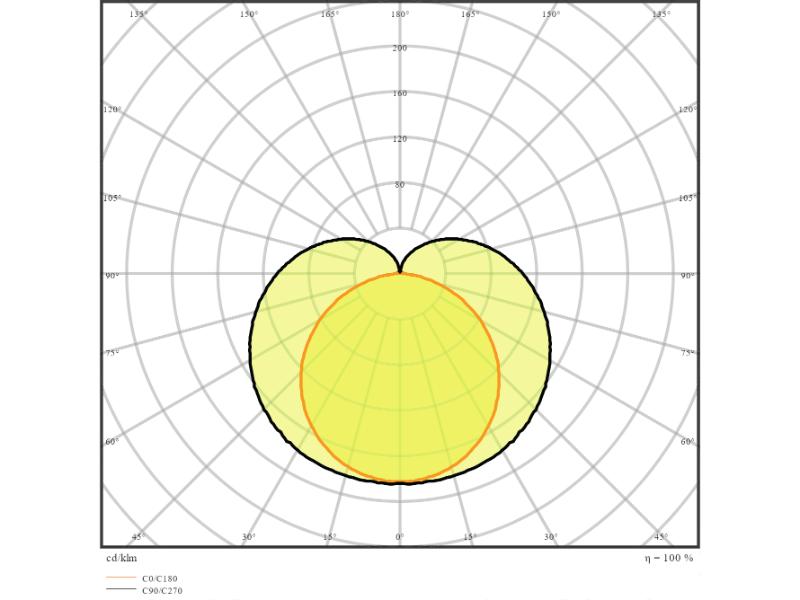

Photometric data
| radiation angle: | 140 ° |
|---|---|
| dimmable: | no |
| color: | white |
| color temperature [Kelvin]: | 4000 |
| color rendering index [CRI]: | >80 |
| lamp efficiency: | 100 lm/W |
| start time: | 0,5 s |
| lum flux: | 2500 lm |
Logistic data
| item category: | LED lighting strip |
|---|---|
| country of origin: | China |
Dimensions & packaging
| EAN | 4058075099791 |
|---|---|
| Length | 1475 mm |
| Width | 27 mm |
| Height | 38 mm |
| Weight | 290 g |
