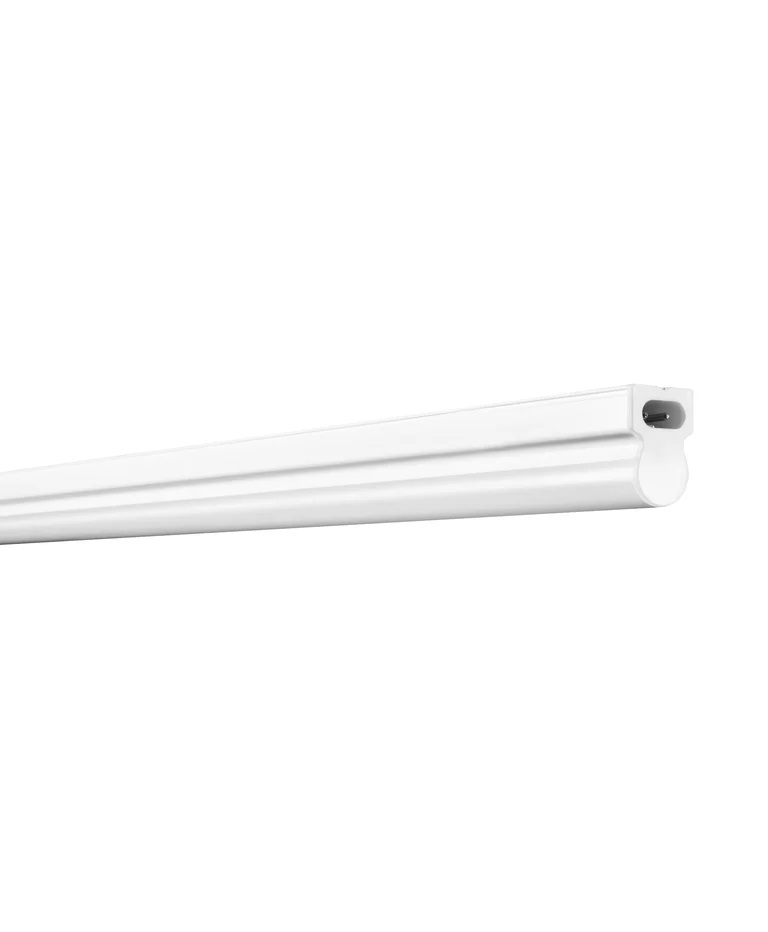

Ledvance LED linear luminaire LINEAR COMPACT HIGH OUTPUT 1200 20 W 3000 K - 4058075106314
LEDVANCE
Ledvance LED linear luminaire LINEAR COMPACT HIGH OUTPUT 1200 20 W 3000 K - 4058075106314
Product number:
4058075106314
Immediately available
€32.84
Content:
1 Stück
Prices incl. VAT plus shipping costs net €27.60
Product information "Ledvance LED linear luminaire LINEAR COMPACT HIGH OUTPUT 1200 20 W 3000 K - 4058075106314"
Compact lamp with a high luminous flux for single or light band applications. Product properties: replacement for conventional T8 or T5 lights. Up to 10 lights can be connected. Transparent end caps. Linear compact bats connected at the beginning of the light tape with wiring on the back. Versions with a luminous flux 1000 ... 2500 LM available. 4 different lengths available. High light output: up to 100 lm/w. Low wire test according to IEC 60695-2-12: 850 ° C. Product advantages: compact dimensions. Need little space thanks to the compact dimensions. Seamless connection option with up to 10 lights per light tape installation. High luminous flux up to 2500 lm. Seamless connection without visible cables when combined with linear compact bats. Flicker light thanks to special electronic ballast. Angle connection with included cable possible. Flexible installation in 2 different angles through 2 fastening options. Flexible application through a wide range of available lengths from 600 to 1500 mm. 5 years of guarantee. Areas of application: Direct replacement for lights with fluorescent lamps. Interior applications. Corridore, entrance areas, stairwells, living room, basement. Accent lighting. Uefental space. Voute lighting. Shelves, furniture integration or substructure. Seamless light strips. Technical equipment: equipped with a current connector, cable connector and line connectors for the connection of further lights. Assembly material for wall and ceiling attachment included
Downloads & Documents
Login
Electrical data
| operating frequency: | 50-60 Hz |
|---|---|
| operating voltage: | 220-240 V |
| rated voltage: | 220-240 V |
| lifetime: | 50000 h |
| system power: | 20 |
| switching cycles: | 100000 |
Casing
| form type: | linear |
|---|---|
| protection type: | IP20 |
| material: | polycarbonate |
| impact resist: | IK03 |
| protection class: | II |
| environment temperature from: | -20 °C |
| environment temperature to: | 40 °C |

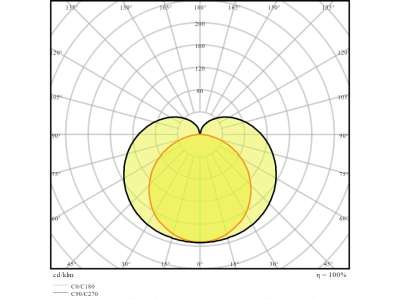

Photometric data
| radiation angle: | 140 ° |
|---|---|
| dimmable: | no |
| color: | white |
| color temperature [Kelvin]: | 3000 |
| color rendering index [CRI]: | >80 |
| lamp efficiency: | 100 lm/W |
| start time: | 0,5 s |
| lum flux: | 2000 lm |
Logistic data
| item category: | LED lighting strip |
|---|---|
| country of origin: | China |

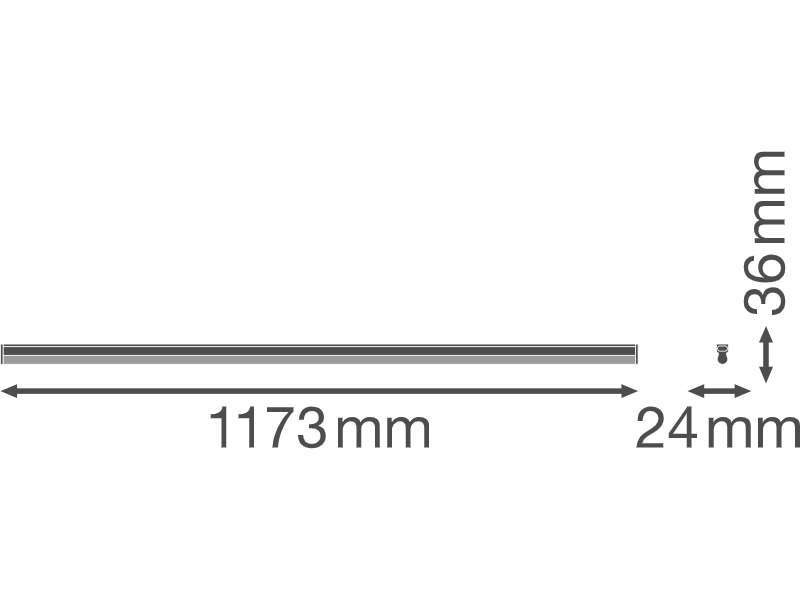

Dimensions & packaging
| EAN | 4058075106314 |
|---|---|
| Length | 1173 mm |
| Width | 24 mm |
| Height | 36 mm |
| Weight | 410 g |
