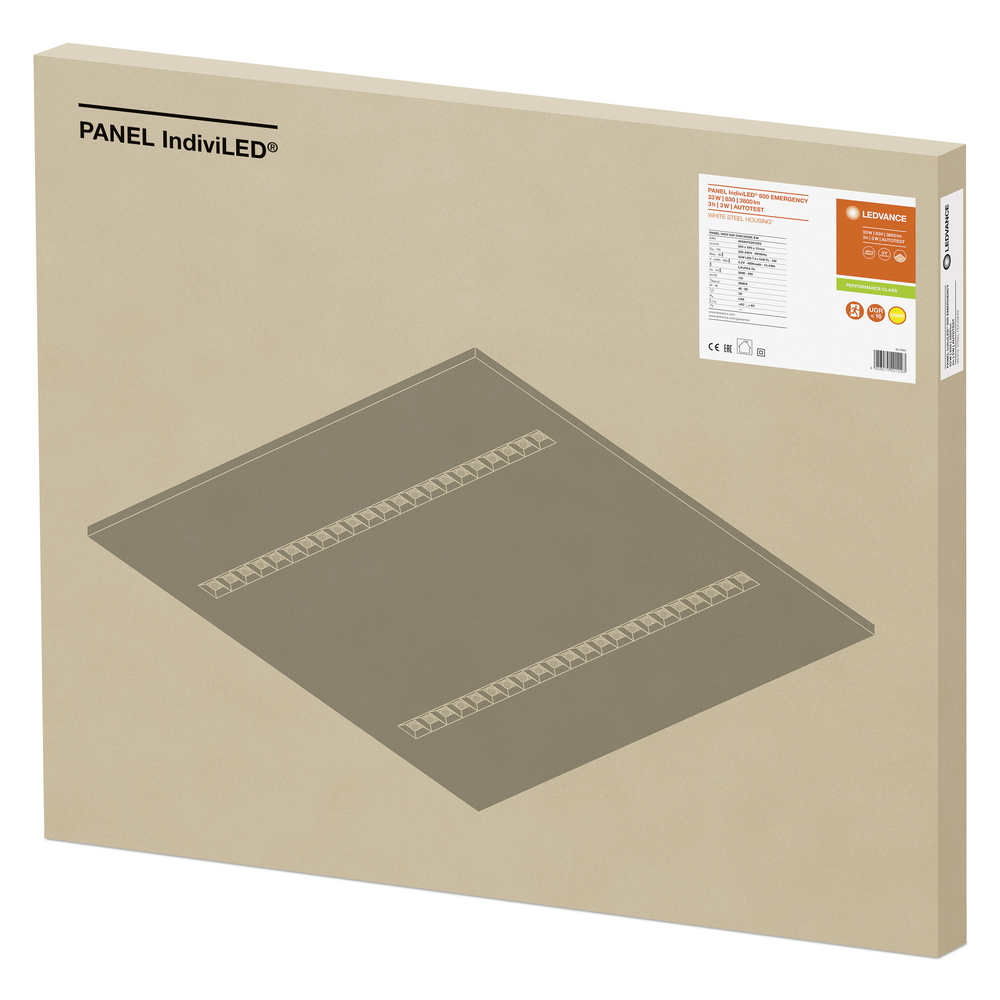

Ledvance LED panel luminaire PANEL IndiviLED EMERGENCY 600 33 W 3000K - 4058075201293
LEDVANCE
Ledvance LED panel luminaire PANEL IndiviLED EMERGENCY 600 33 W 3000K - 4058075201293
Product number:
4058075201293
Shipping in 6 day(s)
€185.89
Content:
1 Stück
Prices incl. VAT plus shipping costs net €156.21
Product information "Ledvance LED panel luminaire PANEL IndiviLED EMERGENCY 600 33 W 3000K - 4058075201293"
Quadratical recessed lights with Indiviled® optics, single battery safety lights, 600 mm. Product properties: every LED with individual lens and reflector for UGR <16 and homogeneous light distribution. Luminaire suitable for general lighting and safety lighting. Certified according to European standards (EN 60598-1: 2015; EN 60598-2-22: 2014). Individual battery lights. Safety lighting function: Battery charging duration 3 h. Functional test of safety lighting: automatic (AT). Battery technology: Lifepo4. Metal housing, lentils and reflectors made of polycarbonate (PC). Light output: up to 120 lm/w. Initial color consistency: 3 SDCM (threshold value unit). Low wire test according to IEC 60695-2-12: 850 ° C. Product advantages: homogeneous light distribution and reduced glare thanks to the Indivilled® look. Seamless integration of lights with safety lighting function into general lighting. Simple cabling thanks to the included, pre-wired driver and battery for the safety lighting function. Easy testing of the safety lighting function through integrated automatic test function. Comfortable visualization of the results of the automatic test with contained control LED. Operation of the safety lighting function with long-lasting LIFEPO4 battery with 3h operating time discharge time. Up to 50 % energy savings (compared to lights that use fluorescent lamps). Robust housing with IK08. Flicker light thanks to special electronic ballast. 3 year guarantee. Areas of application: Direct replacement for lights with fluorescent lamps. Safety lighting for escape routes. Anti-Panic lighting. Building for which safety lighting of 3 h is required. Reception areas, entrance areas, corridors, elevators. Office rooms, conference rooms. Suitable for ceiling installation systems with a grid size of 600 x 600 mm. Technical equipment: optional assembly clips available. Included security rope for lights. External ballast contained. Status indicator LED with holder for ceiling included in the scope of delivery
Downloads & Documents
Login
Electrical data
| operating frequency: | 50/60 Hz |
|---|---|
| operating voltage: | 220-240 V |
| rated voltage: | 220-240 V |
| lifetime: | 60000 h |
| system power: | 33 |
| switching cycles: | 25000 |
Casing
| protection type: | IP40 |
|---|---|
| material: | steel |
| impact resist: | IK08 |
| protection class: | II |
| environment temperature from: | 5 °C |
| environment temperature to: | 40 °C |

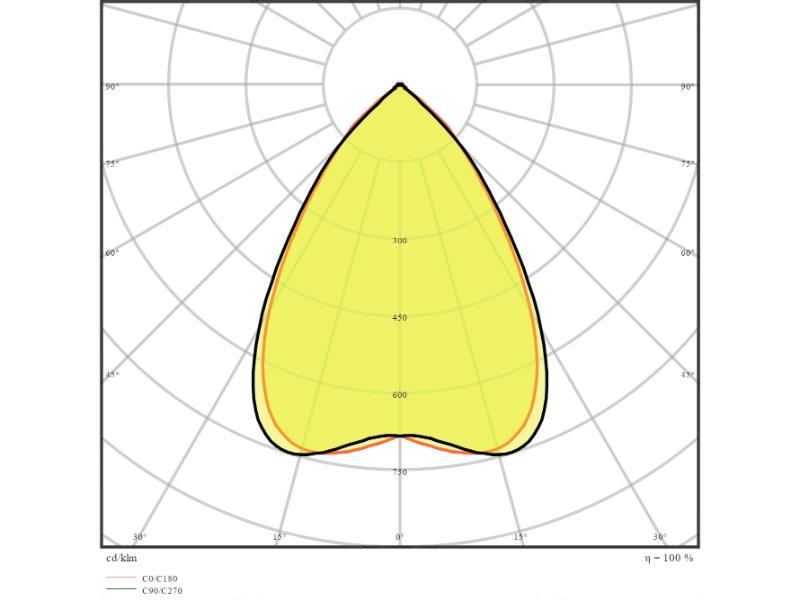

Photometric data
| radiation angle: | 70 ° |
|---|---|
| dimmable: | no |
| color: | white |
| color temperature [Kelvin]: | 3000 |
| color rendering index [CRI]: | >80 |
| lamp efficiency: | 115 lm/W |
| start time: | 0.2 s |
| lum flux: | 3800 lm |
Logistic data
| item category: | LED panel luminaires |
|---|---|
| country of origin: | China |
Dimensions & packaging
| EAN | 4058075201293 |
|---|---|
| Length | 595 mm |
| Width | 595 mm |
| Height | 13 mm |
| Weight | 3700 g |
