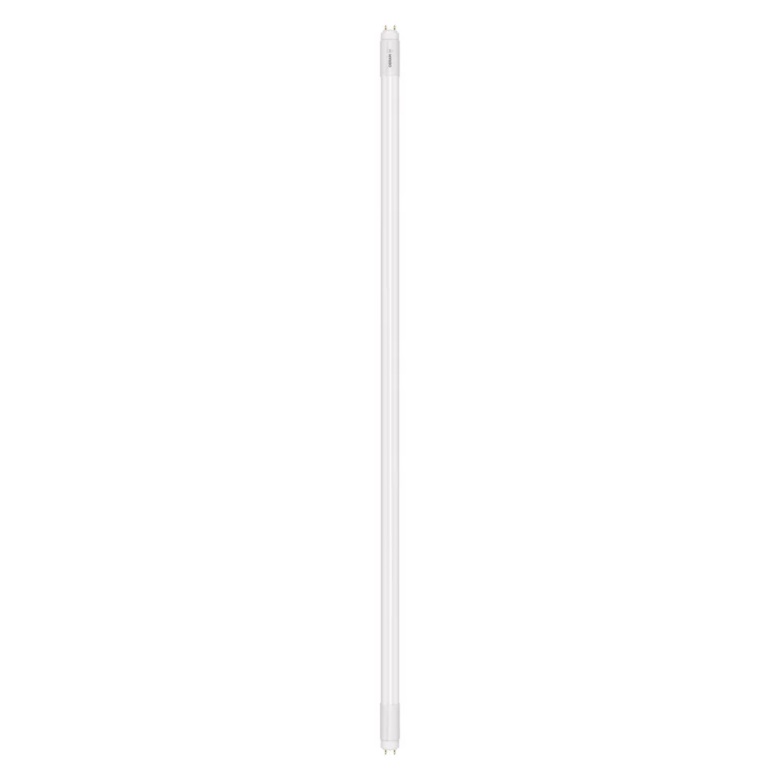

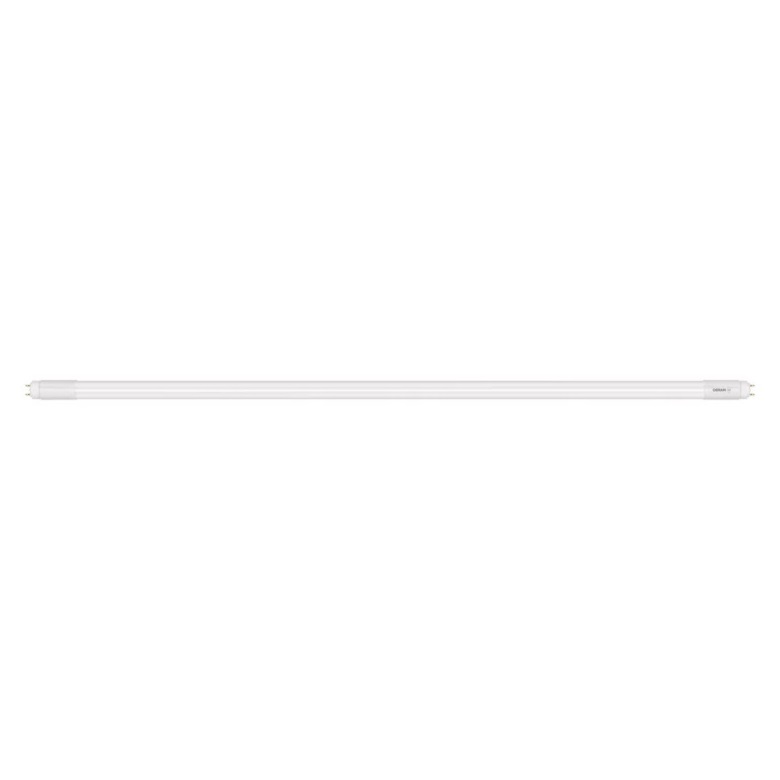

Ledvance LED tube LED TUBE T8 HF ULTRA OUTPUT P 1500 mm 23W 840 – 4099854026195 – replacement for 58 W - 4099854026195

LEDVANCE

Ledvance LED tube LED TUBE T8 HF ULTRA OUTPUT P 1500 mm 23W 840 – 4099854026195 – replacement for 58 W - 4099854026195

Product number: 4099854026195

Immediately available

€22.97 (18% saved)
d
a g
Datasheet

€18.67


Content: 1 Stück

Prices incl. VAT plus shipping costs net €15.69

Product information "Ledvance LED tube LED TUBE T8 HF ULTRA OUTPUT P 1500 mm 23W 840 – 4099854026195 – replacement for 58 W - 4099854026195"

LED tubes for electronic ballasts (EVG), splinter protection. Product properties: T8 LED tube made of glass with G13 base. Flicker arm according to EU 2019/2020. Glass lamp tube with splinter protection for applications e.g. in the food industry. Coat silver-free and raw-compliant. Protection class: IP20. Lifespan: up to 60,000 h. Compatible with many commercially available electronic ballasts (see also Compatibility list ). Product advantages: Simple, faster and safe lamp exchange without converting. Splitter protection thanks to special PET coating. Also suitable for operation at low temperatures. High luminous flux for demanding lighting tasks. No slopes thanks to glass technology. Areas of application: general lighting in ambient temperatures of -20 ...+45 ° C. Supermarkets and department stores. Industry. Offices, public institutions.



ECG compatibility

Electronic transformers were all first developed for conventional halogen, fluorescent or compact fluorescent lamps and not for lamps with integrated electronic like LED lamps. Therefore, LEDVANCE is providing a list of electronic control gears (ECG) that have been tested and proven to be compatible with our range of LED lamps

Follow this link to the ECG compatibility list

Downloads & Documents
Electrical data
operating frequency: 20-75 Hz
energy efficiency index: D
rated voltage: 40-70 V
lifetime: 60000 h
system power: 23
switching cycles: 200000
Casing
fire protection: no
protection type: IP20
material: glass
environment temperature from: -20 °C
environment temperature to: 45 °C
Photometric data
dimmable: no
color code: 840
color: white
color temperature [Kelvin]: 4000
color rendering index [CRI]: >80
lamp type: LED
lamp efficiency: 160 lm/W
sensor type: no
socket: G13
lum flux: 3700 lm
Logistic data
country of origin: China
Dimensions & packaging
EAN 4099854026195
Length 1513.1 mm
Width 278 mm
Height 278 mm
Weight 248 g
