Ledvance LED tube Osram SubstiTUBE T5 HF 17 W/6500 K 1149.00 mm – 4058075543225

LEDVANCE

Ledvance LED tube Osram SubstiTUBE T5 HF 17 W/6500 K 1149.00 mm – 4058075543225

Product number: 4058075543225

Immediately available

e
a g
Datasheet

€22.99


Content: 1 Stück

Prices incl. VAT plus shipping costs net €19.32

Product information "Ledvance LED tube Osram SubstiTUBE T5 HF 17 W/6500 K 1149.00 mm – 4058075543225"

LED tubes for electronic ballasts. Product properties: Retrofit replacement of existing T5 lamps on HF ballasts. Glass lamp tube with splinter protection for applications e.g. in the food industry. High color consistency: ≤ 5 sdcm (threshold value unit). Lifespan: up to 50,000 h. Flicker arm according to EU 2019/2020. Protection class: IP20. Product advantages: No passages thanks to glass technology. Splitter protection thanks to special PET coating. Simple, faster and safe lamp exchange without rewiring. High luminous flux for demanding lighting tasks. Areas of application: offices, public institutions. Supermarkets and department stores. Industry. General lighting in ambient temperatures of -20 ...+45 ° C. Technical equipment: Suitable for operation on electronic ballasts



ECG compatibility

Electronic transformers were all first developed for conventional halogen, fluorescent or compact fluorescent lamps and not for lamps with integrated electronic like LED lamps. Therefore, LEDVANCE is providing a list of electronic control gears (ECG) that have been tested and proven to be compatible with our range of LED lamps

Follow this link to the ECG compatibility list

Downloads & Documents

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Electrical data
operating frequency: 20-75 Hz
energy efficiency index: E
lifetime: 50000 h
system power: 17
switching cycles: 200000
Casing
ballproof: no
fire protection: no
form type: linear
protection type: IP20
material: glass
Photometric data
dimmable: no
color code: 865
color: white
color temperature [Kelvin]: 6500
color rendering index [CRI]: >80
lamp type: LED
inclusive lamp: yes
socket: G5
start time: 0,5 s
lum flux: 2400 lm
Logistic data
country of origin: China
Dimensions & packaging
EAN 4058075543225

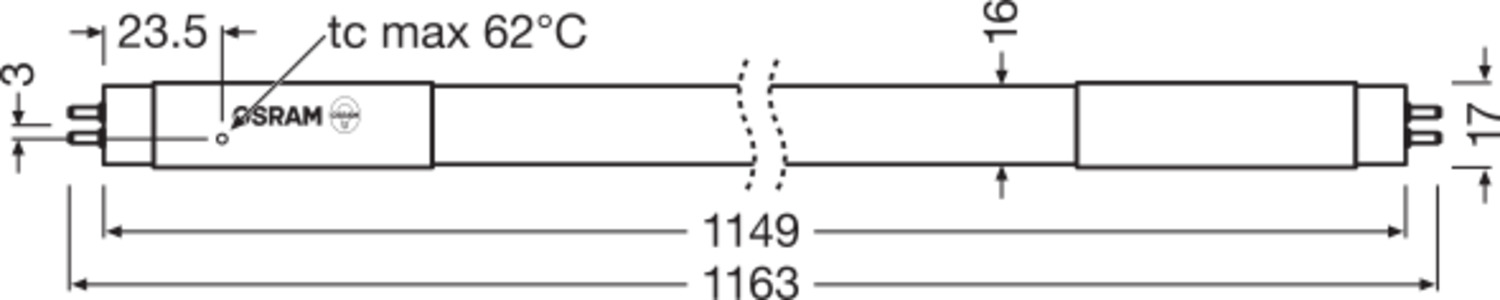

Length 1149 mm
Width 17 mm
Height 17 mm
Weight 155 g
