Ledvance LED tube Osram SubstiTUBE T5 HF 18 W/6500 K 1449.00 mm – 4058075543164

LEDVANCE

Ledvance LED tube Osram SubstiTUBE T5 HF 18 W/6500 K 1449.00 mm – 4058075543164

Product number: 4058075543164

Immediately available

d
a g
Datasheet

€24.95


Content: 1 Stück

Prices incl. VAT plus shipping costs net €20.97

Product information "Ledvance LED tube Osram SubstiTUBE T5 HF 18 W/6500 K 1449.00 mm – 4058075543164"

LED tubes for electronic ballasts. Product properties: Retrofit replacement of existing T5 lamps on HF ballasts. Glass lamp tube with splinter protection for applications e.g. in the food industry. High color consistency: ≤ 5 sdcm (threshold value unit). Lifespan: up to 50,000 h. Flicker arm according to EU 2019/2020. Protection class: IP20. Compatible with many commercially available electronic ballasts (see also Compatibility list ). Product advantages: No passages thanks to glass technology. Simple, faster and safe lamp exchange without rewiring. High luminous flux for demanding lighting tasks. Areas of application: offices, public institutions. Supermarkets and department stores. Industry. General lighting in ambient temperatures of -20 ...+45 ° C.



ECG compatibility

Electronic transformers were all first developed for conventional halogen, fluorescent or compact fluorescent lamps and not for lamps with integrated electronic like LED lamps. Therefore, LEDVANCE is providing a list of electronic control gears (ECG) that have been tested and proven to be compatible with our range of LED lamps

Follow this link to the ECG compatibility list

Downloads & Documents

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Electrical data
operating frequency: 20-75 Hz
energy efficiency index: D
lifetime: 50000 h
system power: 18
switching cycles: 200000
Casing
ballproof: no
fire protection: no
form type: linear
protection type: IP20
material: glass
Photometric data
dimmable: no
color code: 865
color: white
color temperature [Kelvin]: 6500
color rendering index [CRI]: >80
lamp type: LED
inclusive lamp: yes
socket: G5
start time: 0,5 s
lum flux: 2800 lm
Logistic data
country of origin: China
Dimensions & packaging
EAN 4058075543164

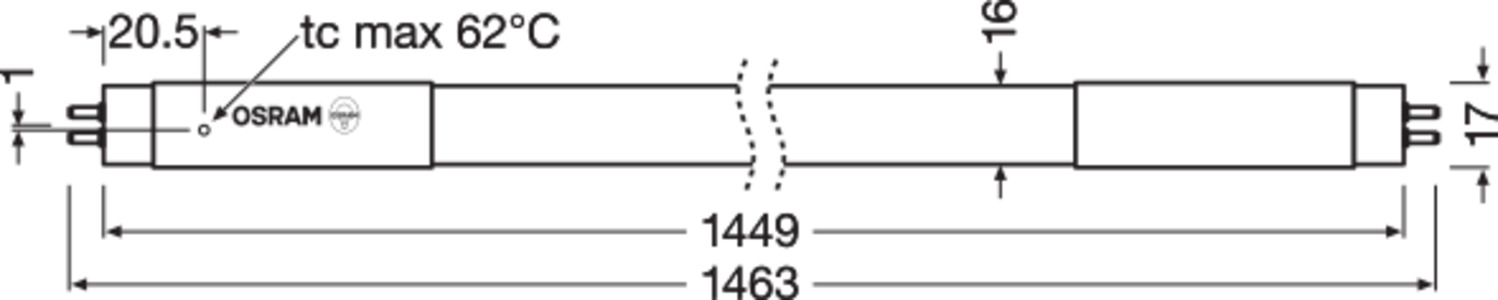

Length 1449 mm
Width 17 mm
Height 17 mm
Weight 192 g
