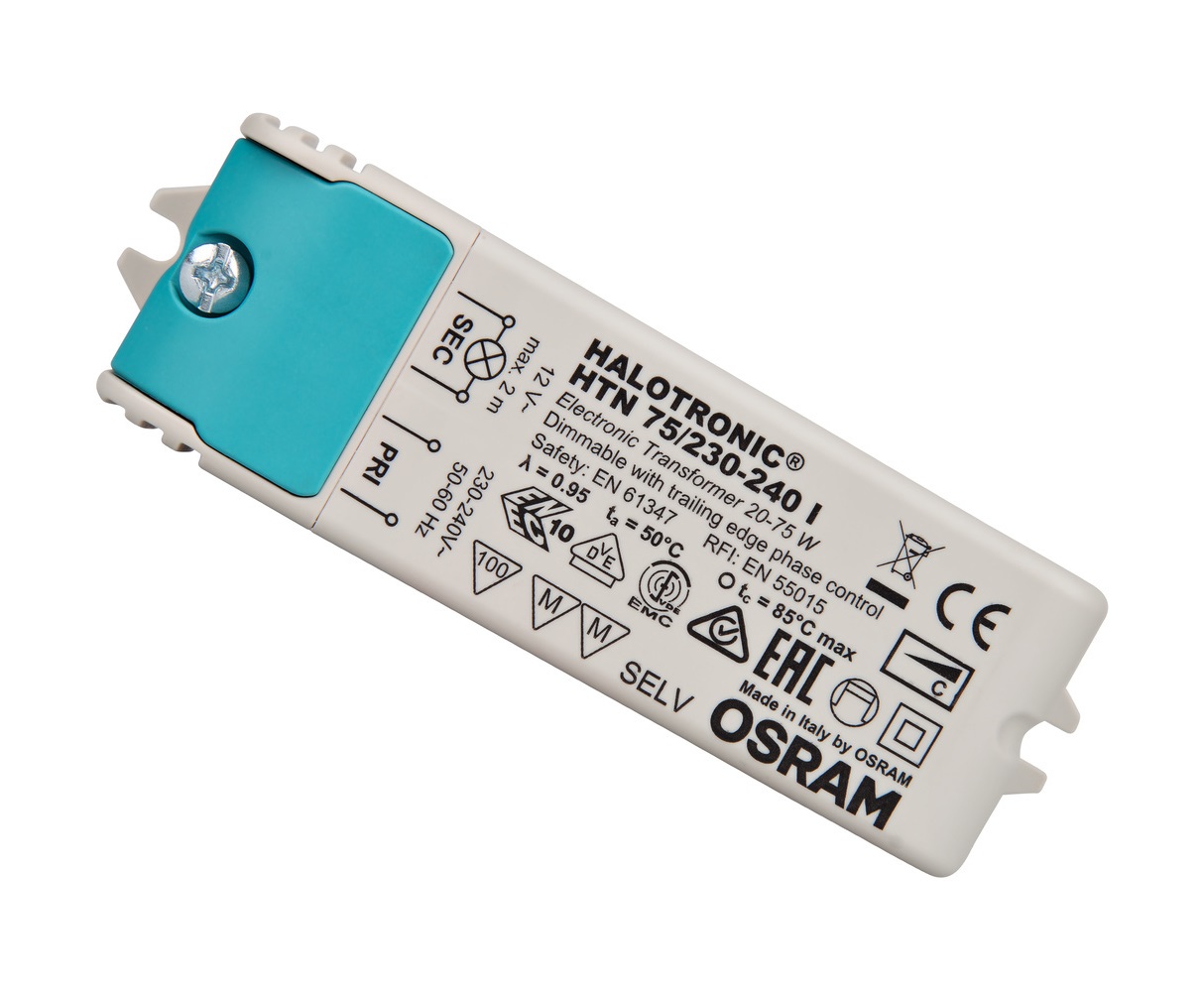

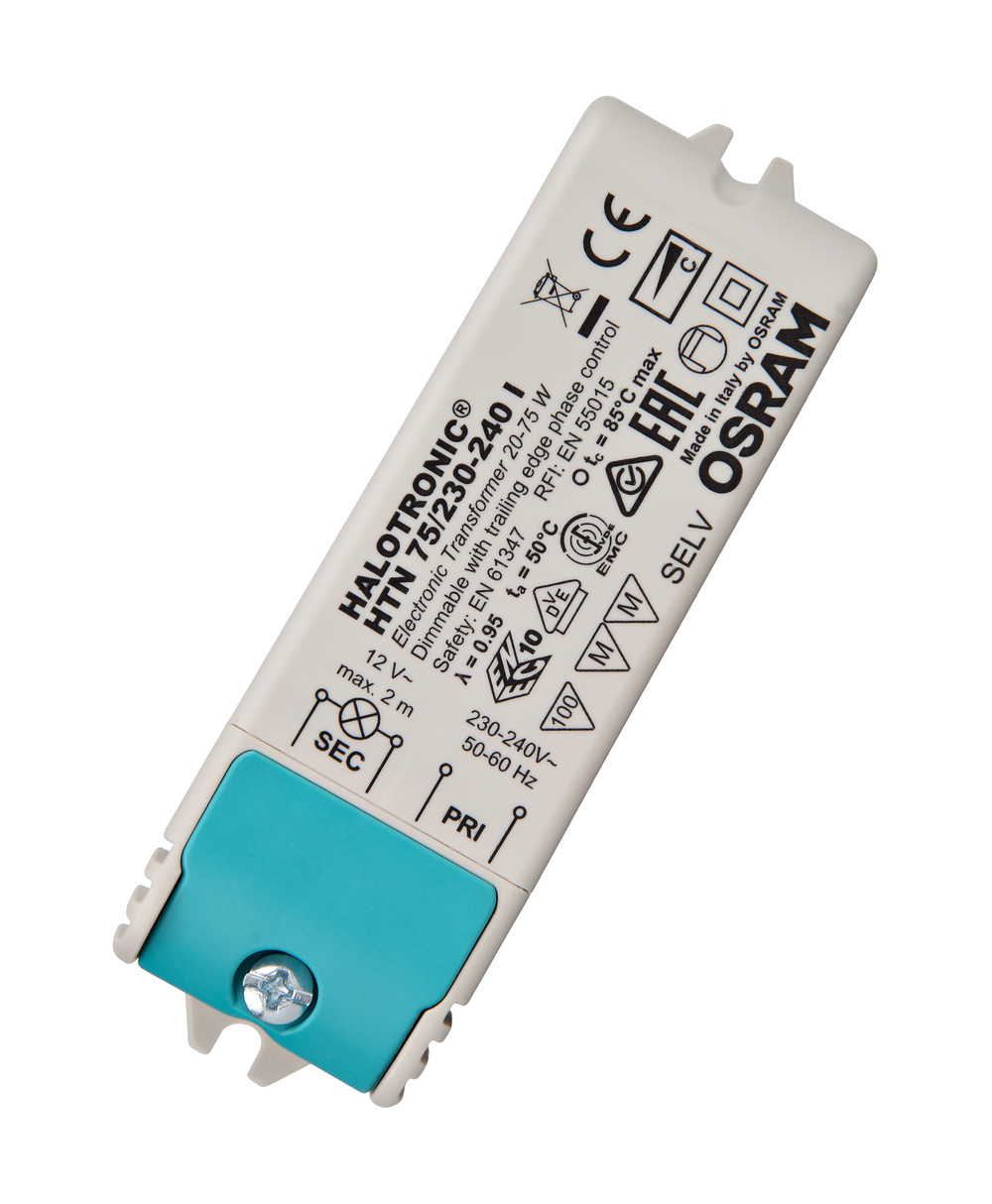

Ledvance transformator HALOTRONIC-COMPACT HTM, HTN 75/230-240 I - 4008321073037
LEDVANCE
Ledvance transformator HALOTRONIC-COMPACT HTM, HTN 75/230-240 I - 4008321073037
Product number:
4008321073037
Immediately available
€29.20
Content:
1 Stück
Prices incl. VAT plus shipping costs net €24.54
Product information "Ledvance transformator HALOTRONIC-COMPACT HTM, HTN 75/230-240 I - 4008321073037"
Electronic transformer for halogen-nieder volt lamps. Product properties: Network frequency: 50 ... 60 Hz. Press disorder: according to EN 55015 (A1: 2007)/CISPR 15, EN 55022. Network current waves according to EN 61000-3-2. Immunity, resistance according to EN 61547. Security: according to EN 61347. Short -circuit protection, overload protection, over -temperature protection: electronically reversible. Galvanic separation between the primary and secondary side. Secondary switching between electronic transformer and lamp is not permitted. Energy efficiency: ≥ 91 % (according to the ERP regulation 2012/1194/EC). Dimmable via phase intersection (without HTN) and phase section. Product advantages: very low loss performance due to high efficiency. Train relief suitable for different cable types (HTM). Suitable for place critical installation through compact functional design. Extremely compact transformer for very place -critical installation conditions (HTN). Lamp -friendly operation in the entire partial load area for long lamp life. Areas of application: effect and accent lighting. Living room. Object lighting. Conference rooms. Restaurants. Furniture installation and furniture supercovering lights. Shop lighting. Event rooms.
Downloads & Documents
Electrical data
| system power: | 79 |
|---|
Casing
| form type: | linear |
|---|---|
| protection type: | IP20 |
| material: | plastic |
| protection class: | II |
Photometric data
| dimmable: | yes |
|---|---|
| dimming range to: | 100 % |
| color: | grey |
Logistic data
| country of origin: | Italy |
|---|

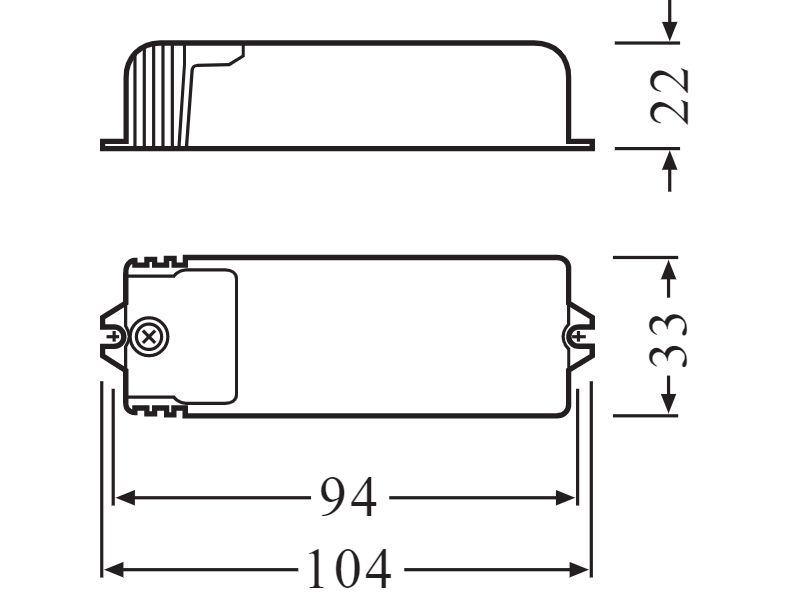

Dimensions & packaging
| EAN | 4008321073037 |
|---|---|
| Length | 104 mm |
| Width | 33 mm |
| Height | 22 mm |
| Weight | 68 g |
