Lunatone Lichtmanagement LED-Dimmer DALI RGB CV 10A - 89453839
Immediately available
€96.50
Prices incl. VAT plus shipping costs net €81.09
Product information "Lunatone Lichtmanagement LED-Dimmer DALI RGB CV 10A - 89453839"

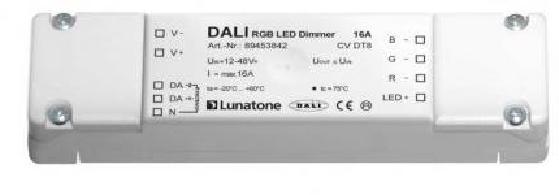

The Lunatone RGB constant voltage DALI LED Dimmer DALI RGB CV 10 A with 10 A maximum input currents is suitable for the control of constant voltage LED modules. The maximum input current can be distributed on the channels at will.
The dimmer has a DT8 function, which allows the control of light level and color (DALI DT8, Type RGBWAF) via one DALI adress. With the aid of the Color & Dim function, control is possible via 2 DALI addresses, one for adjusting the light level and one for adjusting the color. In SwitchDIM2 operation, light level and color can be controlled via 2 switch inputs without DALI.
The dimming range is between 0.1 and 100%.
The Lunatone DALI LED dimmer has an adjustable PMW frequency (122Hz / 244Hz / 488Hz / 976Hz). The supply voltage is 12V to 48V DC.
The RGB constant voltage LED dimmer has a low standby power consumption and a high efficiency.
The dimmer can be configurated via the PC software DALI-Cockpit and the DALI USB software. It is suitable for installation.
Downloads & Documents
Login
Electrical data
| rated voltage: | 12-48 V |
|---|---|
| conformity: | CE |
| lifetime: | 100000 h |
Casing
| ballproof: | no |
|---|---|
| max housing temperature (tc-max): | 75 °C |
| protection type: | IP20 |
| mounting: | Installation |
| environment temperature from: | -20 °C |
| environment temperature to: | 60 °C |
Photometric data
| color: | white |
|---|---|
| interface: | DALI |
Logistic data
| item category: | light management |
|---|

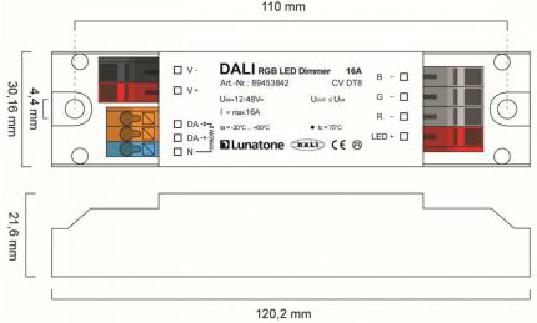

Dimensions & packaging
| EAN | 9010342012112 |
|---|---|
| Length | 120 mm |
| Width | 30 mm |
| Height | 22 mm |
| Weight | 61 g |
