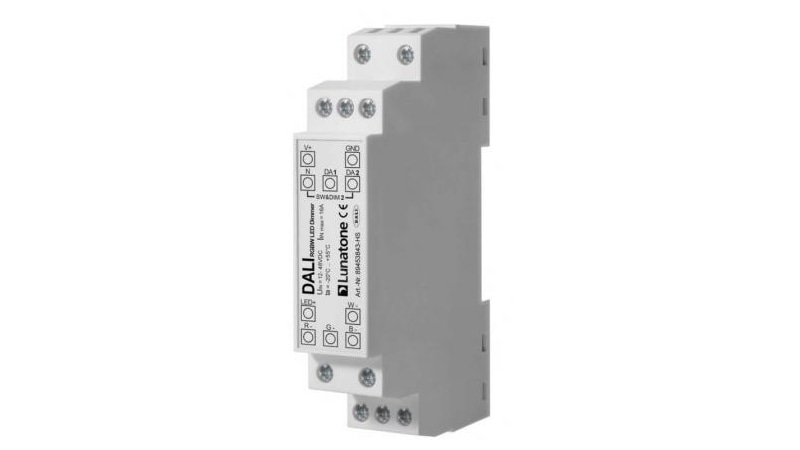

Lunatone Lichtmanagement LED-Dimmer DALI RGBW CV 16A DIN Rail - 89453843-HS
Lunatone Lichtmanagement LED-Dimmer DALI RGBW CV 16A DIN Rail - 89453843-HS
Immediately available
€124.63
Prices incl. VAT plus shipping costs net €104.73
Product information "Lunatone Lichtmanagement LED-Dimmer DALI RGBW CV 16A DIN Rail - 89453843-HS"
The Lunatone RGBW constant voltage DALI LED Dimmer DALI RGBW CV 16A with 16 A maximum input currents is suitable for the control of constant voltage LED modules. The maximum input current can be distributed on the channels at will.
The dimmer has a DT8 function, which allows the control of light level and color (DALI DT8, Type RGBWAF) via one DALI adress. With the aid of the Color & Dim function, control is possible via 2 DALI addresses, one for adjusting the light level and one for adjusting the color. In SwitchDIM2 operation, light level and color can be controlled via 2 switch inputs without DALI.
The dimming range is between 0.1 and 100%.
The Lunatone DALI LED dimmer has an adjustable PMW frequency (122Hz / 244Hz / 488Hz / 976Hz). The supply voltage is 12V to 48V DC.
The RGBW constant voltage LED dimmer has a low standby power consumption and a high efficiency.
The dimmer can be configurated via the PC software DALI-Cockpit and the DALI USB software. It is suitable for DIN rail mounting.
Downloads & Documents
Login
Electrical data
| rated voltage: | 12-48 V |
|---|---|
| conformity: | CE |
| lifetime: | 100000 h |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| protection type: | IP20 |
| mounting: | rail |
| environment temperature from: | -20 °C |
| environment temperature to: | 55 °C |
Photometric data
| color: | white |
|---|---|
| interface: | DALI |
| solar panel: | no |
Logistic data
| item category: | light management |
|---|

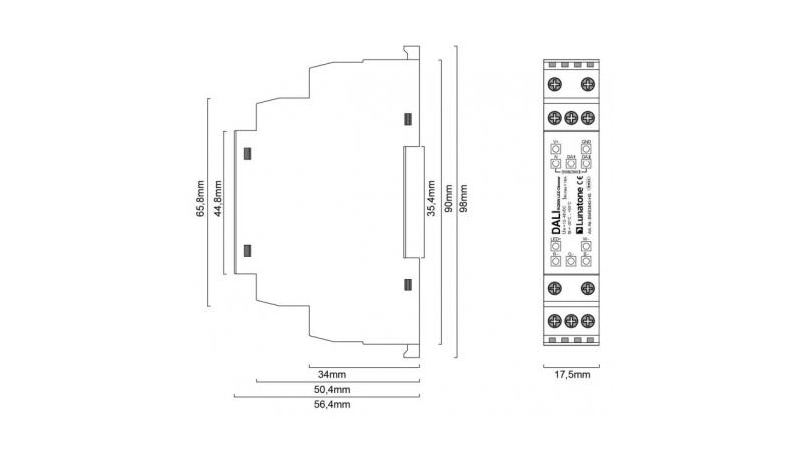

Dimensions & packaging
| EAN | 9010342012242 |
|---|---|
| Length | 98 mm |
| Width | 17 mm |
| Height | 56 mm |
| Weight | 66 g |
