Lunatone Light Management Control Module DALI GC - 24033450
Shipping in 14 day(s)
€53.61
Prices incl. VAT plus shipping costs net €45.05
Product information "Lunatone Light Management Control Module DALI GC - 24033450"

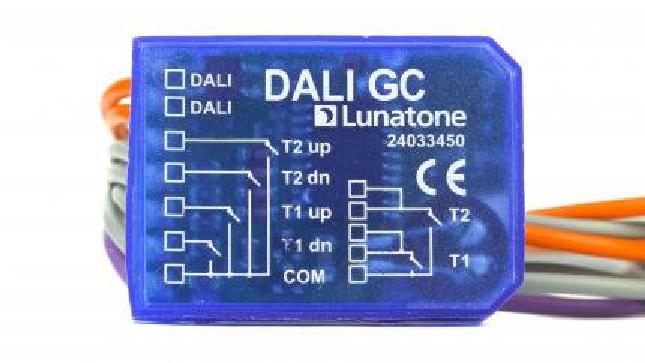

The Lunatone light management control module DALI GC is a small compact module for controlling two pre-defined DALI groups with conventional single or double-light switches.

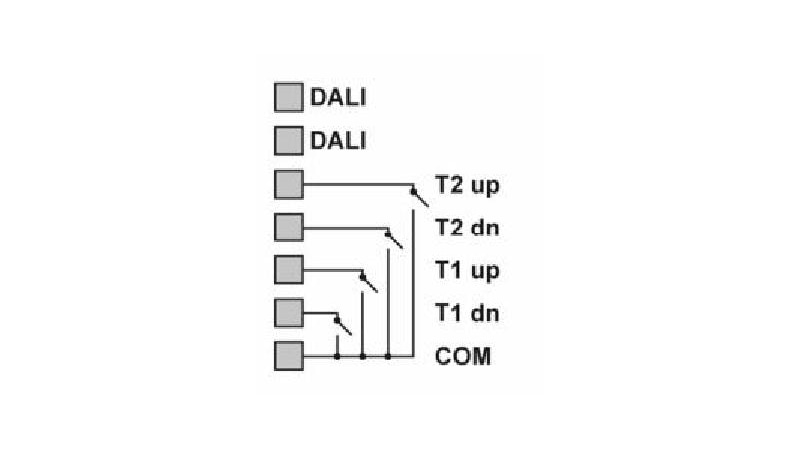

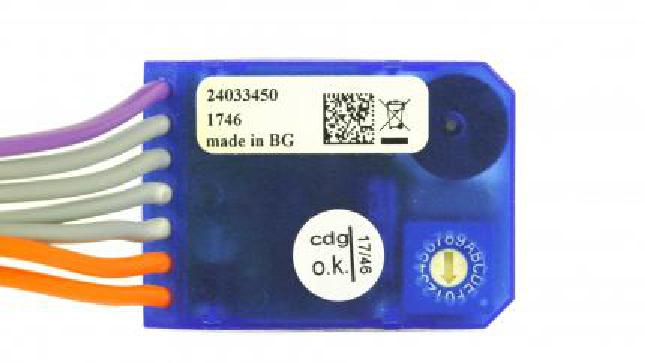

The corresponding DALI groups are selected by means of a rotary switch on the module housing. The DALI GC offers the possibility to address luminaires and to divide them into groups. Conventional momentary switches can be connected to the inputs. The monumentary switches are connected directly to the module (potential free contacts). Multiple modules can be used on the same DALI line.
The DALI GC can be installed in a flush-mounted box directly behind the light button.
The module is supplied directly via the DALI line so that it does not have to be connected to the mains.
Downloads & Documents
Login
Electrical data
| rated voltage: | DALI bus V |
|---|---|
| conformity: | CE |
Casing
| protection type: | IP20 |
|---|---|
| mounting: | flush mounting |
| environment temperature to: | 50 °C |
Photometric data
| color: | blue |
|---|
Logistic data
| item category: | light management |
|---|
Dimensions & packaging
| EAN | 9010342010514 |
|---|---|

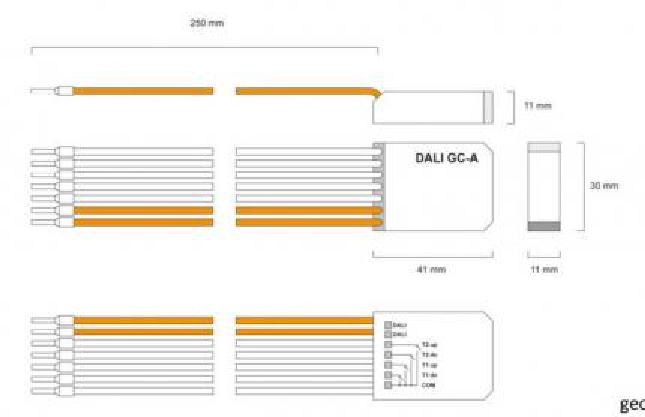

| Length | 41 mm |
| Width | 11 mm |
| Height | 30 mm |
| Weight | 44 g |
