Lunatone Light Management DALI Real Time Clock DALI RTC Timer DIN Rail - 86459531-HS
Lunatone Light Management DALI Real Time Clock DALI RTC Timer DIN Rail - 86459531-HS
Shipping in 14 day(s)
€154.12
Prices incl. VAT plus shipping costs net €129.51
Product information "Lunatone Light Management DALI Real Time Clock DALI RTC Timer DIN Rail - 86459531-HS"

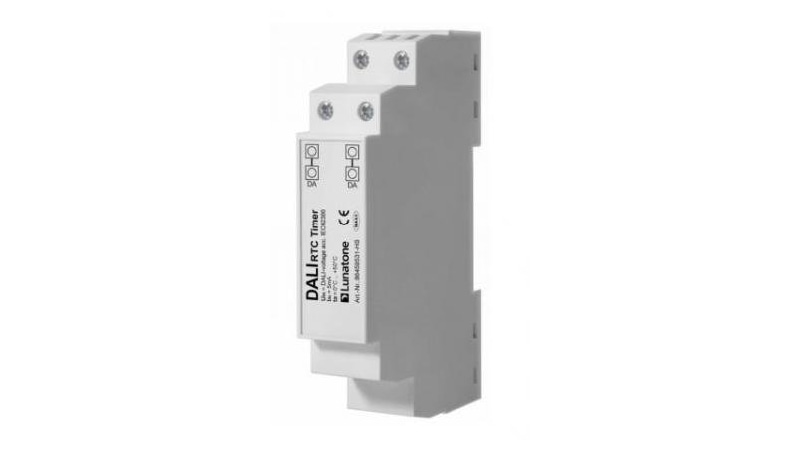

DALI real-time clock for query of date and time
The DALI real-time clock RTC enables the configuration and query of date and time via the DALI bus. It has an integrated timer function with up to 28 entries and an astro clock function (from firmware 2.4). The mounting takes place on a DIN rail.
Easy configuration via software tool
Each entry consists of a weekday mask, a time stamp and a DALI command. The schedule can be easily created using the DALI Cockpit software tool and the DALI USB interface.

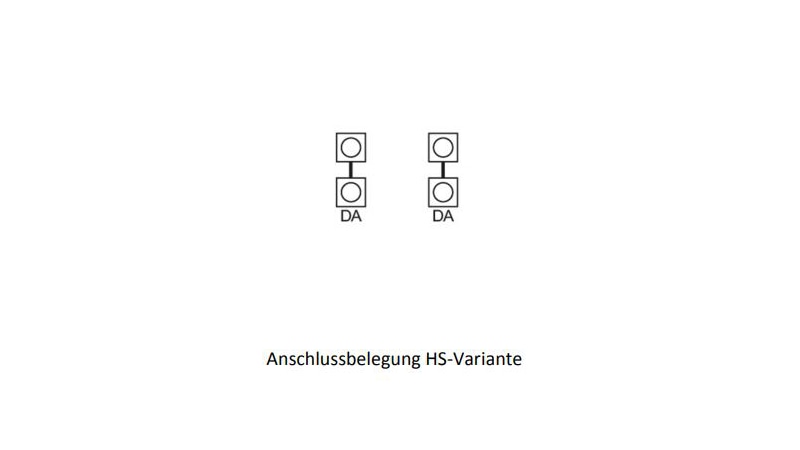

The DALI RTC module is powered directly via the DALI bus, so no additional connection is required. It contains an internal battery, the time is set to local time (GMT + 1) during production. The installation is done by DALI double clamp.
Downloads & Documents
Datasheet-Lunatone-Light-Management-DALI-Real-Time-Clock-DALI-RTC-Timer-86459531-HS-DIN-rail_1592169046_7
Konformitaetserklaerung-Lunatone-Lichtmanagement-DALI-Echtzeituhr-DALI-RTC-Timer-86459531-HS-Hutschiene_1592169046_8
Datenblatt-Lunatone-Lichtmanagement-DALI-Echtzeituhr-DALI-RTC-Timer-86459531-HS-Hutschiene_1592169046_9
Login
Electrical data
| operating frequency: | 0/50-60 Hz |
|---|---|
| through wiring: | no |
| rated voltage: | DALI bus V |
| conformity: | CE |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| protection type: | IP20 |
| mounting: | rail |
| environment temperature to: | 50 °C |
Photometric data
| color: | white |
|---|---|
| interface: | DALI |
| solar panel: | no |
Logistic data
| item category: | light management |
|---|

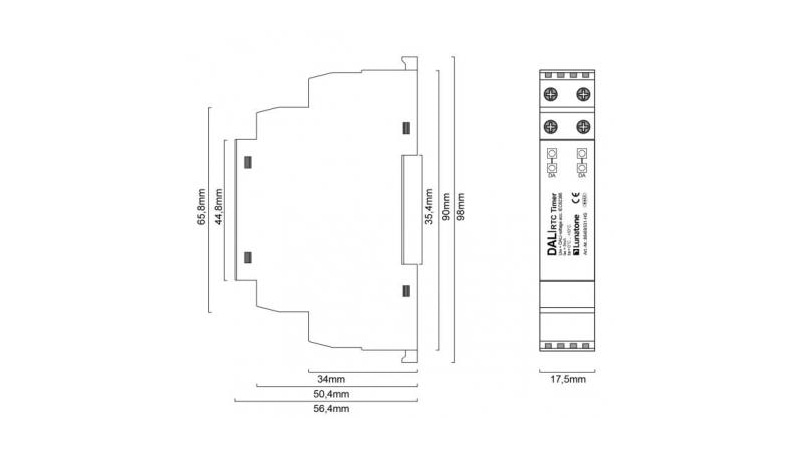

Dimensions & packaging
| EAN | 9010342010422 |
|---|---|
| Length | 98 mm |
| Width | 18 mm |
| Height | 56 mm |
| Weight | 51 g |
