Product information "Lunatone Light Management DALI RGBW LED Dimmer CV 8A flush mounting 59x33x15mm - 86458509"
Using the DALI LED dimmer with RGBW color control and DT8 or Color & Dim mode from Lunatone, you can control constant voltage LED modules. The dimmer is suitable for luminaire installation.
The DT8 mode has one DALI address for controlling brightness and color (DALI DT8, type RGBWAF). In the Color & Dim operating mode, control is effected via 2 DALI addresses, one for adjusting the brightness and one for adjusting the color. The SwitchDim2 feature allows operation via 2 button inputs, so brightness and color can be controlled without DALI. The dimming range is between 0.1% and 100%.
The Lunatone DALI RGBW LED Dimmer CV has a switchable PWM frequency (122Hz / 244Hz / 488Hz / 976Hz) and a supply voltage of 12V to 48V DC. The maximum connection current of 8 A can be distributed arbitrarily to the channels.
You benefit from low standby losses at a high efficiency. The DALI LED dimmer can be configured via the PC software DALICockpit and the DALI USB interface. It comes in a user-friendly initial state.
The housing is IP20 protected.Downloads & Documents
Electrical data
| rated voltage: | 12-48 V |
|---|---|
| conformity: | CE |
| lifetime: | 100000 h |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| max housing temperature (tc-max): | 75 °C |
| protection type: | IP20 |
| mounting: | Installation |
| environment temperature from: | -20 °C |
| environment temperature to: | 60 °C |
Photometric data
| color: | white |
|---|---|
| interface: | DALI |
Logistic data
| item category: | light management |
|---|
Dimensions & packaging
| EAN | 9010342012211 |
|---|---|

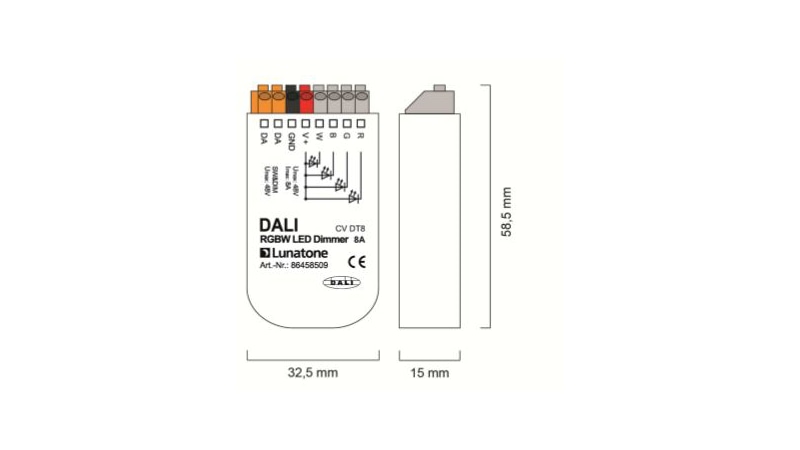

| Length | 59 mm |
| Width | 33 mm |
| Height | 15 mm |
| Weight | 18 g |
