Lunatone Light Management DALI Sequencer DIN Rail - 86459582-HS
Lunatone Light Management DALI Sequencer DIN Rail - 86459582-HS
Shipping in 14 day(s)
€198.34
Prices incl. VAT plus shipping costs net €166.67
Product information "Lunatone Light Management DALI Sequencer DIN Rail - 86459582-HS"
The Lunatone Light Management DALI Sequencer DIN Rail is an IP20 protected DIN rail control module for automatically running DALI command sequences with 4 memory sequences. There are 4 switching inputs for the mains voltage.
The sequences can be called with GO TO SCENE commands or alternatively started by pushing the corresponding button. A sequence can combine various command-sequences and scene-recalls. A command sequence can contain up to 19 DALI commands. The sequence can be retrieved singly ore cyclicly.
The DALI Sequencer also allows group assignment and broadcast control. The configuration is easy via the DALI-Cockpit software.

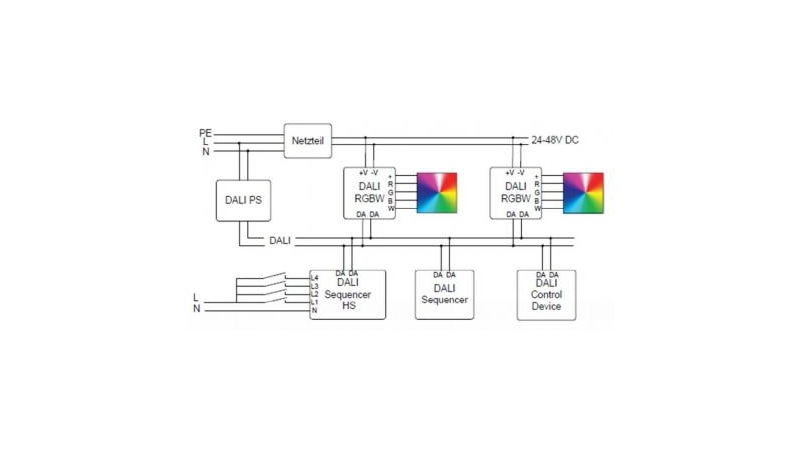

The Lunatone DALI Sequencer DIN rail is multimaster capable: several modules can be installed in one DALI circuit. Since the module is supplied by the DALI circuit, no additional connection is needed.
Downloads & Documents
Login
Electrical data
| rated voltage: | DALI bus V |
|---|---|
| conformity: | CE |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| protection type: | IP20 |
| mounting: | rail |
| environment temperature from: | -10 °C |
| environment temperature to: | 50 °C |
Photometric data
| sensor: | no |
|---|---|
| color: | white |
| interface: | DALI |
| solar panel: | no |
Logistic data
| item category: | light management |
|---|

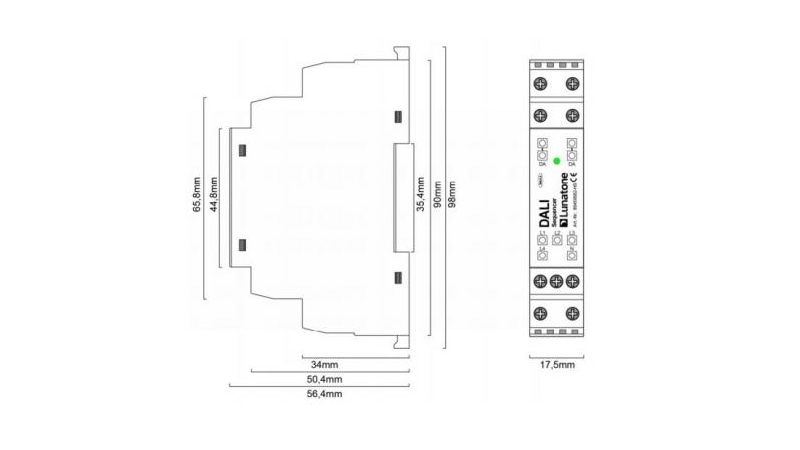

Dimensions & packaging
| EAN | 9010342010408 |
|---|---|
| Length | 98 mm |
| Width | 18 mm |
| Height | 56 mm |
| Weight | 56 g |
