Lunatone Light Management Interface 0-10V to DALI 2-CH DIN Rail - 86468353-2-HS
Lunatone Light Management Interface 0-10V to DALI 2-CH DIN Rail - 86468353-2-HS
Shipping in 14 day(s)
€96.50
Prices incl. VAT plus shipping costs net €81.09
Product information "Lunatone Light Management Interface 0-10V to DALI 2-CH DIN Rail - 86468353-2-HS"

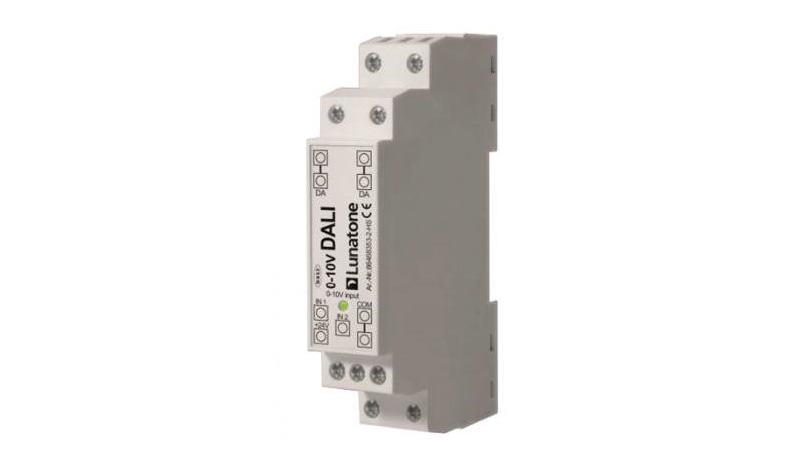

The Lighting Management Interface 0-10V to DALI 3-CH DIN Rail from Lunatone is an IP20-protected 2 channel compact DALI converter module for the conversion of 0-10V control signals into DALI signals for DIN rail mounting.
The 0-10 V voltage is transformed to a DALI dim level and DALI command OFF and sent to the defined effective range of the DALI line. A change in the 0-10 V input voltage (> 1%) is used as event trigger. The module is supplied with 12 V to 24 V DC.
Effective range, conversion characteristics and OFF function can be configured for each channel using the DALI Cockpit software and the DALI USB Interface.
The interface 0-10V to DALI 3-CH DIN rail has a passive 0-10 V output, suitable for control with a 0-10 V analogue signal.

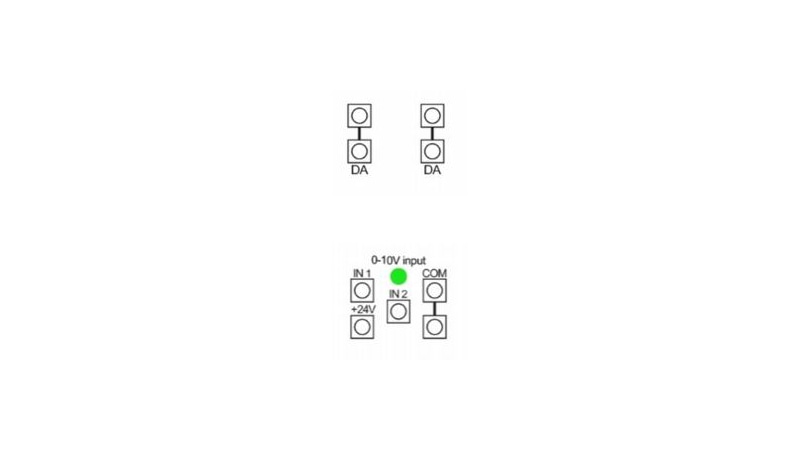

The module requires an external DALI power supply for operation. The DALI line and the 0-10 V input respectively the 24 V supply voltage are galvanically isolated.
Downloads & Documents
Login
Electrical data
| rated voltage: | 12-24 V |
|---|---|
| conformity: | CE |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| protection type: | IP20 |
| mounting: | rail |
| environment temperature from: | -20 °C |
| environment temperature to: | 60 °C |
Photometric data
| sensor: | no |
|---|---|
| color: | white |
| interface: | DALI |
| solar panel: | no |
Logistic data
| item category: | light management |
|---|

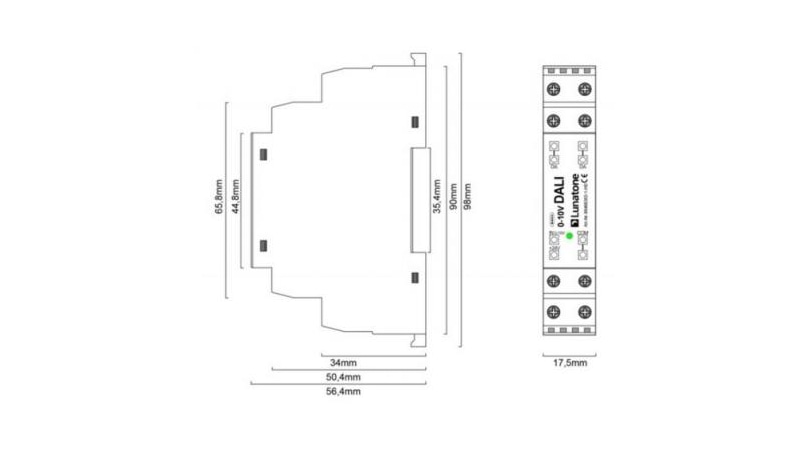

Dimensions & packaging
| EAN | 9010342010620 |
|---|---|
| Length | 98 mm |
| Width | 56 mm |
| Height | 18 mm |
| Weight | 55 g |
