Lunatone Light Management LED-Dimmer DALI 1Ch CC 1500mA - 89453844-1500DE
Lunatone Light Management LED-Dimmer DALI 1Ch CC 1500mA - 89453844-1500DE
Shipping in 14 day(s)
€73.71
Prices incl. VAT plus shipping costs net €61.94
Product information "Lunatone Light Management LED-Dimmer DALI 1Ch CC 1500mA - 89453844-1500DE"

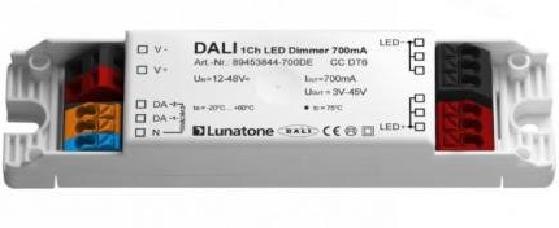

Constant current DALI DT6 LED dimmer
With the 1-channel DALI DT6 LED dimmer from Lunatone, constant current LED modules can be triggered up to 1500 mA which allows you to control the light via DALI MC / Switch / Touchpanel. The dimming range is between 0.1% and 100%. The dimmer has a switchable PWM frequency (122Hz / 244Hz / 488Hz / 976Hz). The supply voltage is 12V-48V DC; the output voltage is up to 45VDC.
Integrated SwitchDim2 function
In SwitchDim2 mode, operation is carried out via 2 push-button inputs, allowing control of brightness and switching of scenes without DALI. As of FW 4.0, the corridor function can also be used for direct control with a motion detector.
The Lunatone DALI LED dimmer has a built-in short-circuit protection. You benefit from low standby losses and high efficiency. The configuration is made via the PC software DALICockpit or the DALI USB Interface. You get the dimmer in a user-friendly delivery state. It is suitable for built-in mounting.
Downloads & Documents
Declaration-of-Confirmity-Lunatone-Light-Management-LED-Dimmer-DALI-1Ch-CC-1500mA-89453844-1500DE_1592168958_3
Konformitaetserklaerung-Lunatone-Lichtmanagement-LED-Dimmer-DALI-1Ch-CC-1500mA-89453844-1500DE_1592168953_6
Datenblatt-Lunatone-Lichtmanagement-LED-Dimmer-DALI-1Ch-CC-1500mA-89453844-1500DE_1592168953_7
Login
Electrical data
| rated voltage: | 12-48 V |
|---|---|
| conformity: | CE |
| lifetime: | 100000 h |
Casing
| form type: | linear |
|---|---|
| max housing temperature (tc-max): | 75 °C |
| protection type: | IP20 |
| mounting: | Installation |
| environment temperature from: | -20 °C |
| environment temperature to: | 60 °C |
Photometric data
| dimming range to: | 100 % |
|---|---|
| color: | white |
| interface: | DALI |
Logistic data
| item category: | light management |
|---|

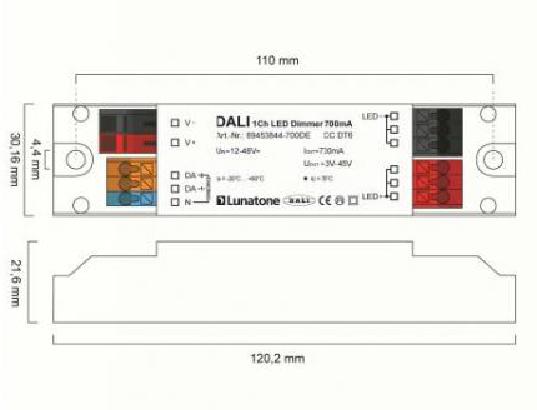

Dimensions & packaging
| EAN | 9010342011498 |
|---|---|
| Length | 120 mm |
| Width | 30 mm |
| Height | 22 mm |
| Weight | 61 g |
