Product information "Lunatone Light Management LED-Dimmer DALI 1Ch CC 350mA - 89453844-350"

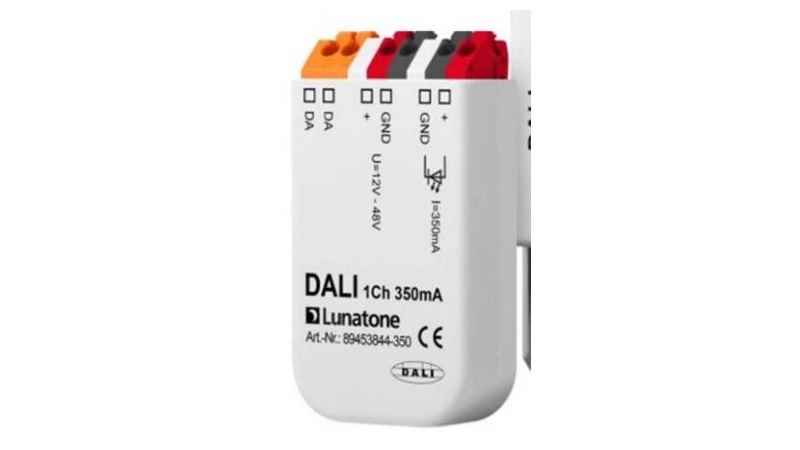

The Lunatone 1-channel constant current DALI LED Dimmer DALI 1Ch CC 350mA with max. input currents of 350mA is suitable for the control of constant current LED modules.
The SwitchDim2 mode allows to control the light level and colour and to switch scenes via 2 switch inputs without DALI. Up from FW 4.0, it is also possible to use a corridor function for direct control of the device with a motion detector.

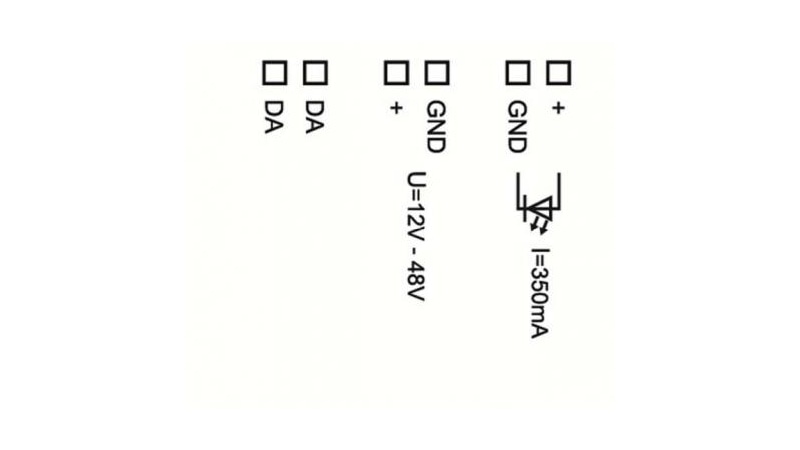

The dimming range is between 0.1 and 100%. The Lunatone DALI LED dimmer has an adjustable PMW frequency (122Hz / 244Hz / 488Hz / 976Hz). The supply voltage is 12V to 48V DC ; the output voltage is up to 45V DC.

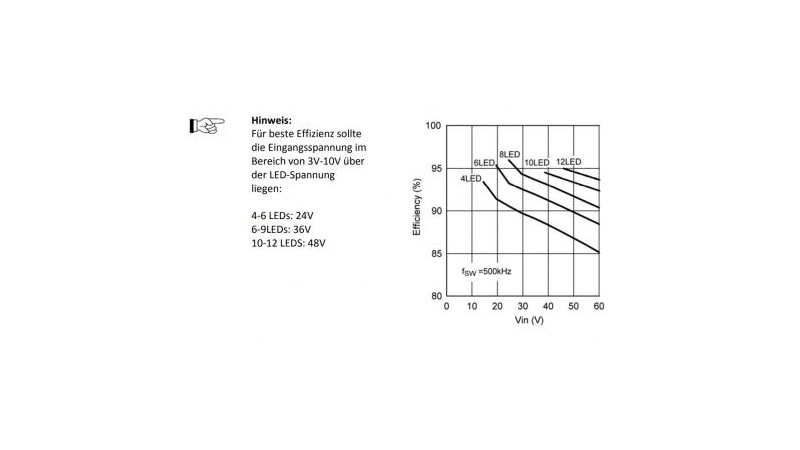

A short circuit protection is integrated. Additionally, the Lunatone 1-channel constant voltage LED dimmer has a low standby power consumption and a high efficiency.
Configuration takes place via the PC software DALI-Cockpit and the DALI USB software.
The dimmer is suitable for built-in mounting.
Downloads & Documents
Login
Electrical data
| rated voltage: | 12-48 V |
|---|---|
| conformity: | CE |
| lifetime: | 100000 h |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | linear |
| max housing temperature (tc-max): | 65 °C |
| protection type: | IP20 |
| mounting: | Installation |
| environment temperature from: | -15 °C |
| environment temperature to: | 50 °C |
Photometric data
| color: | white |
|---|---|
| interface: | DALI |
Logistic data
| item category: | light management |
|---|

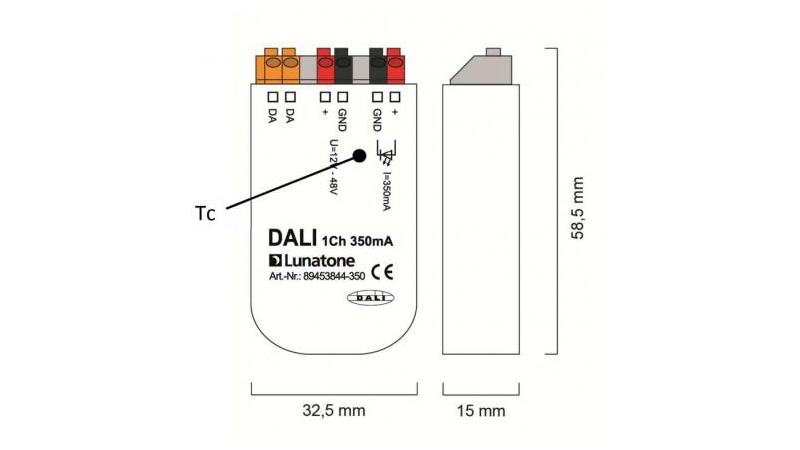

Dimensions & packaging
| EAN | 9010342011450 |
|---|---|
| Length | 59 mm |
| Width | 33 mm |
| Height | 15 mm |
| Weight | 18 g |
