Lunatone Light Management LED-Dimmer DALI 2Ch CC 500 mA gem- ceiling mouting - 89453845-500GMDE
Lunatone Light Management LED-Dimmer DALI 2Ch CC 500 mA gem- ceiling mouting - 89453845-500GMDE
Shipping in 14 day(s)
€84.43
Prices incl. VAT plus shipping costs net €70.95
Product information "Lunatone Light Management LED-Dimmer DALI 2Ch CC 500 mA gem- ceiling mouting - 89453845-500GMDE"

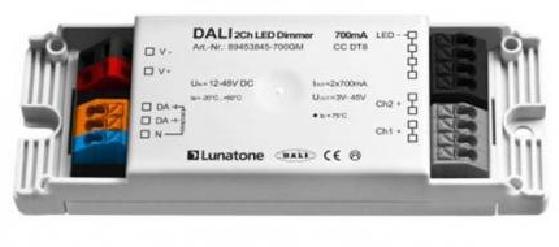

DALI LED dimmer for light regulation
The Lunatone 2-channel constant current DALI DT6 LED dimmer for connection currents of 500 mA enables light regulation via DALI MC / Switch / Touchpanel. It has a dimming range from 0.1% to 100% and a switchable PWM frequency (122Hz / 244Hz / 488Hz / 976Hz). It also has a common negative pole. The LED dimmer is suitable for ceiling void mounting.
DT6, Balance & Dim, Dim2Warm, SwitchDim2
In DT6 mode, the channels are controlled separately via 2 DALI addresses. In Balance & Dim mode, control takes place via 2 DALI addresses, one for adjusting the brightness and one for adjusting the channel distribution (e.g. color temperature). In Dim2Warm mode there is one DALI address for dimming with simultaneous change of the color temperature. The SwitchDim2 operating mode allows operation via 2 button inputs and thus the control of brightness and color temperature without DALI.
The supply voltage is 12V to 48V DC; the output voltage is up to 45VDC. The Lunatone DALI LED dimmer has a built-in short-circuit protection. You also benefit from low standby losses and high efficiency. The configuration takes place via the PC software DALI-Cockpit and the DALI USB interface. You get the LED dimmer in a user-friendly delivery state.
Downloads & Documents
Datasheet-Lunatone-Light-Management-LED-Dimmer-DALI-2Ch-CC-500-mA-gem-minus-89453845-500GMDE_1592169279_4
Konformitaetserklaerung-Lunatone-Lichtmanagement-LED-Dimmer-DALI-2Ch-CC-500-mA-gem-minus-89453845-500GMDE_1592169279_6
Datenblatt-Lunatone-Lichtmanagement-LED-Dimmer-DALI-2Ch-CC-500-mA-gem-minus-89453845-500GMDE_1592169279_7
Login
Electrical data
| rated voltage: | 12-48 V |
|---|---|
| lifetime: | 100000 h |
Casing
| ballproof: | no |
|---|---|
| max housing temperature (tc-max): | 75 °C |
| protection type: | IP20 |
| mounting: | Installation |
| environment temperature from: | -20 °C |
| environment temperature to: | 60 °C |
Photometric data
| dimming range to: | 100 % |
|---|---|
| color: | white |
| interface: | DALI |
Logistic data
| item category: | light management |
|---|

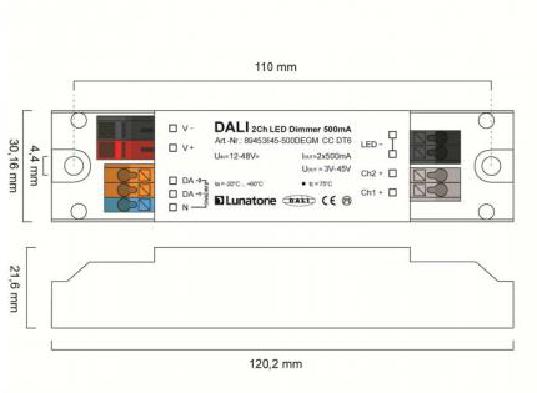

Dimensions & packaging
| EAN | 9010342011634 |
|---|---|
| Length | 120 mm |
| Width | 30 mm |
| Height | 22 mm |
