Lunatone Light Management LED-Dimmer DALI 3Ch LED Dimmer CV 16A - 89453831
Lunatone Light Management LED-Dimmer DALI 3Ch LED Dimmer CV 16A - 89453831
Shipping in 14 day(s)
€87.11
Prices incl. VAT plus shipping costs net €73.20
Product information "Lunatone Light Management LED-Dimmer DALI 3Ch LED Dimmer CV 16A - 89453831"

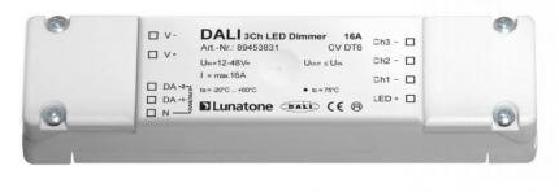

The Lunatone 3-channel constant voltage DALI LED Dimmer DALI 3Ch CV 16A with max. input currents of 16A is suitable for the control of constant voltage LED modules. The max. input current can be distributed to the channels at will.
The dimmer has a DT6 function, which allows individual channel control via 3 DALI addresses. With the aid of the Color & Dim function, control is possible via 2 DALI addresses, one for adjusting the light level and one for adjusting the color. In SwitchDIM2 operation, light level and color can be controlled via 2 button inputs without DALI.
The dimming range is between 0.1 and 100%.
The Lunatone DALI LED dimmer has an adjustable PMW frequency (122Hz / 244Hz / 488Hz / 976Hz). The supply voltage is 12V to 48V DC.
The 3-channel constant voltage LED dimmer has a low standby power consumption and a high efficiency.
The dimmer can be configurated via the PC software DALI-Cockpit and the DALI USB software. It is suitable for ceiling void mounting.
Downloads & Documents
Electrical data
| rated voltage: | 12-48 V |
|---|---|
| conformity: | CE |
| lifetime: | 100000 h |
Casing
| ballproof: | no |
|---|---|
| max housing temperature (tc-max): | 75 °C |
| protection type: | IP20 |
| mounting: | surface mounting |
| environment temperature from: | -20 °C |
| environment temperature to: | 60 °C |
Photometric data
| color: | white |
|---|---|
| interface: | DALI |
Logistic data
| item category: | light management |
|---|
Dimensions & packaging
| EAN | 9010342011788 |
|---|---|

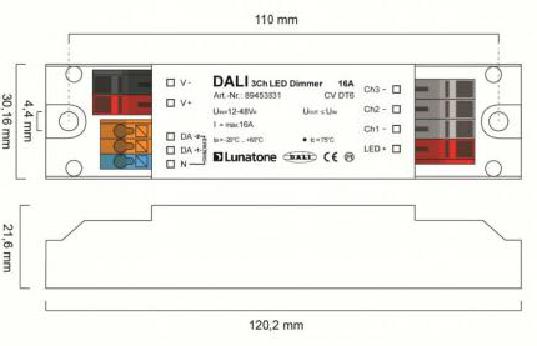

| Length | 120 mm |
| Width | 30 mm |
| Height | 22 mm |
| Weight | 61 g |
