Product information "Lunatone Light Management LED-Dimmer DALI 4Ch CC 500mA gem- - 89453855-500GM"

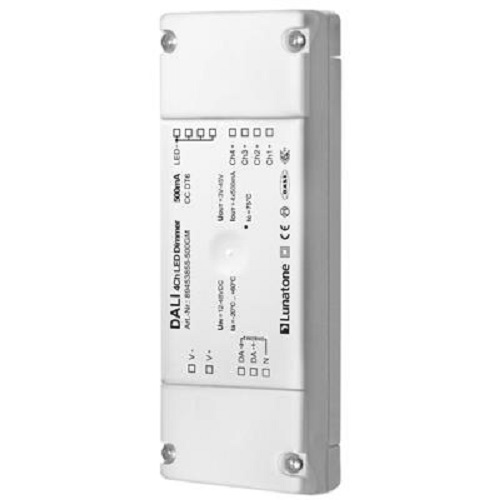

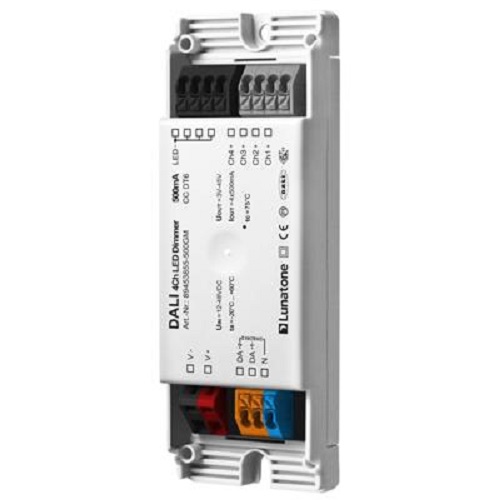

DALI DT6 LED dimmer for light regulation
The Lunatone 4-channel constant current DALI DT6 LED dimmer for connection currents of 500 mA enables light regulation via DALI MC / Switch / Touchpanel. It has a dimming range from 0.1% to 100% and a switchable PWM frequency (122Hz / 244Hz / 488Hz / 976Hz). It also has a common negative pole. The LED dimmer is suitable for flush mounting.
DT8, Dim2Warm, SwitchDim2
In DT6 mode, the channels are controlled separately via 4 DALI addresses. In Dim2Warm mode there is one DALI address for dimming with simultaneous change of the color temperature. The SwitchDim2 operating mode allows operation via 2 button inputs and thus the control of brightness and color temperature without DALI.
The supply voltage is 12V to 48V DC; the output voltage is up to 45VDC. The Lunatone DALI LED dimmer has a built-in short-circuit protection. You also benefit from low standby losses and high efficiency. The configuration takes place via the PC software DALI-Cockpit and the DALI USB interface. You get the LED dimmer in a user-friendly delivery state.
Downloads & Documents
Login
Electrical data
| rated voltage: | 12-48 V |
|---|---|
| lifetime: | 100000 h |
Casing
| ballproof: | no |
|---|---|
| max housing temperature (tc-max): | 75 °C |
| protection type: | IP20 |
| mounting: | Installation |
| environment temperature from: | -20 °C |
| environment temperature to: | 60 °C |
Photometric data
| dimming range to: | 100 % |
|---|---|
| color: | white |
| interface: | DALI |
Logistic data
| item category: | light management |
|---|

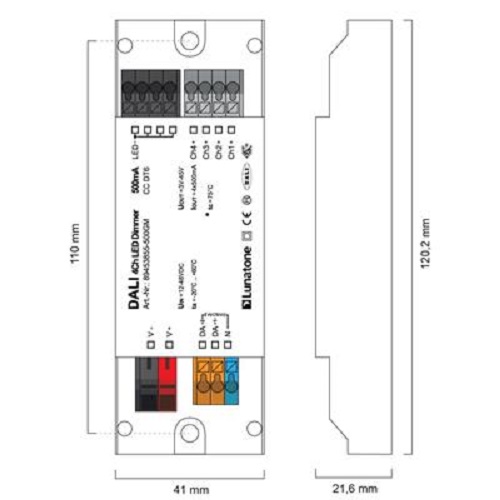

Dimensions & packaging
| EAN | 9010342011825 |
|---|---|
| Length | 120 mm |
| Width | 30 mm |
| Height | 22 mm |
| Weight | 81 g |
