Lunatone Light Management LED-Dimmer DALI CW-WW 500mA gem+ ceiling mouting 86458911-500DE

Product number: 86458911-500DE

Shipping in 14 day(s)

€113.92 (20% saved)

€91.13


Content: 1 Stück

Prices incl. VAT plus shipping costs net €76.58

Product information "Lunatone Light Management LED-Dimmer DALI CW-WW 500mA gem+ ceiling mouting 86458911-500DE"

DALI DT8 LED dimmer for light regulation

The Lunatone CW-WW constant current DALI DT8 LED dimmer for connection currents of 500 mA enables light regulation via DALI MC / Switch / Touchpanel. It has a dimming range from 0.1% to 100% and a switchable PWM frequency (122Hz / 244Hz / 488Hz / 976Hz). It also has a common positive pole. The LED dimmer is suitable for ceiling void mounting.

DT8, Balance & Dim, Dim2Warm, SwitchDim2

In DT8 mode, the light intensity and color temperature are controlled independently via one DALI address (DALI DT8, Colour Type Tc). In Balance & Dim mode, control takes place via 2 DALI addresses, one for adjusting the brightness and one for adjusting the channel distribution (e.g. color temperature). In Dim2Warm mode there is one DALI address for dimming with simultaneous change of the color temperature. The SwitchDim2 operating mode allows operation via 2 button inputs and thus the control of brightness and color temperature without DALI.

The supply voltage is 12V to 48V DC; the output voltage is up to 45VDC. The Lunatone DALI LED dimmer has a built-in short-circuit protection. You also benefit from low standby losses and high efficiency. The configuration takes place via the PC software DALI-Cockpit and the DALI USB interface. You get the LED dimmer in a user-friendly delivery state.

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Electrical data
rated voltage: 12-48 V
lifetime: 100000 h
Casing
ballproof: no
fire protection: no
max housing temperature (tc-max): 75 °C
protection type: IP20
mounting: Installation
environment temperature from: -20 °C
environment temperature to: 60 °C
Photometric data
dimming range to: 100 %
color: white
interface: DALI
Logistic data
item category: light management

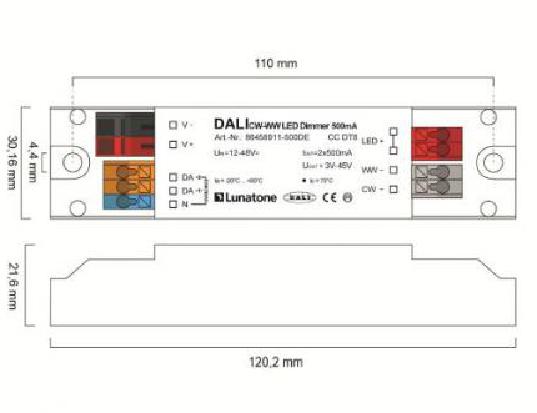

Dimensions & packaging
EAN 9010342011917
Length 120 mm
Width 30 mm
Height 22 mm
Weight 61 g
