Lunatone Light Management Radio Remote Control + Transceiver wDALI Remote White - 86459534-W+T
Lunatone Light Management Radio Remote Control + Transceiver wDALI Remote White - 86459534-W+T
Shipping in 14 day(s)
€214.41
Prices incl. VAT plus shipping costs net €180.18
Product information "Lunatone Light Management Radio Remote Control + Transceiver wDALI Remote White - 86459534-W+T"

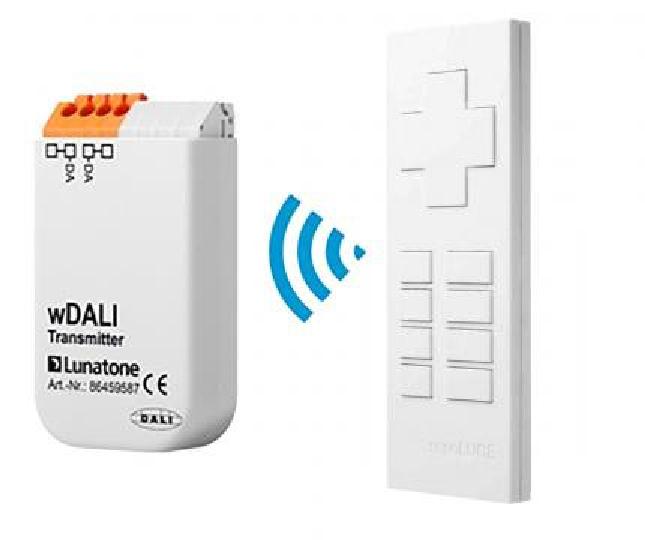

The Lunatone light management set, consisting of an IP20 protected wireless remote control and a transceiver wDALI Remote, enables the wireless radio control of DALI systems.

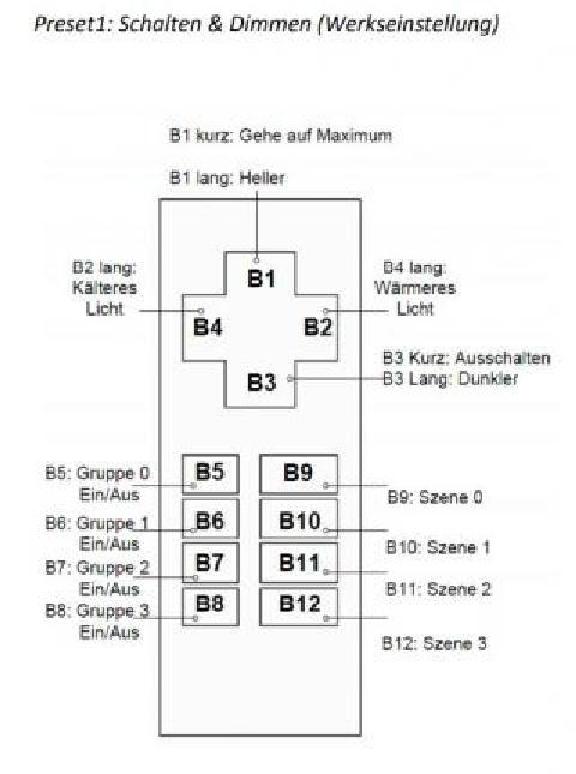

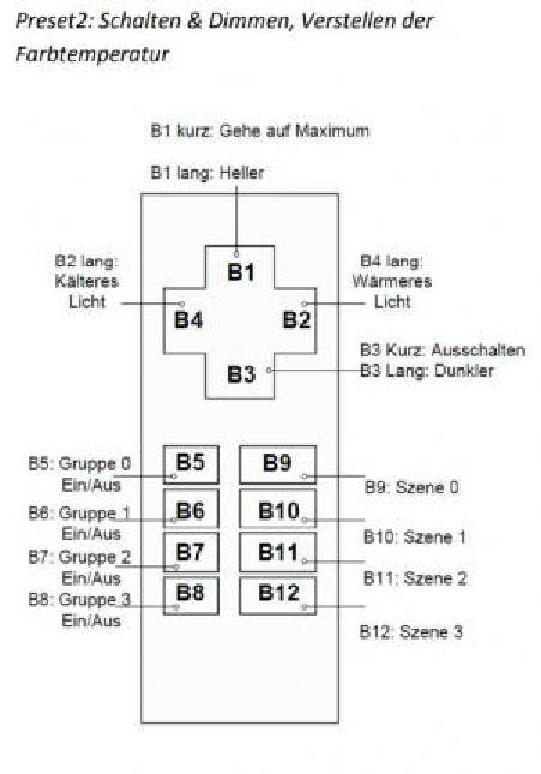

The remote control features 12 buttons. Each button can be freely assigned different functions. In addition, you can assign up to four effective ranges with individual functions to each button. An individual switching behavior can be set for each button (for example, short / long push button, toggle, stairways function). The configuration is easy via the DALI-Cockpit software tool.

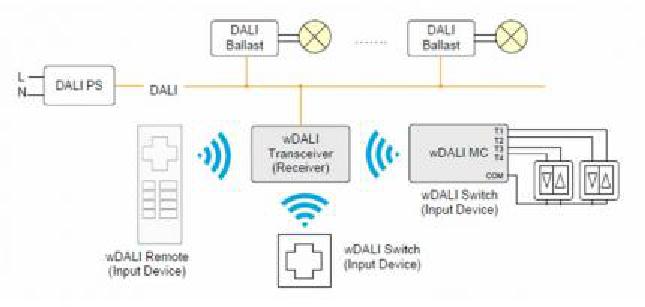

The transceiver wDALI remote is supplied via the DALI line so that no additional connection is needed. Multiple transceivers can be used on the same DALI signal line.
Downloads & Documents
Login
Electrical data
| operating frequency: | 0/50-60 Hz |
|---|---|
| through wiring: | no |
| rated voltage: | Batterie V |
| conformity: | CE |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| protection type: | IP20 |
| mounting: | flush mounting |
| environment temperature from: | -10 °C |
| environment temperature to: | 50 °C |
Photometric data
| color: | white |
|---|---|
| interface: | DALI |
| solar panel: | no |
Logistic data
| item category: | light management |
|---|
Dimensions & packaging
| EAN | 9010342010972 |
|---|---|
| Weight | 90 g |
