Lunatone pushbutton module DALI-2 Switch Cross RAL9010 pure white instances activated – 86459793-W-2-INT
Lunatone
Lunatone pushbutton module DALI-2 Switch Cross RAL9010 pure white instances activated – 86459793-W-2-INT
Product number:
86459793-W-2-INT
Shipping in 14 day(s)
€127.32
(20% saved)
€101.85
Content:
1 Stück
Prices incl. VAT plus shipping costs net €85.59
Product information "Lunatone pushbutton module DALI-2 Switch Cross RAL9010 pure white instances activated – 86459793-W-2-INT"

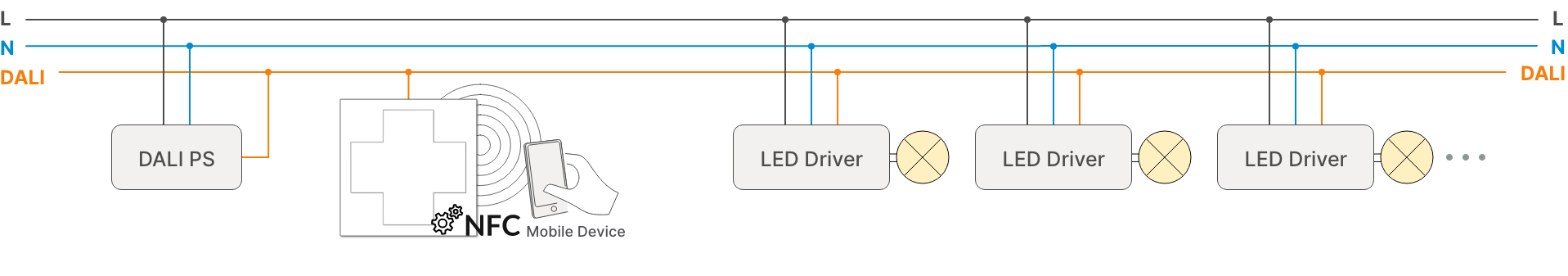

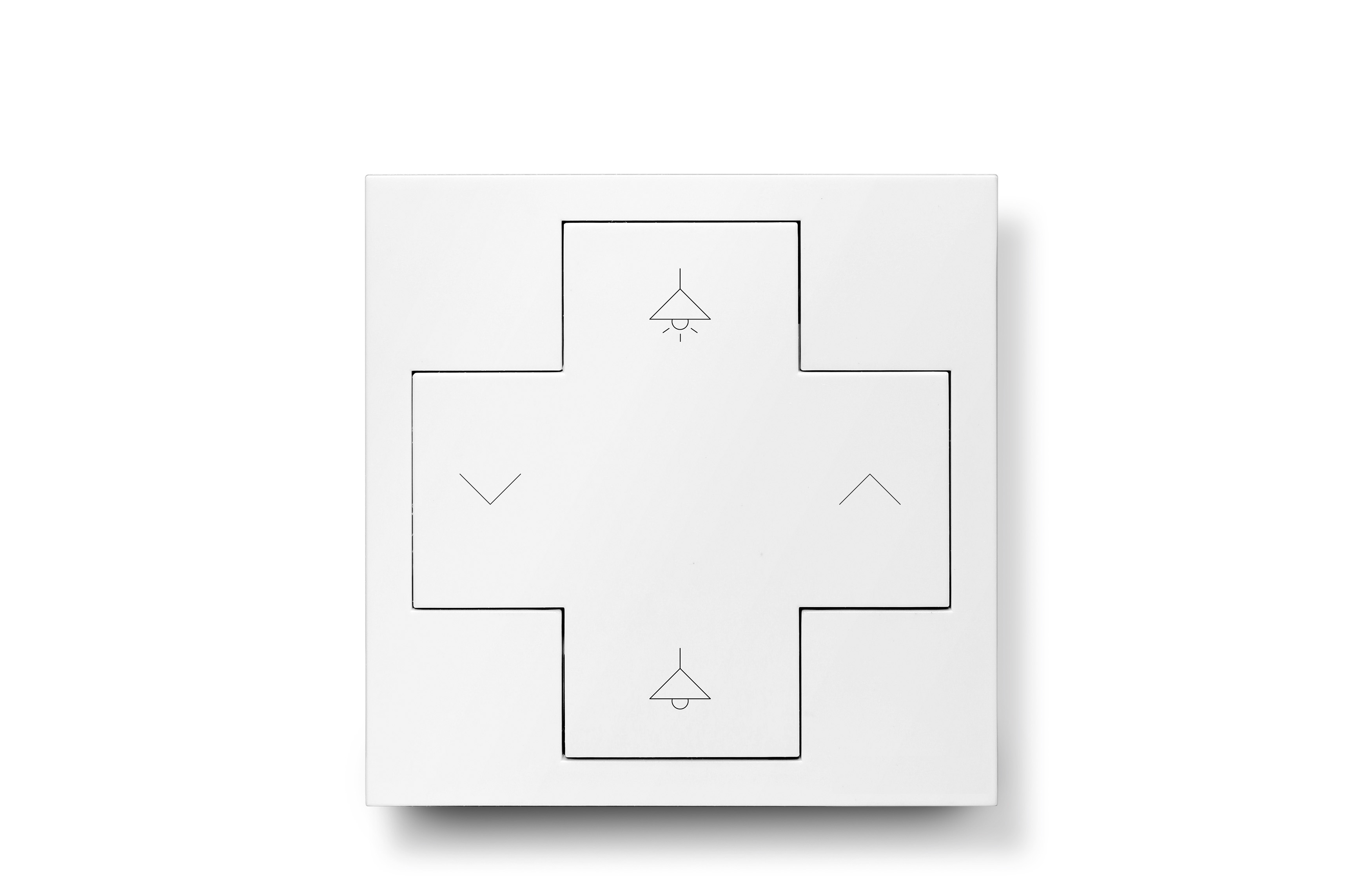

Pushbutton module with four programmable buttons. With the DALI Cockpit Software, as well as an NFC-ready smartphone and the Lunatone NFC app, each button can be individually configured with target address, button behaviour and DALI commands. Besides the standard functions, dimming, switching, scene recall, etc., predefined macros such as setting the colour temperature, dynamic scenes and sequences as well as user defined command lists are supported. The devices can be ordered with predefined or custom symbols. The devices support DALI-2 and can be set to “Instance Mode”, enabling the communication with higher-level building management systems, such as WAGO, Beckhoff etc.
Downloads & Documents
Login
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
Photometric data
| color: | white |
|---|---|
| solar panel: | no |

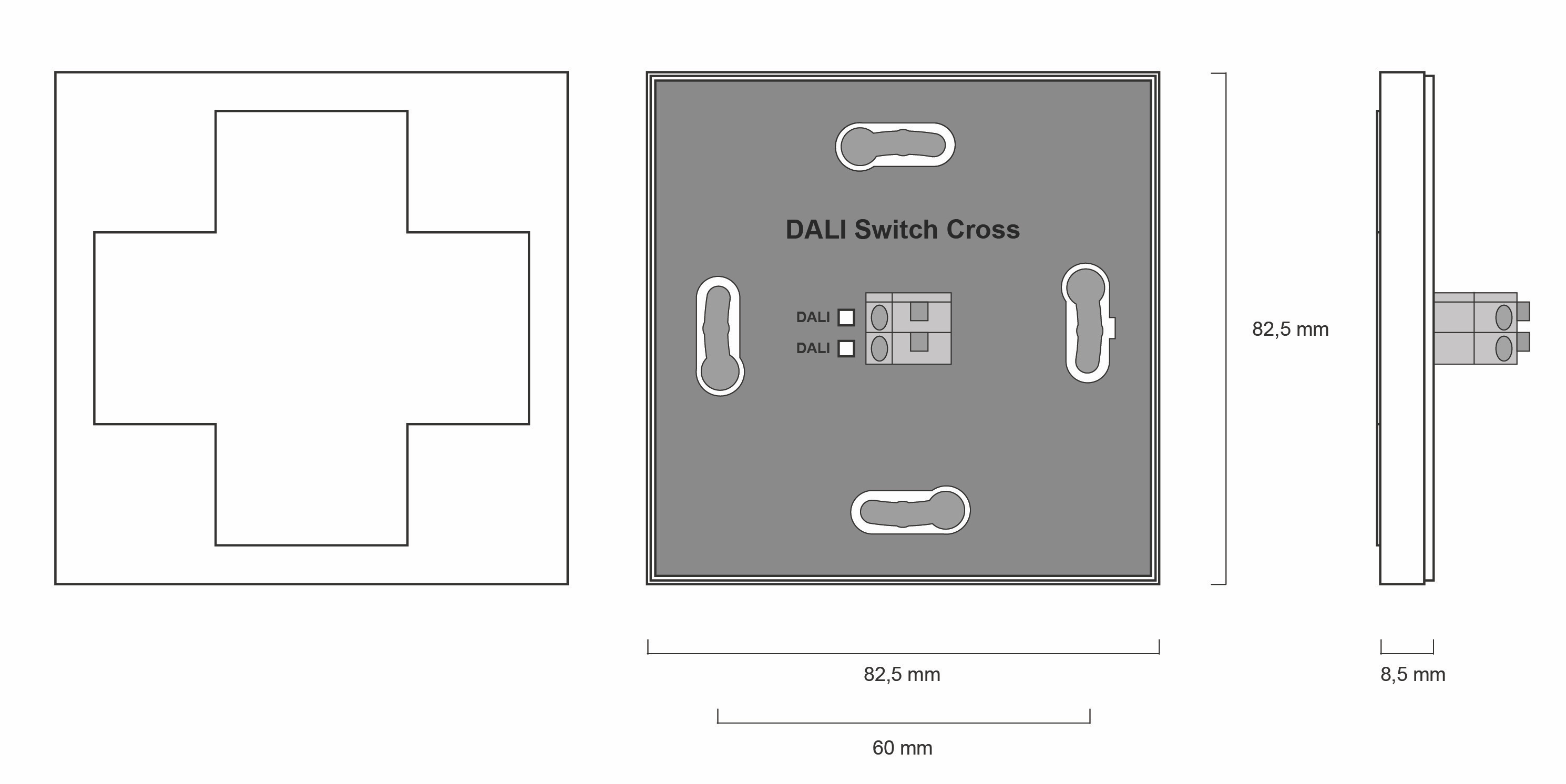

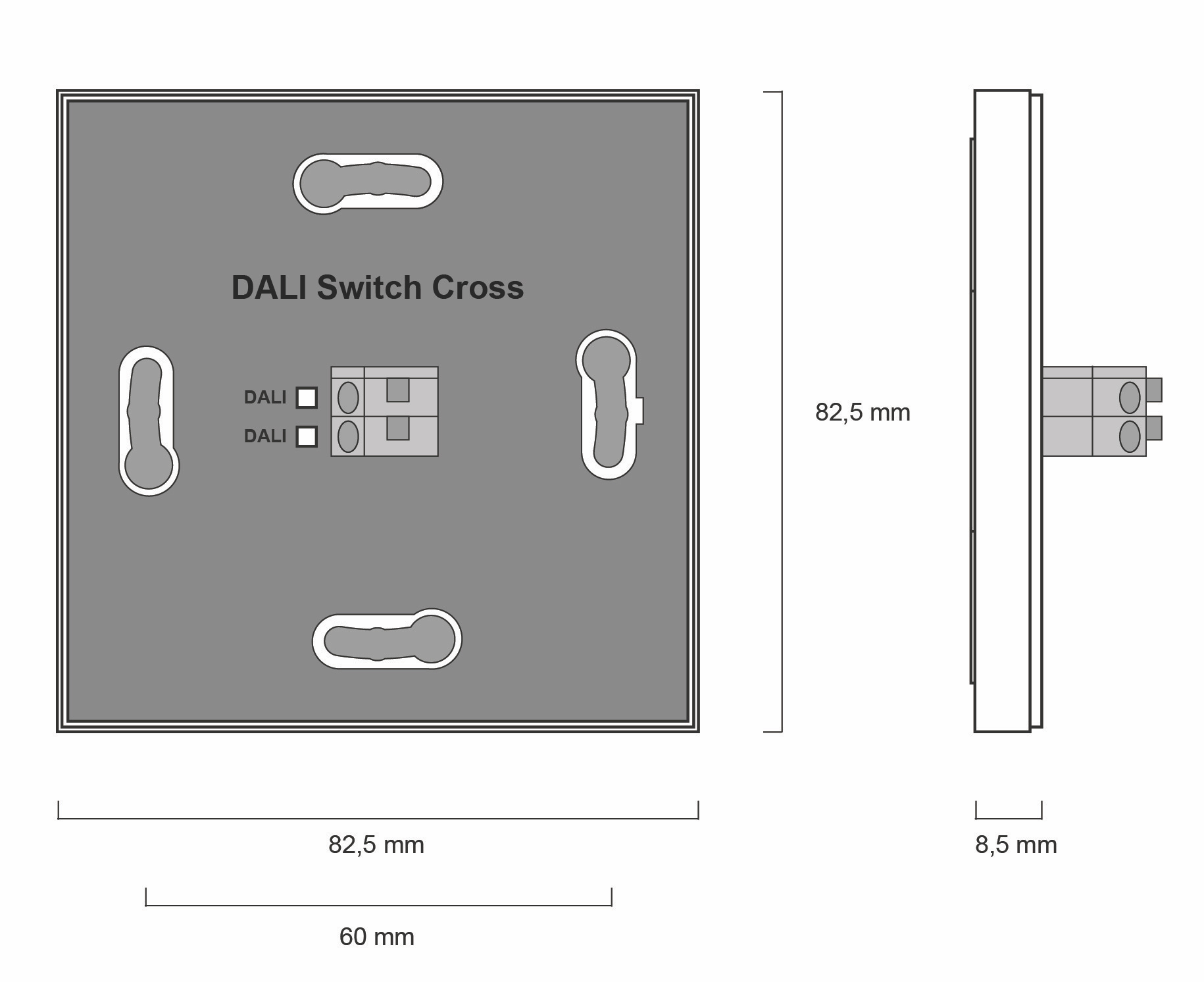

Dimensions & packaging
| EAN | 9010342010224 |
|---|---|
| Length | 82 mm |
| Width | 82 mm |
| Height | 85 mm |
| Weight | 68 g |
