Lunatone sensor DALI-2 CS Corridor Integration IP65 – 88793325-INT-IP65
Lunatone
Lunatone sensor DALI-2 CS Corridor Integration IP65 – 88793325-INT-IP65
Product number:
88793325-INT-IP65
Shipping in 14 day(s)
€86.06
Content:
1 Stück
Prices incl. VAT plus shipping costs net €72.32
Product information "Lunatone sensor DALI-2 CS Corridor Integration IP65 – 88793325-INT-IP65"

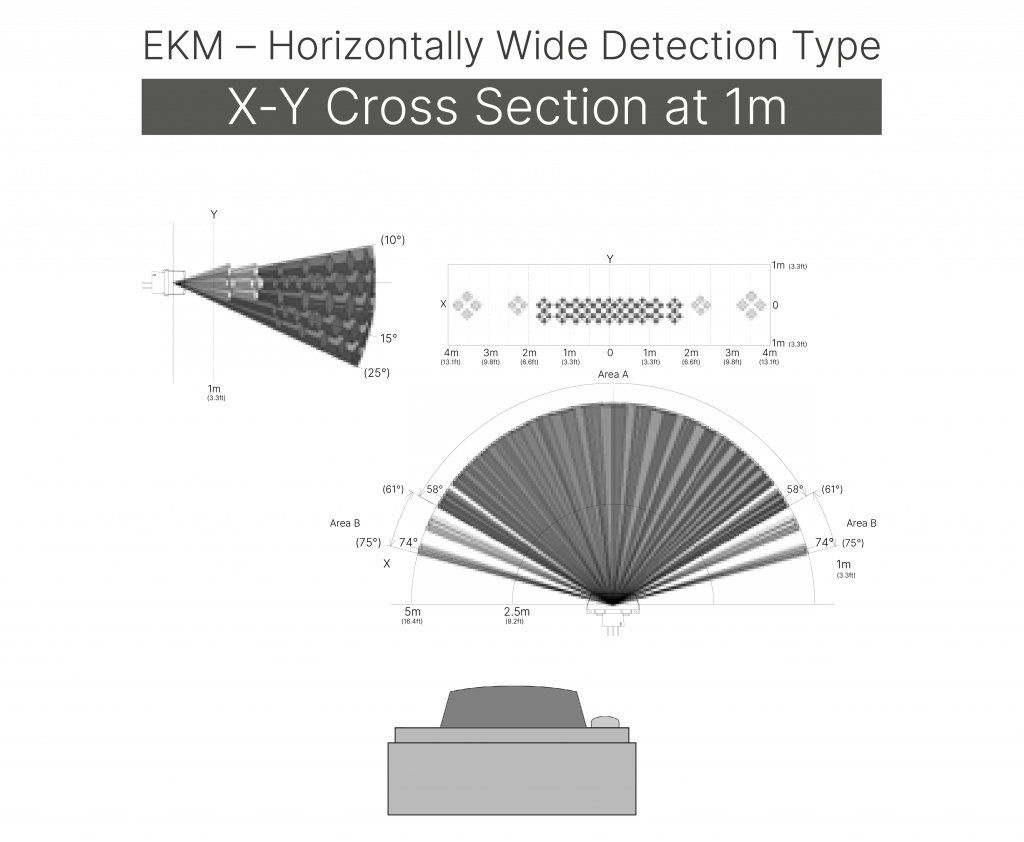

DALI-2 CS Corridor Integration IP65 – horizontal detection angle for movement, light; Constant light control; instance mode for Integration with central control units; outdoor use IP65DALI-2 CS Corridor IntegrationCompact DALI-2 sensor module for Integration in systems with central control unitssensor for motion detection (PIR) & light intensityDue to the horizontal detection angle (150 °), the sensor is particularly suitable for wall mounting, e.g. in corridors.The module gathers measurements for a building management system (instance mode) – (DALI-2 CS Master, WAGO, Beckhoff, etc.).The measured values can either be queried or they can automatically trigger events. This functionality is implemented via DALI-2 instances. The DALI-2 CS Corridor Integration can be set accordingly in the DALI Cockpit Software.Multiple sensors can be used within one system.The device is powered directly by the DALI bus.It is available in two different versions: for indoor and outdoor use (IP65)
Downloads & Documents
Login
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| material: | plastic |
| mounting: | mounting holes |
Photometric data
| sensor: | yes |
|---|---|
| solar panel: | no |

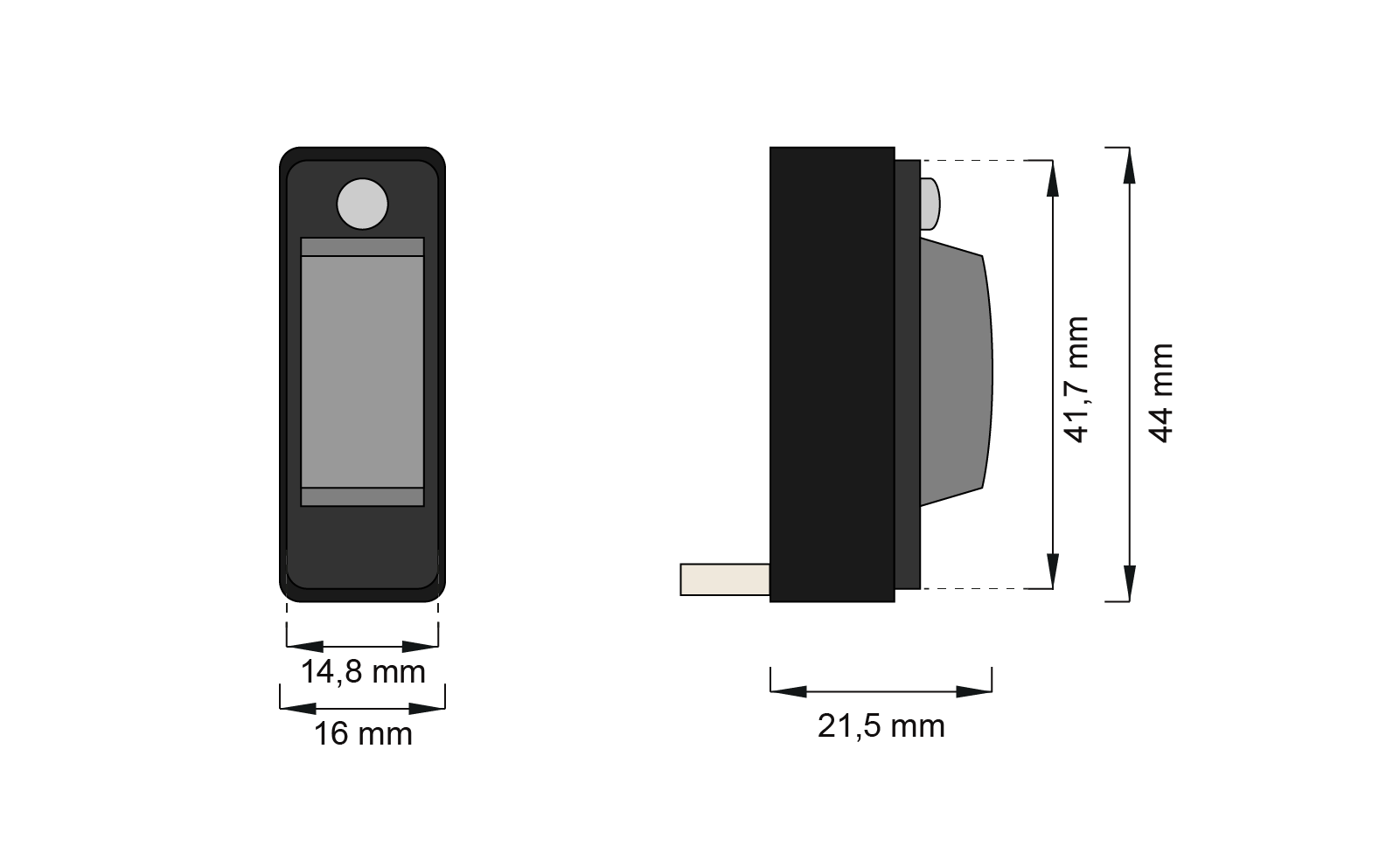

Dimensions & packaging
| EAN | 9010342013546 |
|---|---|
| Length | 44 mm |
| Width | 16 mm |
| Height | 22 mm |
| Weight | 15 g |
