Lunatone sensor DALI-2 CS Mini RAL 9016 traffic white – 86457244-W16
Lunatone sensor DALI-2 CS Mini RAL 9016 traffic white – 86457244-W16
Shipping in 14 day(s)
€92.47
Prices incl. VAT plus shipping costs net €77.71
Product information "Lunatone sensor DALI-2 CS Mini RAL 9016 traffic white – 86457244-W16"
DALI-2 CS Mini – sensor module (motion/brightness), presence sensor 2.5m, constant light control, white
DALI-2 CS Mini
Compact sensor module with integrated motion detection (PIR), light intensity measurement and light control unit.

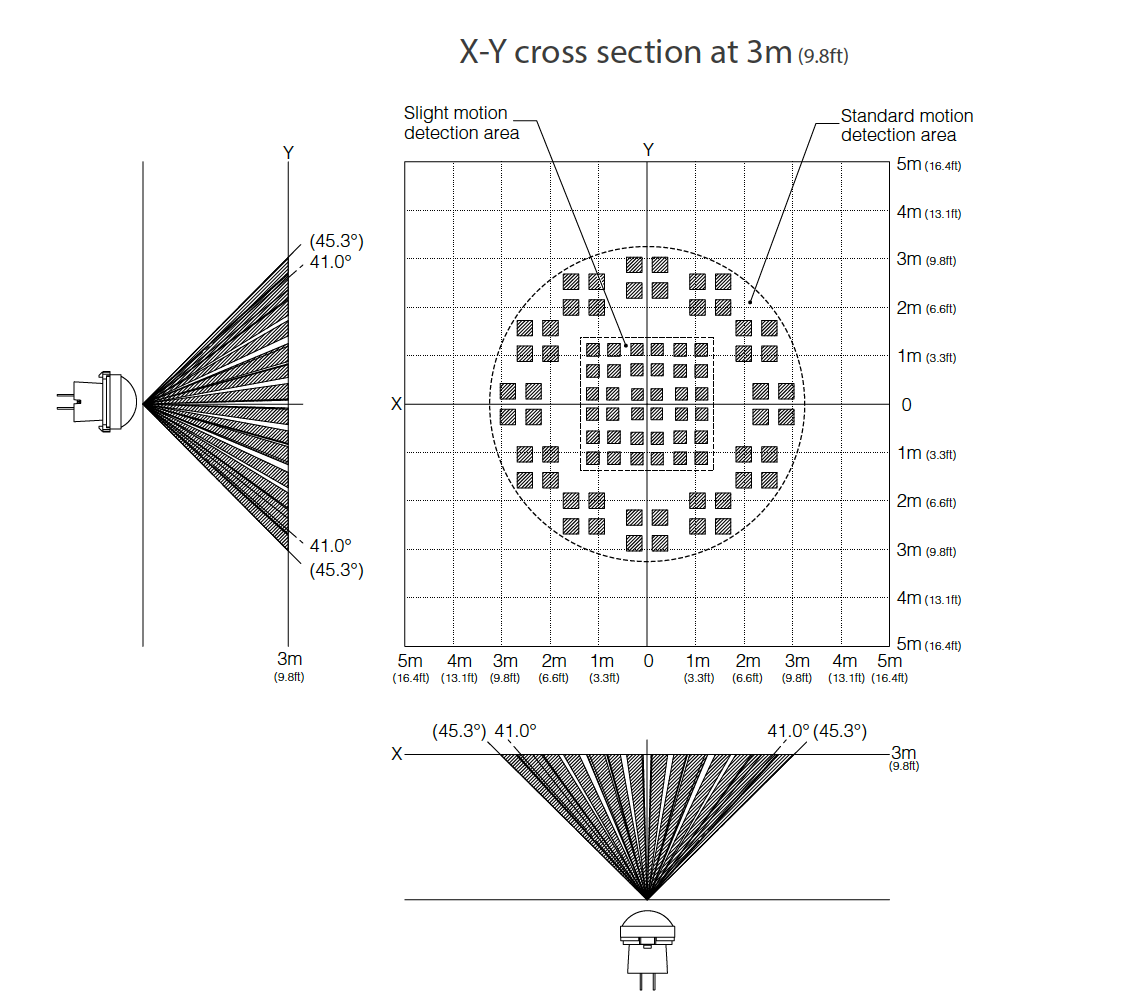

In addition to the standard detection in the outer area, DALI-2 CS Mini has a more sensitive inner detection area for the detection of minor movements.
DALI-2 CS Mini can be configured with the DALI Cockpit Software to send various DALI commands upon motion detection to either the entire DALI system, groups or individual addresses.
The module also contains a light sensor to deactivate motion detection when there is sufficient lighting. Activating the integrated light control unit enables DALI constant light control in a simple manner.
Several sensors can be used in a group; the sensors are synchronised automatically.
The device is powered directly by the DALI bus.
It is available in two different versions: for indoor and outdoor use (IP65), as well as two different colors: black and white (RAL9016)
Downloads & Documents
Login
Electrical data
| conformity: | CE |
|---|
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | round |
| protection type: | IP20 |
| material: | plastic |
| mounting: | mounting holes |
| environment temperature from: | -10 °C |
| environment temperature to: | 50 °C |
Photometric data
| sensor: | yes |
|---|---|
| color: | white |
| interface: | DALI |
| solar panel: | no |
Dimensions & packaging
| EAN | 9010342013546 |
|---|---|
| Length | 283 mm |
| Width | 283 mm |
| Height | 27 mm |
| Weight | 67 g |
