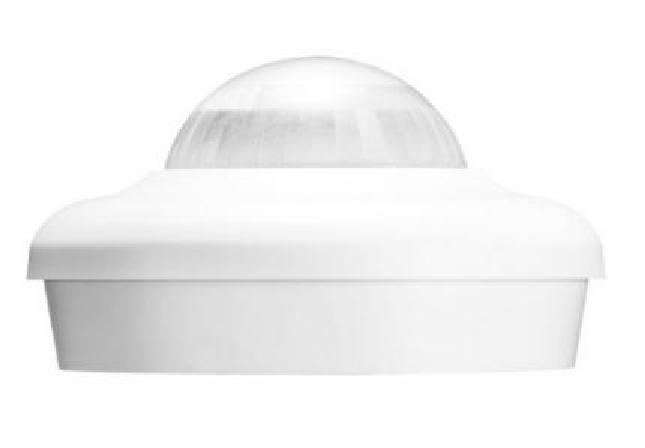

Niko Motion detector Swiss Garde 360 DALI Presence Master A-Comfort AP 24m - 41751

Niko Deutschland GmbH

Niko Motion detector Swiss Garde 360 DALI Presence Master A-Comfort AP 24m - 41751

Product number: 41751

Immediately available

€218.31


Content: 1 Stück

Prices incl. VAT plus shipping costs net €183.45

Product information "Niko Motion detector Swiss Garde 360 DALI Presence Master A-Comfort AP 24m - 41751"

PIR motion detector for DALI systems

The passive infrared motion detector Swiss Garde 360 by  Niko is a master presence detector: It has an increased range for DALI systems (addressable). It also has a constant light control up to 3 zones, 2 secondary zones (ON / OFF) and a multifunctional potential-free relay.

IP54 protection against dust and splash water

The Niko PIR presence detector Swiss Garde 360 is surface-mounted on the ceiling and has IP54 protection, which protects against dust and splash water.

Via an app or remote control, the DALI PIR motion detector can be put into operation quickly, so that no DALI programming device is necessary. It has a detection area of 360 ° and a range of 6 m diameter (presence) or 24 m diameter (movement) at 3 m height. Area extension with a maximum of 10 slave detectors is possible. Slave detectors are automatically detected.

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Electrical data
rated voltage: 230 V
switching power inductive: 1150 W
switching power capacitive: 350 W
switching power ohmic: 2300 W
Casing
ballproof: no
protection type: IP54
mounting: surface mounting
environment temperature from: -5 °C
environment temperature to: 50 °C
Photometric data
sensor: yes
detection angle: 360 °
color: white
Logistic data
item category: sensors
Dimensions & packaging
EAN 3505100417514
Height 64 mm
Weight 280 g
