Osram LED-Driver OT 100/120-277/700 P5 - 4052899259065
Osram LED-Driver OT 100/120-277/700 P5 - 4052899259065
Immediately available
€43.08
Prices incl. VAT plus shipping costs net €36.20
Product information "Osram LED-Driver OT 100/120-277/700 P5 - 4052899259065"

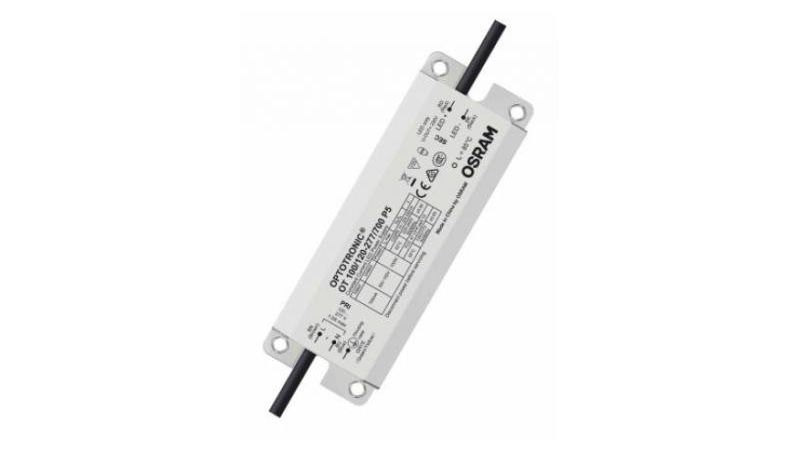

The constant current driver for LED modules OT 100/120-277/700 P5 from the Optotronic Outdoor series from OSRAM is suitable for luminaires with protection class I. Its IP65 protection makes it ideal for outdoor applications such as street and urban lighting or industrial lighting.
The electronic ballast has a maximum system power of 106 watts. The output current is 700 mA. The input voltage range is between 120 and 277 V.
Thanks to its wide operating temperature range of -40 to + 55 ° C, the LED ECG can be used flexibly. You also benefit from high efficiency and reliability.
The OSRAM LED driver has a high surge protection up to 6kV (L-N) / 6kV (L / N-PE). In addition, it has an overtemperature protection. With 80,000 hours, it has a long life.
Downloads & Documents
Login
Electrical data
| number of channels: | 1 |
|---|---|
| output current: | 700 |
| operating mode: | constant current |
| rated voltage: | 120-277 V |
| lifetime: | 80000 h |
Casing
| fire protection: | no |
|---|---|
| form type: | linear |
| protection type: | IP65 |
| material: | metal |
| mounting: | surface mounting |
| protection class: | I |
Photometric data
| color: | white |
|---|---|
| lamp type: | LED |
Logistic data
| item category: | LED drivers |
|---|

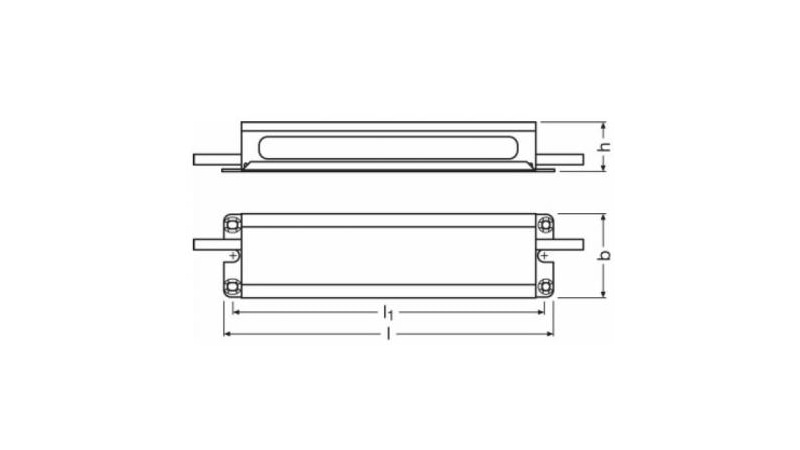

Dimensions & packaging
| EAN | 4052899259065 |
|---|---|
| Length | 168 mm |
| Width | 60 mm |
| Height | 39 mm |
| Weight | 665 g |
