Osram LED-Driver OT FIT 30/220-240/700 CS S MINI - 4062172013420
Inventronics Europe BV
Osram LED-Driver OT FIT 30/220-240/700 CS S MINI - 4062172013420
Product number:
4062172013420
Shipping in 7 day(s)
€9.97
Prices incl. VAT plus shipping costs net €8.38
Product information "Osram LED-Driver OT FIT 30/220-240/700 CS S MINI - 4062172013420"

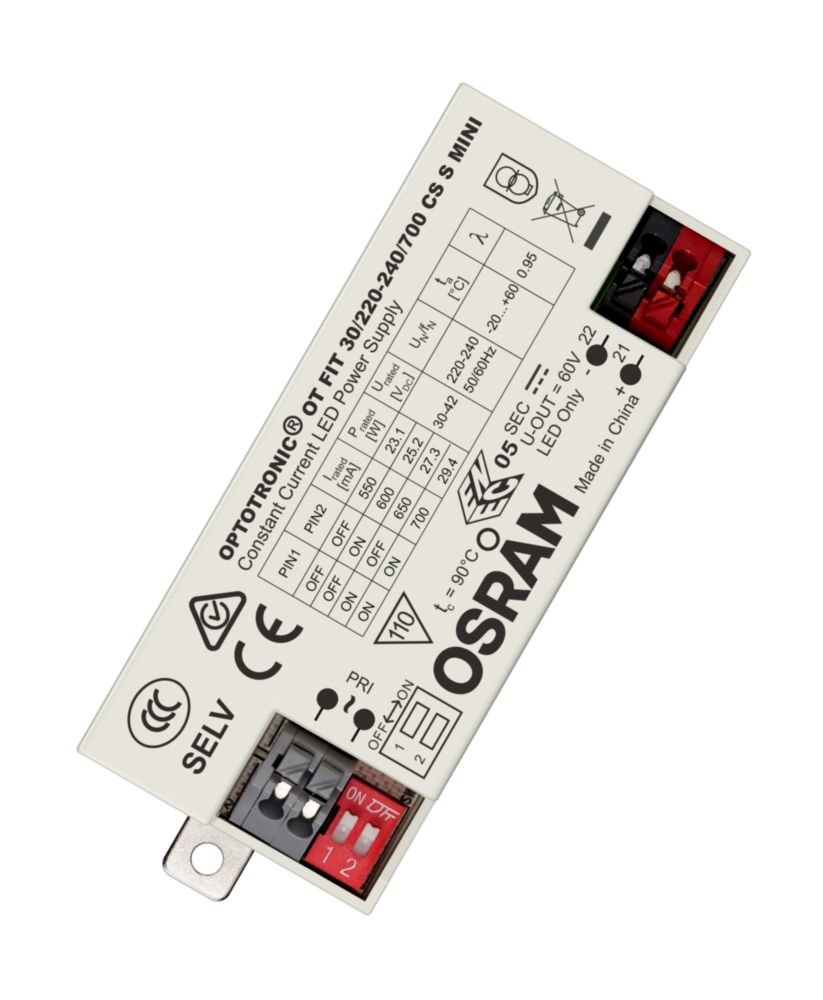

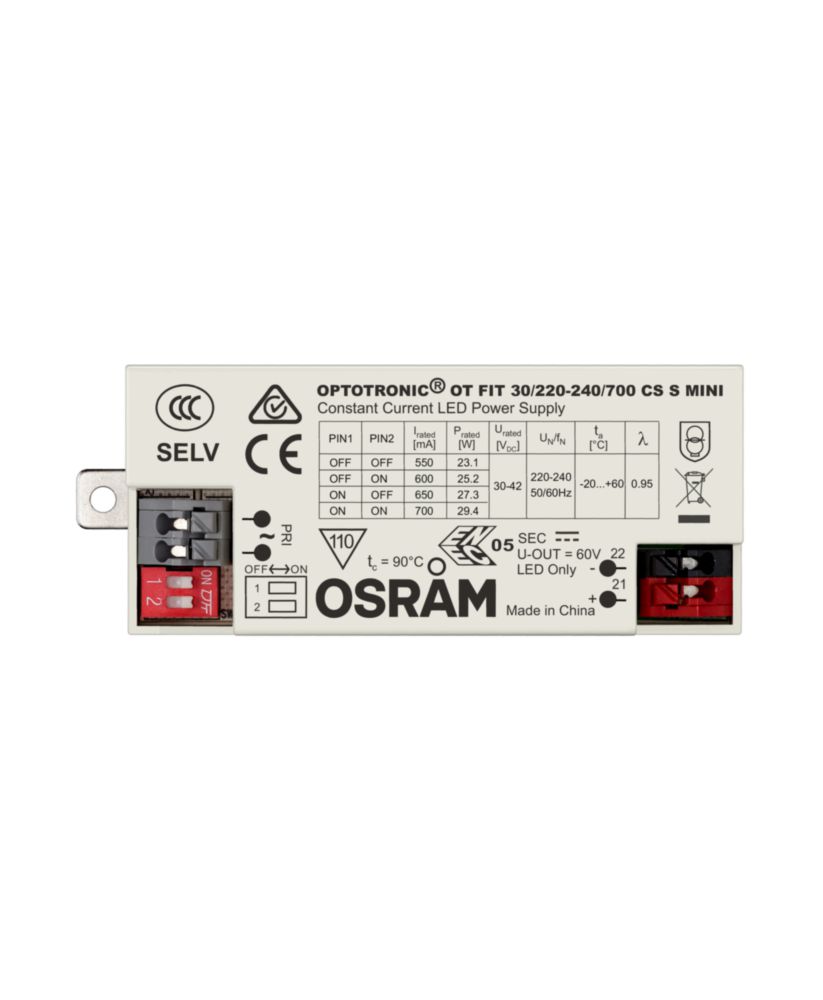

Discover the high-quality OT FIT 30/220-240/700 CS S MINI LED driver, ideal for linear and wide-area applications. With its outstanding efficiency and long service life, this driver is the perfect choice for your lighting requirements.
- Product name: OT FIT 30/220-240/700 CS S MINI
- EAN: 4062172013420
- Insulation: SELV
- Input voltage AC: 198...264 V
- Input voltage DC: Not relevant
- Nominal output power: 16.5...29 W
- Nominal output voltage: 30...42 V
- Rated output current: 550, 600, 650, 700
- Power factor [λ]: 0.91C...0.95
- Inrush current: 13.4 A
- Max. Number of ECGs on 16 A (B) fuse: 26
- Maximum efficiency: 89
- Ripple (100 Hz): < 3
- Dimming function: Not relevant
- Corridor function: No
- Constant lumen function: No
- DALI-2: No
- Programming interface: n/a
- Programming device: DIPswitch
- Emergency mode: No
- Suitable for emergency lighting: No
- Service life: 50000
- Operating temperature [Tₐ] in °C: -20...+60
- Maximum housing temperature [Tᶜ] in °C: 90
- Protection class: I, II
- Protection class: IP20
- Dimensions (L x W x H): 87 x 35 x 22 mm
- Certificates & approvals: ENEC 05, CCC, CE, RCM
The OT FIT 30/220-240/700 CS S MINI LED driver offers you a reliable and efficient solution for your lighting projects. Thanks to its design, it can be used flexibly. With a maximum efficiency of up to 89% and a low ripple of < 3%, this driver ensures stable and uniform lighting.
The driver can be easily customised to your specific requirements thanks to the simple setting of the rated output currents using a DIP switch. With a service life of 50,000 hours and a robust design, the OT FIT 30/220-240/700 CS S MINI is suitable for long-term use in a variety of environments.
Get this versatile and powerful LED driver and benefit from its outstanding features and certifications that guarantee high quality and safety.
Downloads & Documents
s
Electrical data
| number of channels: | 1 |
|---|---|
| output current: | 550, 650, 700 |
| operating mode: | constant current |
Dimensions & packaging
| EAN | 4062172013420 |
|---|
