Osram LED-Driver OTe 25/220-240/700 PC - 4052899105386
Osram LED-Driver OTe 25/220-240/700 PC - 4052899105386
Immediately available
Accessories
Immediately available
€15.65
Prices incl. VAT plus shipping costs net €13.15
Product information "Osram LED-Driver OTe 25/220-240/700 PC - 4052899105386"

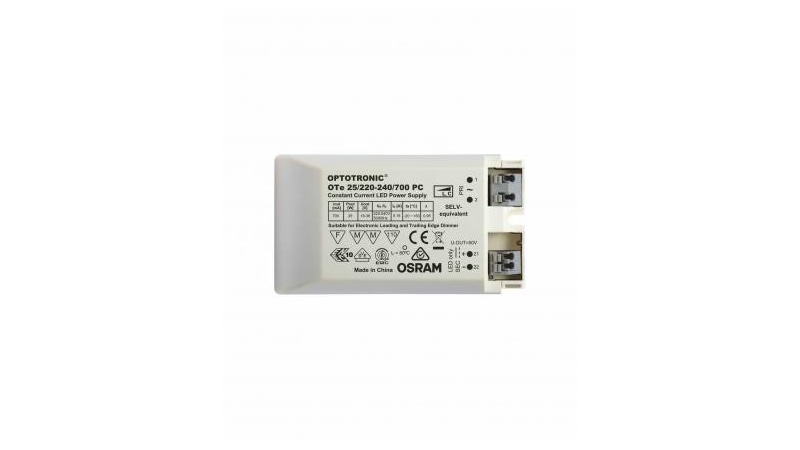

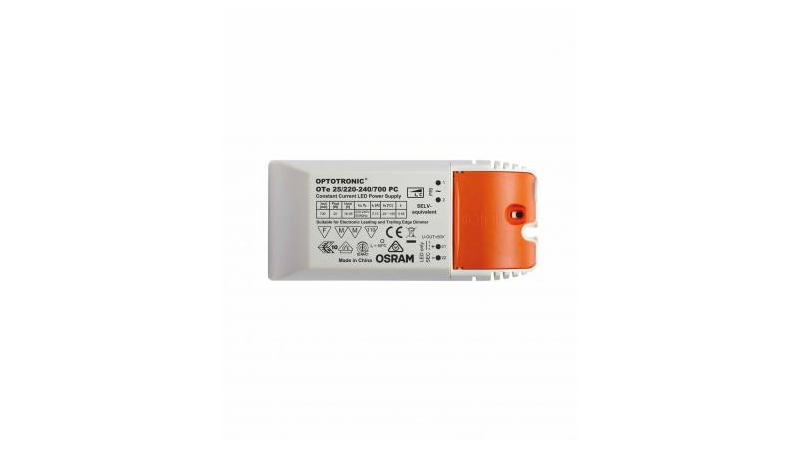

The electronic ballast for LED modules OTe 25/220-240/700 PC from the Optotronic series from OSRAM is suitable for SELV indoor installations. Independent mounting is possible with the optional E-Style cable clamp from OSRAM.
The maximum system power is 25 watts at an output current of 700 mA.
With its compact dimensions of 95 x 53 x 30 mm, the constant current LED driver is also suitable for mounting in very tight spaces. The housing is IP20 protected.
The LED ECG can be dimmed via phase section dimming.
The lifespan of the OSRAM LED driver is 50,000 hours.
Downloads & Documents
Login
Electrical data
| number of channels: | 1 |
|---|---|
| output current: | 700 |
| operating mode: | constant current |
| rated voltage: | 220-240 V |
| lifetime: | 50000 h |
Casing
| form type: | rectangular |
|---|---|
| max housing temperature (tc-max): | 80 °C |
| protection type: | IP20 |
| material: | plastic |
| mounting: | Installation |
| protection class: | I/II |
| environment temperature from: | -20 °C |
| environment temperature to: | 50 °C |
Photometric data
| dimmable: | yes |
|---|---|
| interface: | Phase gating |
Logistic data
| item category: | LED drivers |
|---|
Dimensions & packaging
| EAN | 4052899105386 |
|---|---|
| Length | 95 mm |
| Width | 53 mm |
| Height | 30 mm |
| Weight | 93 g |
