Osram LED-Driver OTi DALI 75/220-240/700 D LT2 UF L - 4052899957046
Inventronics Europe BV
Osram LED-Driver OTi DALI 75/220-240/700 D LT2 UF L - 4052899957046
Product number:
4052899957046
Shipping in 14 day(s)
€58.68
Content:
1 Stück
Prices incl. VAT plus shipping costs net €49.31

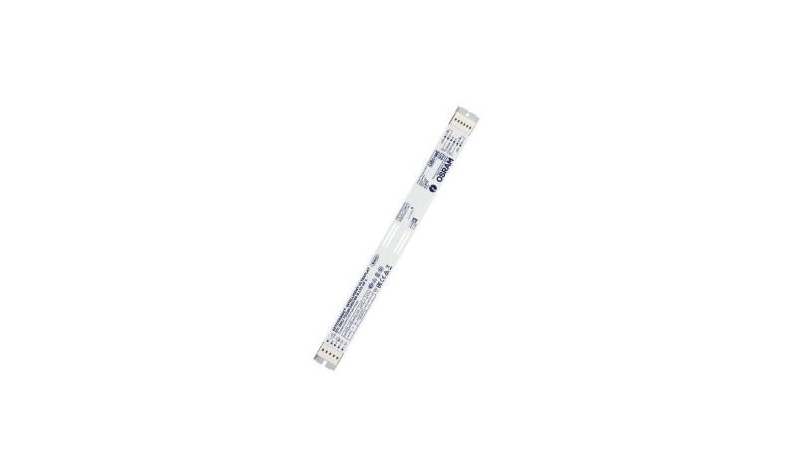

Product information "Osram LED-Driver OTi DALI 75/220-240/700 D LT2 UF L - 4052899957046"
The Osram OTI DALI 75 / 220-240 / 700D LT2UFLVS20 electronic ballast has an ultraflash housing for innovative lighting designs and applications. The programming of the DALI wide range driver is simple and wireless. The Osram OTI DALI 75 / 220-240 / 700D LT2UFLVS20 ECG LED is protected thanks to its thermal management and SmartControl. You can use the Osram OTI DALI 75 / 220-240 / 700D LT2UFLVS20 EVG-LED ideally in standing, pendulum and surface-mounted luminaires. Installation in emergency lighting systems according to IEC 61347-2-13, appendix j is also possible without problems. An energy-efficient touch DIM operation through automatic switch-off with adequate residual light is also guaranteed.
Downloads & Documents
Login
Electrical data
| number of channels: | 1 |
|---|---|
| output current: | 150, 175, 200, 225, 250, 275, 300, 325, 350, 375, 400, 425, 450, 475, 500, 525, 550, 575, 600, 625, 650, 675, 700 |
| operating mode: | constant current |
| rated voltage: | 220-240 V |
| lifetime: | 50000 h |
Casing
| form type: | linear |
|---|---|
| max housing temperature (tc-max): | 75 °C |
| protection type: | IP20 |
| material: | metal |
| protection class: | I |
| environment temperature from: | -25 °C |
| environment temperature to: | 50 °C |
Photometric data
| setting type: | resistors/programming |
|---|---|
| color: | white |
| interface: | DALI |
Logistic data
| item category: | LED drivers |
|---|

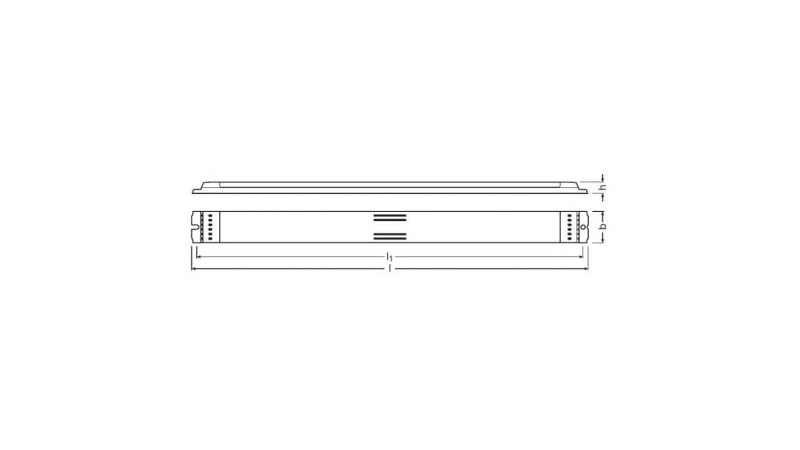

Dimensions & packaging
| EAN | 4052899957046 |
|---|---|
| Length | 360 mm |
| Width | 30 mm |
| Height | 11 mm |
| Weight | 180 g |
