Osram LED-Driver OTi DALI 80/220-240/2A1 LT2 L - 4052899028050
Osram LED-Driver OTi DALI 80/220-240/2A1 LT2 L - 4052899028050
Shipping in 14 day(s)
€44.96
Prices incl. VAT plus shipping costs net €37.78

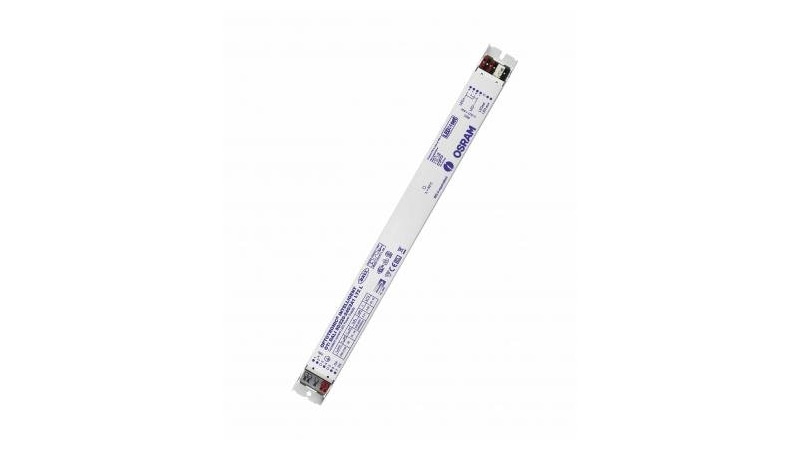

Product information "Osram LED-Driver OTi DALI 80/220-240/2A1 LT2 L - 4052899028050"
The intelligent and flexible electronic ballast for LED modules OTi DALI 80/220-240/2A1 LT2 L from the Optotronic Intelligent series from Osram is suitable for installation in luminaires of protection class I, even in such with adjustable current. The maximum system power is 83 watts.
The LED driver can be dimmed via a DALI or TouchDIM interface.
The DALI technology of the constant-current LED driver provides an easy use in corridors and toilets thanks to its three level Corridor function. The TouchDIM function ensures easy control by means of a pushbutton or a sensor. At sufficient residual light, it switches off automatically and thus saves energy.
The LED ECG is also suitable for use in emergency lighting systems according to IEC 61347-2-13 thanks to its (on and off) DC detection. The Fit for SMARTGRID technology function gives you a feedback on the power consumption and the operating hours. The automatic Constant Lumen Output setting allows the application in buildings according to EPBD / BREEAM / LEED.
The housing of the Osram OTi DALI driver is equipped with IP20 protection. Thanks to thermal management and SmartControl, the system is reliably protected.
Downloads & Documents
Login
Electrical data
| number of channels: | 1 |
|---|---|
| output current: | 1000, 1050, 1100, 1150, 1200, 1250, 1300, 1350, 1400, 1450, 1500, 1550, 1600, 1650, 1700, 1750, 1800, 1850, 1900, 1950, 2000, 2050, 2100 |
| operating mode: | constant current |
| rated voltage: | 220-240 V |
| lifetime: | 50000 h |
Casing
| max housing temperature (tc-max): | 80 °C |
|---|---|
| protection type: | IP20 |
| material: | metal |
| mounting: | Installation |
| protection class: | I |
| environment temperature from: | -25 °C |
| environment temperature to: | 45 °C |
Photometric data
| dimmable: | yes |
|---|---|
| setting type: | resistors/programming |
| interface: | TouchDIM |
Logistic data
| item category: | LED drivers |
|---|

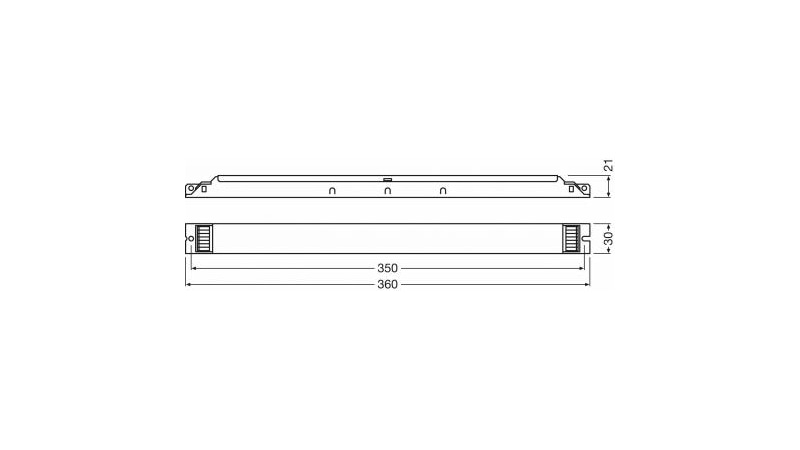

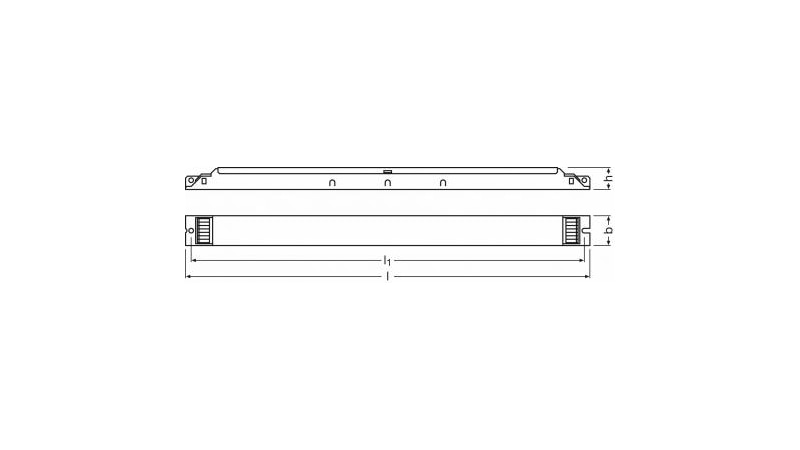

Dimensions & packaging
| EAN | 4052899028050 |
|---|---|
| Length | 360 mm |
| Width | 30 mm |
| Height | 21 mm |
| Weight | 270 g |
