Osram light and presence detector DALI LS/PD LI - 4052899043954
Osram light and presence detector DALI LS/PD LI - 4052899043954
Shipping in 14 day(s)
€105.91
Prices incl. VAT plus shipping costs net €89.00
Product information "Osram light and presence detector DALI LS/PD LI - 4052899043954"

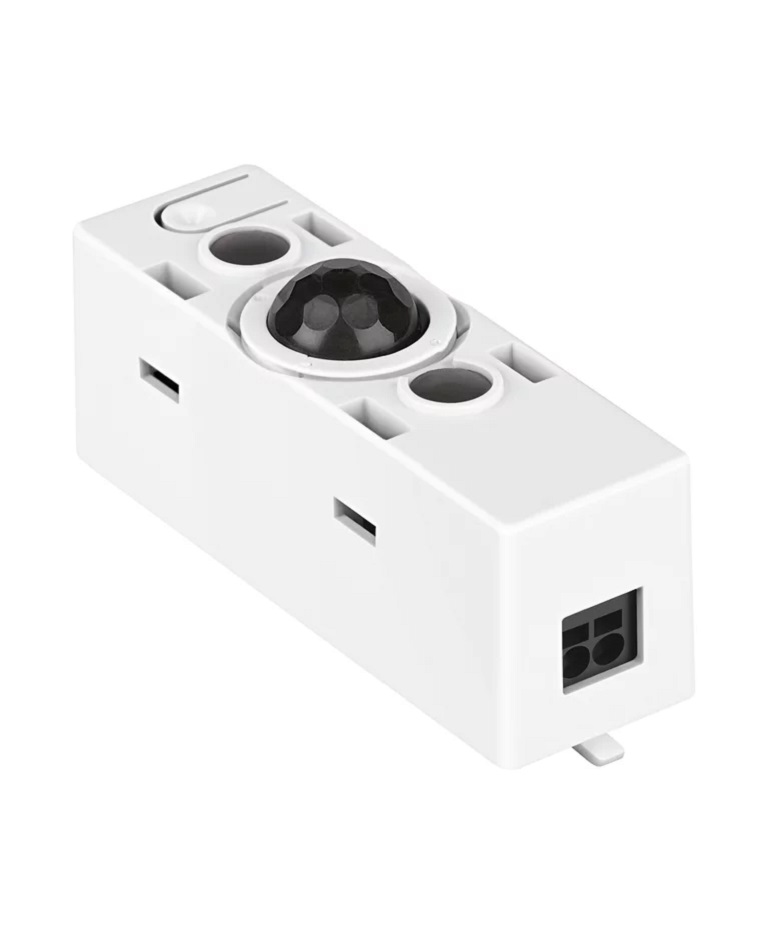

Small DALI infrared light and presence sensor

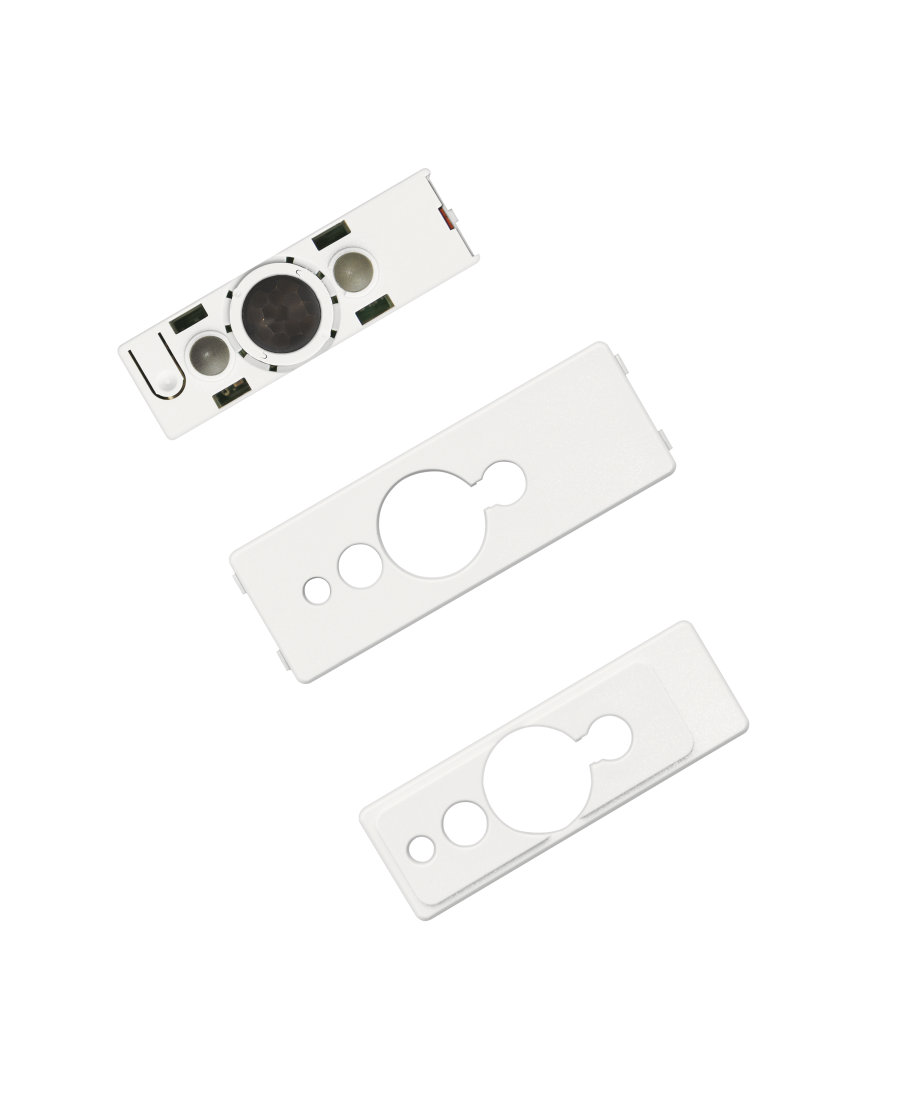

The small DALI infrared light and presence sensor DALI LS / PD LI from OSRAM is ideally suited for installation in industrial and office lighting. Ceiling mounting is also possible using the LS / PD CI KIT or LS / PD AP KIT. The sensor can be mounted at a height of 2 - 5 meters.
Detection range adjustable via built-in shutter
The presence detection range is adjustable via integrated shutter between 40 and 90 °. The working range of the light sensor is 20 ... 800 lx (measured at the sensor). A function display with two-color LED is integrated. The housing is IP20 protected.
Downloads & Documents
Bedienungsanleitung-Osram-Lichtmanagement-Infrarot-Licht-und-Bewegungsmelder-DALI-LS-PD-LI-4052899043954_1592166538_2
Declaration-of-Confirmity-Osram-Lichtmanagement-Infrared-Light-and-Motion-Detector-DALI-LS-PD-LI-4052899043954_1592166538_3
Instruction-manual-Osram-Lichtmanagement-Infrared-Light-and-Motion-Detector-DALI-LS-PD-LI-4052899043954_1592166538_6
Konformitaetserklaerung-Osram-Lichtmanagement-Infrarot-Licht-und-Bewegungsmelder-DALI-LS-PD-LI-4052899043954_1592166538_7
Datasheet-Osram-Lichtmanagement-Infrared-Light-and-Motion-Detector-DALI-LS-PD-LI-4052899043954_1592166538_8
Login
Electrical data
| operating frequency: | 0/50-60 Hz |
|---|---|
| through wiring: | no |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | rectangular |
| protection type: | IP20 |
| material: | plastic |
| mounting: | ceiling mounting, Installation |
| protection class: | II |
| environment temperature from: | -20 °C |
| environment temperature to: | 50 °C |
Photometric data
| response brightness to: | 800 Lux |
|---|---|
| response brightness from: | 20 Lux |
| dimmable: | no |
| detection angle: | 80 ° |
| color: | white |
| interface: | DALI |
| solar panel: | no |
Logistic data
| item category: | LED drivers |
|---|---|
| country of origin: | Hungary |

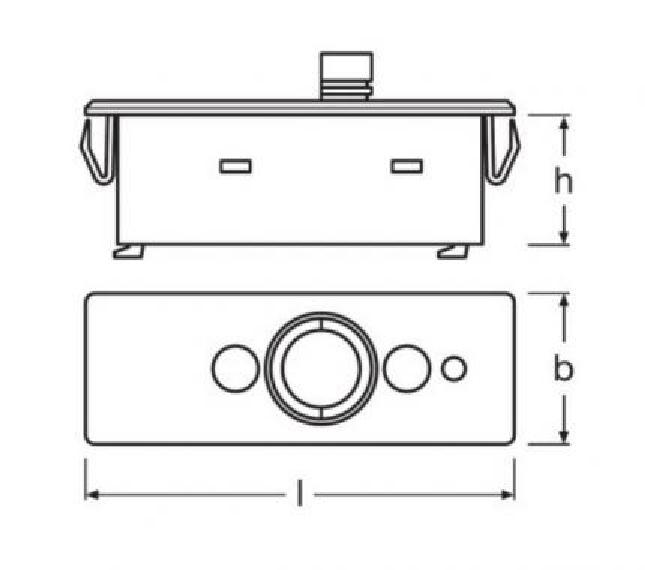

Dimensions & packaging
| EAN | 4052899043954 |
|---|---|
| Length | 48 mm |
| Width | 15 mm |
| Height | 17 mm |
| Weight | 10 g |
